- Description
- Handy Electric Chamfering Tool
- Lightweight design for portable edge beveling application
- Ideal for beveling plate, outer pipe, tube and other profiles
- Designed to bevel stainless steel and carbon steel
- Adjustable to bevel angle from 15° to 45°
- Uses an indexable carbide insert
- Bevel depth up to 9/32" at 45°
- Outer edge pipe beveling > 12" (300mm) minimum diameter
- Built-in chip collection box
- Operates on single phase 230V
- Powerful 1-1/2 horsepower double insulated motor
- Quick release base allows easy access to cutting tip
- 4 mm Allen Wrench
- Straight Cutting Tip
- (2) Hex. Nut M8
- (2) Hex. Socket Set Screws 8 mm x 25 mm
- (3) Pan Head Screws 5 mm x 10 mm
- Torx 15 (T-15) Spanner Wrench
- Chip Collector Box Assembly
- Spare Carbon Brush Assembly (1 Set)
- Manufacturer
- Specifications
- Options/Accessories

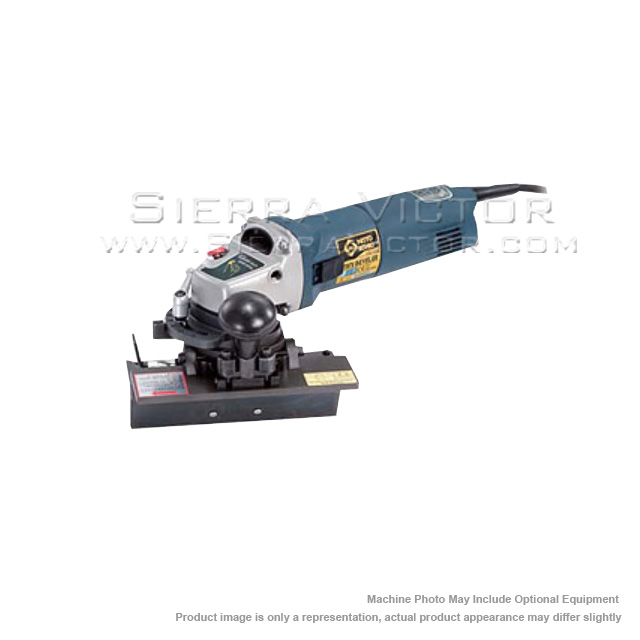

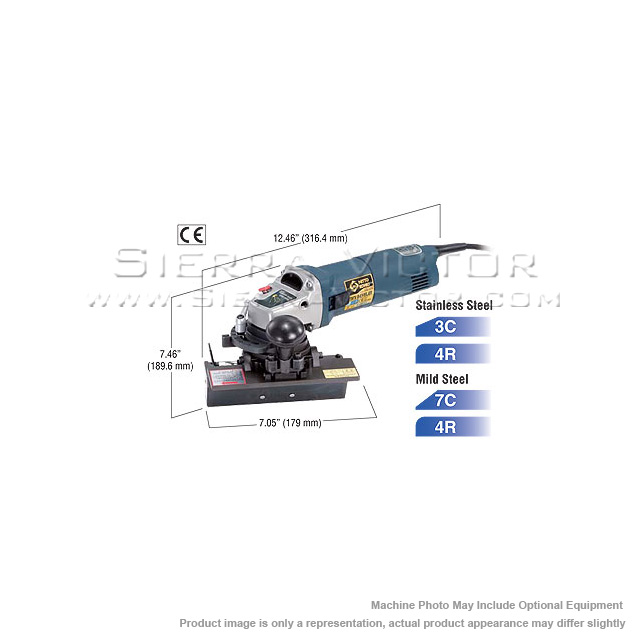

NITTO KOHKI 5/16" Electric Mini Beveler EMB-0307B
ACCESSORIES INCLUDED:
ITEM: 5/16" Electric Mini Beveler
MANUFACTURER: NITTO KOHKI
MODEL: EMB-0307B
Manufacturer:
Nitto Kohki
Machine Type
Machine Category:
Bevelers
Control:
Electrical
Power Supply |
220V - 240V A/C, 50/60 Hz |
Rated Power Consumption |
1010 W |
Rated Current |
4.6 A |
Rated Duty Cycle |
Continuous |
Chamfering Capacity (Mild Steel) |
Up to 5/16” (7 mm) Chamfer or 1/16” (2mm), 1/8” (3 mm), 5/32” (4 mm) Radius |
Chamfering Capacity (Stainless Steel) |
Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius |
Chamfer Angle |
15 - 45 Degrees |
Power Cord Length |
13.1 Feet (4 Meters) |
Weight |
8.6 lbs. |

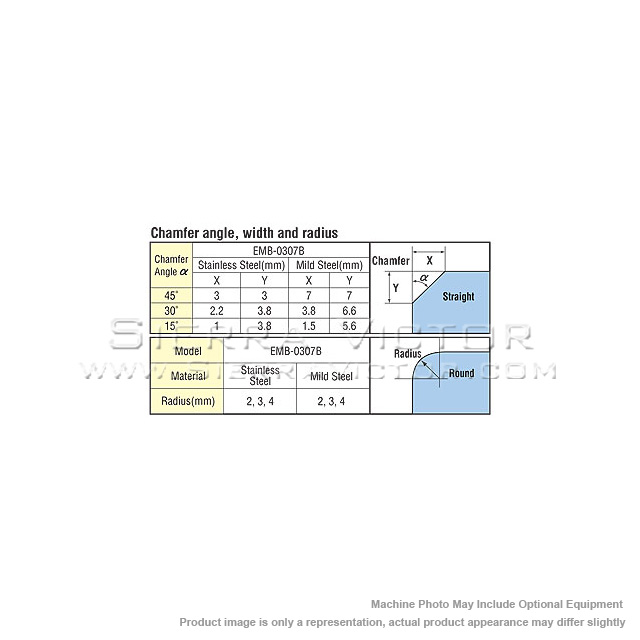

| BEVEL ANGLE, WIDTH AND RADIUS |
| Angle |
EMB-0907B |
|||||
Stainless Steel (mm) |
Mild Steel (mm) |
|||||
A |
B |
C |
A |
B |
C |
|
45° |
3 |
3 |
4.2 |
7 |
7 |
9.9 |
30° |
2.2 |
3.8 |
4.4 |
3.8 |
6.6 |
7.6 |
15° |
1 |
3.8 |
3.9 |
1.5 |
5.6 |
5.8 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
Available Cutting Tips for EMB-0307B
PART #
|
ITEM
|
TV7A019 |
Straight Tip (2 pcs./set) |
TV7A020 |
1/16” (2 mm) Radius Tip (2 pcs./set) |
TV7A021 |
1/8” (3 mm ) Radius Tip (2 pcs./set) |
TV7A022 |
5/32” (4 mm) Radius Tip (2 pcs./set) |
