- Description
- Handy Pneumatic Chamfering Tool
- Lightweight design for portable edge beveling application
- Ideal for beveling plate, outer pipe, tube and other profiles
- Designed to bevel stainless steel and carbon steel
- Adjustable to bevel angle from 15° to 45°
- Uses an indexable carbide insert
- Bevel depth up to 9/32" at 45°
- Outer edge pipe beveling > 12" (300mm) minimum diameter
- Threaded Adapter PT3/8” x NPT 3/8”
- 3 mm Allen Wrench
- 4 mm Allen Wrench
- Straight Cutting Tip
- (2) Hex. Nut M8
- (2) Hex. Socket Set Screw 8 mm x 25 mm
- Torx 15 (T-15) Spanner Wrench
- Manufacturer
- Specifications
- Options/Accessories

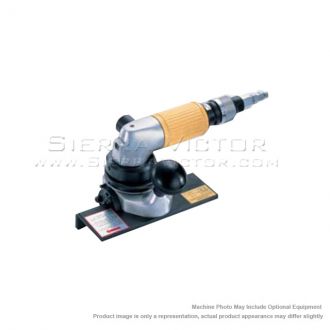

NITTO KOHKI 5/16" Pneumatic Mini Beveler AMB-0307
ACCESSORIES INCLUDED:
ITEM: 5/16" Pneumatic Mini Beveler
MANUFACTURER: NITTO KOHKI
MODEL: AMB-0307
Manufacturer:
Nitto Kohki
Machine Type
Machine Category:
Bevelers
Power Source:
Pnematic/Air
Air Pressure |
85 PSI |
Air Consumption |
31.8 CFM |
Chamfering Capacity (Mild Steel) |
Up to 5/16” (7 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius |
Chamfering Capacity (Stainless Steel) |
Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius |
Chamfer Angle |
15 - 45 Degrees |

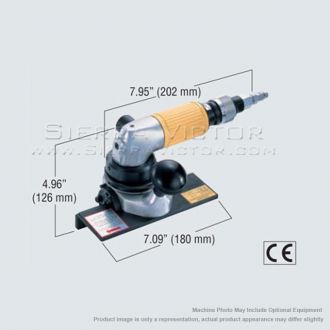

Weight |
6.4 lbs. (2.9 kg) |

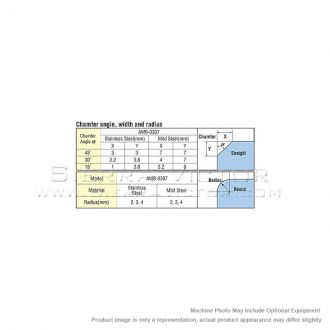

| BEVEL ANGLE, WIDTH AND RADIUS |
| Angle |
AMB-0907 |
|||||
Stainless Steel (mm) |
Mild Steel (mm) |
|||||
A |
B |
C |
A |
B |
C |
|
45° |
3 |
3 |
4.2 |
7 |
7 |
9.9 |
30° |
2.2 |
3.8 |
4.4 |
4 |
7 |
8.1 |
15° |
1 |
3.8 |
3.9 |
2.2 |
8 |
8.3 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
Available Cutting Tips for AMB-0307
PART #
|
ITEM
|
TV7A019 |
Straight Tip (2 pcs./set) |
TV7A020 |
1/16” (2 mm) Radius Tip (2 pcs./set) |
TV7A021 |
1/8” (3 mm ) Radius Tip (2 pcs./set) |
TV7A022 |
5/32” (4 mm) Radius Tip (2 pcs./set) |
