- Description
- Portable magnetic base automatic drilling machine
- Nitto Kohki's Atra Ace boosts productivity in the hole drilling industry.
- Load Sensor: The dual sensing system responds to both drilling and feeding forces on the cutter for the optimum cutting condition.
- Variable Automatic Feed: The feed speed is continuously monitored and updated proportionally to the load on the cutter.
- Cycle Stop: After the cut has finished, a detector responds to the reduction in load and both the drill and the feed motor automatically stop.
- UEA0835-0 pilot pin 5/16" x 1-3/8" DOC
- 3mm allen wrench
- 8mm x 10mm combination spanner
- Chip guard assembly
- Motor side handle
- Sample cutting fluid
- Safety chain
- Molded plastic carrying case
- Manufacturer
- Specifications

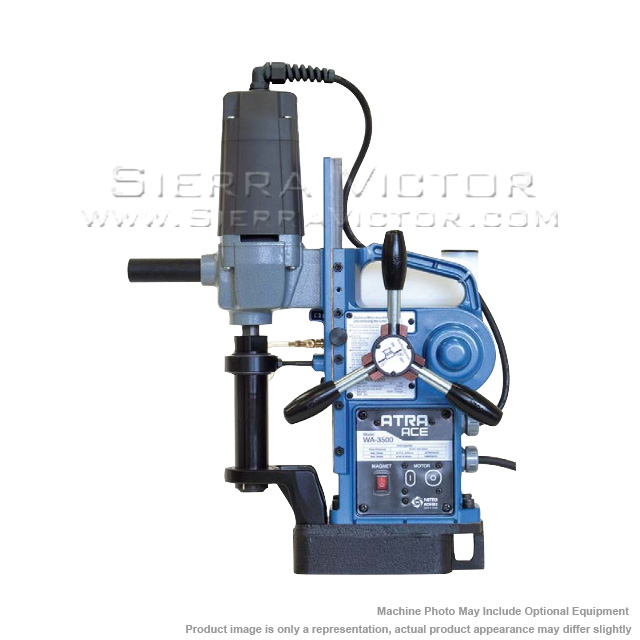

NITTO KOHKI 1-3/8" Portable Automatic Magnetic Drilling Machine WA-3500
ACCESSORIES INCLUDED:
ITEM: 1-3/8" Portable Automatic Magnetic Drilling Machine
MANUFACTURER: NITTO KOHKI
MODEL: WA-3500
Manufacturer:
Nitto Kohki
Machine Type
Machine Category:
Magnetic Drills
Machine Sub-Category:
Portable
Control:
Automatic
Power Source (Single Phase) |
110-120V, AC 50/60Hz |
|
Electric Drill |
Rated Power Consumption (W) |
1,100 |
Rated Current (A) |
10.2 |
|
No Load Speed (rpm) |
950 |
|
Magnet Power Consumption (W) |
34 |
|
Capacity |
Hole Diameter |
1-3/8" max. |
Depth of Cut |
2" max. |
|
Magnet Holding Power |
1,583 lbs. |
|
Magnet Dimensions |
3-5/8" x 8-1/2" |
|
Weight |
44 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
