- Description

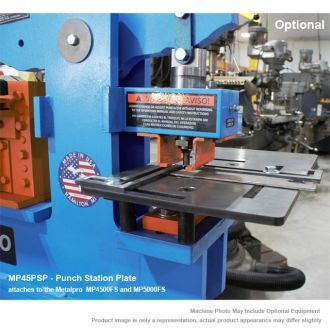

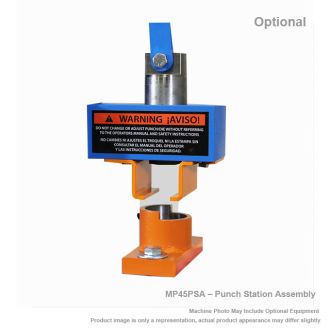

- The machine is ready with die holder, stripper, and punch retaining nut. The punch station can be used with a range of notchers, custom shape punching, and forming operations. The punch ram and retaining nut are machined and heat treated for long life.
- Shear handles flat bar, round, square, and angles in one quick set up. All wear parts and blades made from heat treated, high grade tool steel.
- The large 11 x 16" power cavity delivers 25 tons at the shear. The outboard punching station delivers 45 tons at the punch and is designed to work with a variety of METALpro accessories:

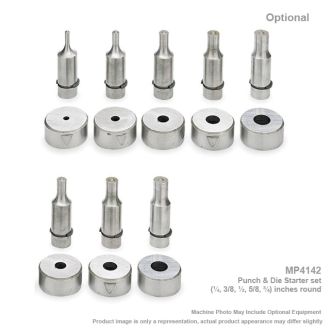

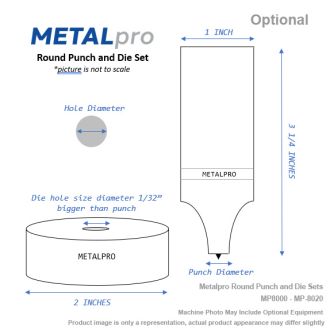

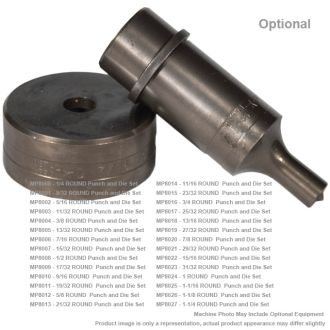

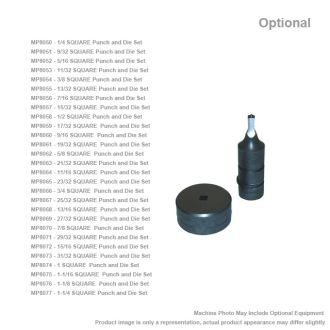

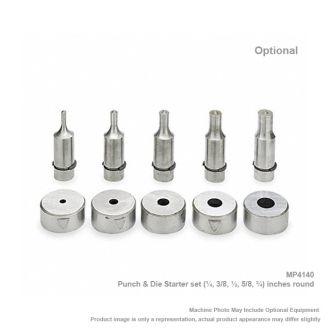

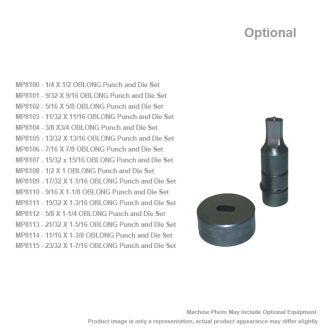

- Round, square, oblong, and custom shaped punches and dies

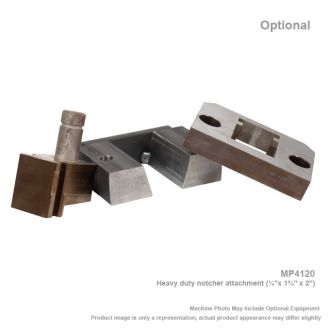

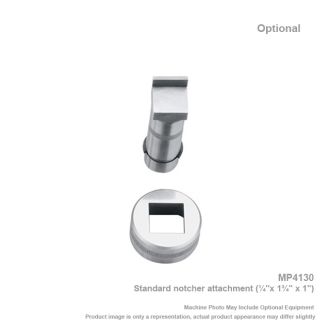

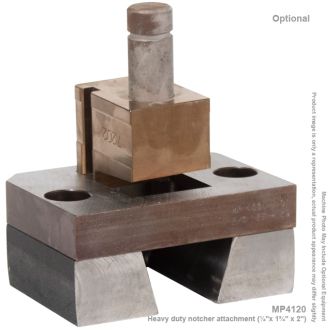

- Heavy duty notcher

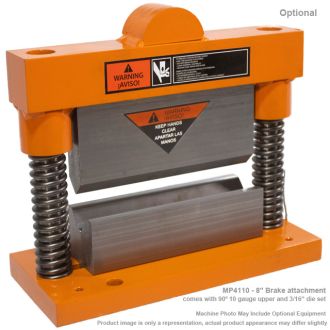

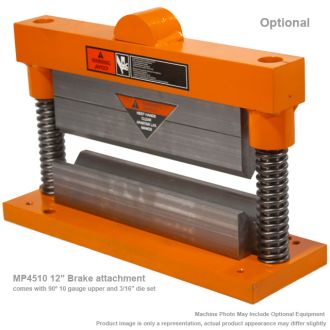

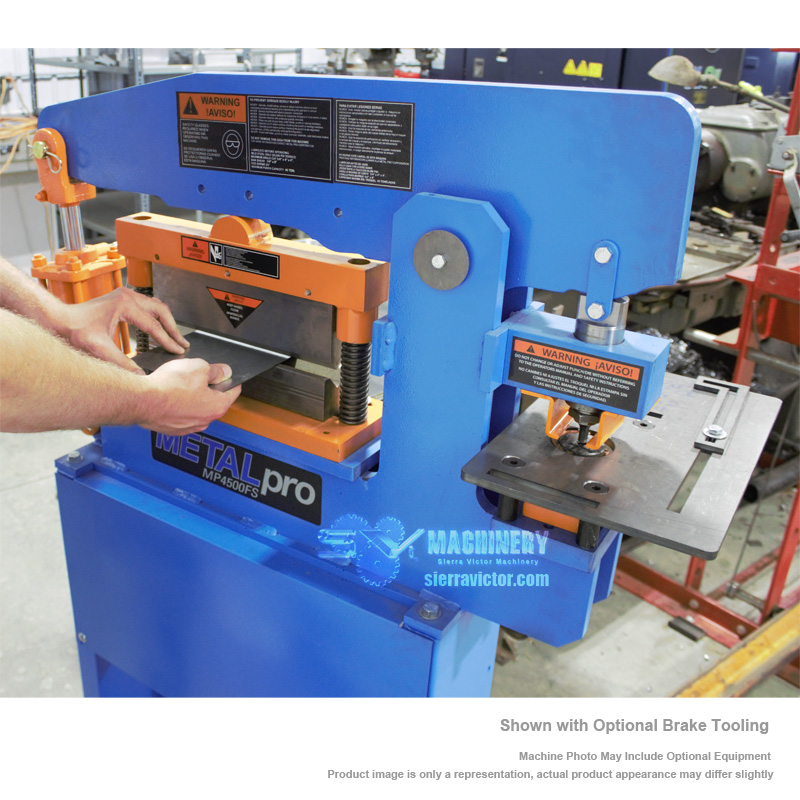

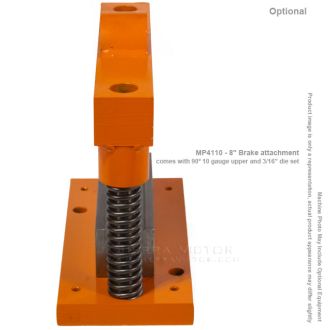

- Brakes

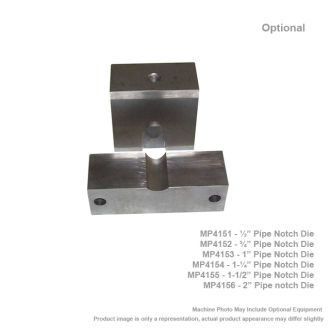

- Pipe notcher
- Wheel kit
- Lower cost alternative to higher priced equipment
- More fabricating capabilities per dollar spent on equipment
- Just as fast and accurate as expensive machines
- Works in any shop – plugs into standard 110V 20 amp outlet
- One year warranty
- Punch capacity of 45 tons
- 3-3⁄4" throat depth
- 2" die holder, punch retaining nut and stripper
- Power cavity with 3-in-1 shear
- Guarding complies with ANSI B11-8 standards
- Meets American National Safety Standards for ironworkers
- Optional brakes and custom tooling sold separately
- All in one ‘fabrication shop’ with capabilities in:
- Punching
- Forming
- Shearing
- Pressing
- Notching
- Pipe notching
- Bending
- MADE IN USA
- Manufacturer
- Attachments
- Specifications
- Options/Accessories

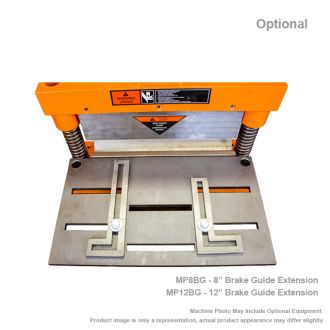

- Optional brakes and custom tooling sold separately - SEE ATTACHMENTS TAB

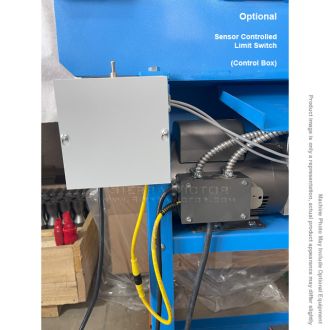

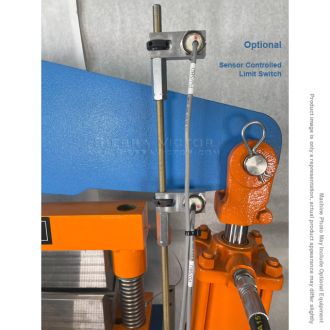

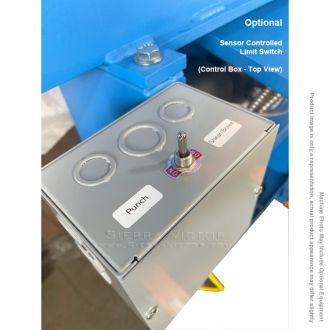

- MP45LS - Limit Switch Kit: The MP45LS is a sensor controlled limit switch that automates your Metalpro Ironworker. The two sensors (one return sensor, and one stop sensor) reads the top and bottom of the arm. The sensors allow for micro adjustments for precise stroke control. This ensures the exact stroke height that you are looking for whether forming/bending, punching or shearing with your Metalpro ironworker.
- Punching/Shearing - Control your stroke height with just one press of the included foot pedal, speeding up your punching and shearing operation, saving you time and money.
- Forming/Bending - The stop and return sensors allow you to form within a quarter of a degree, helping with repeat air bends, taking the guesswork out of it.
- Punching/Shearing - Control your stroke height with just one press of the included foot pedal, speeding up your punching and shearing operation, saving you time and money.
- Custom Freight

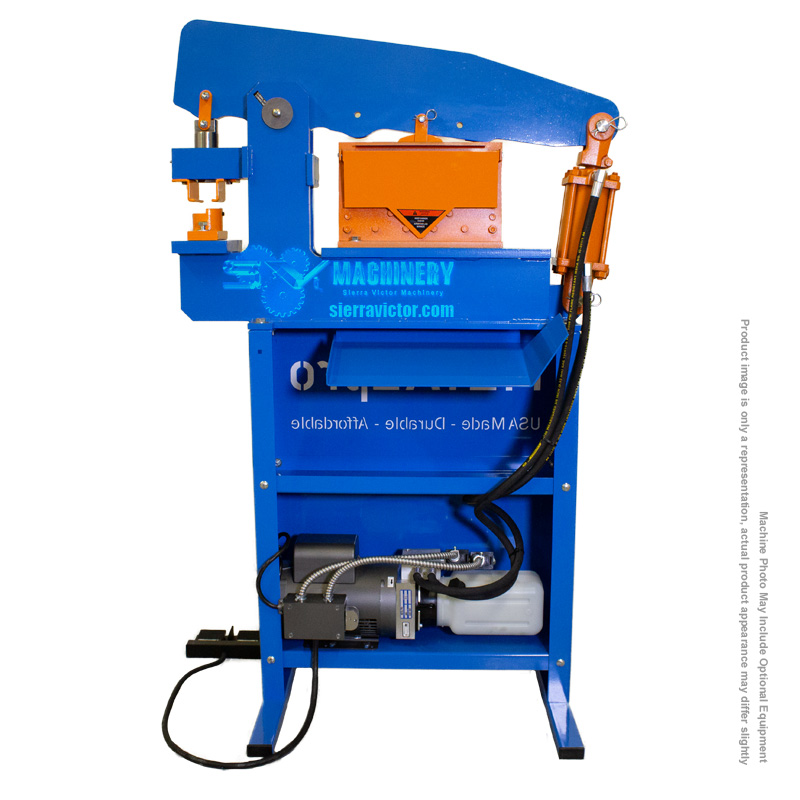

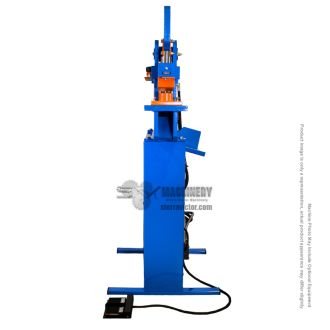

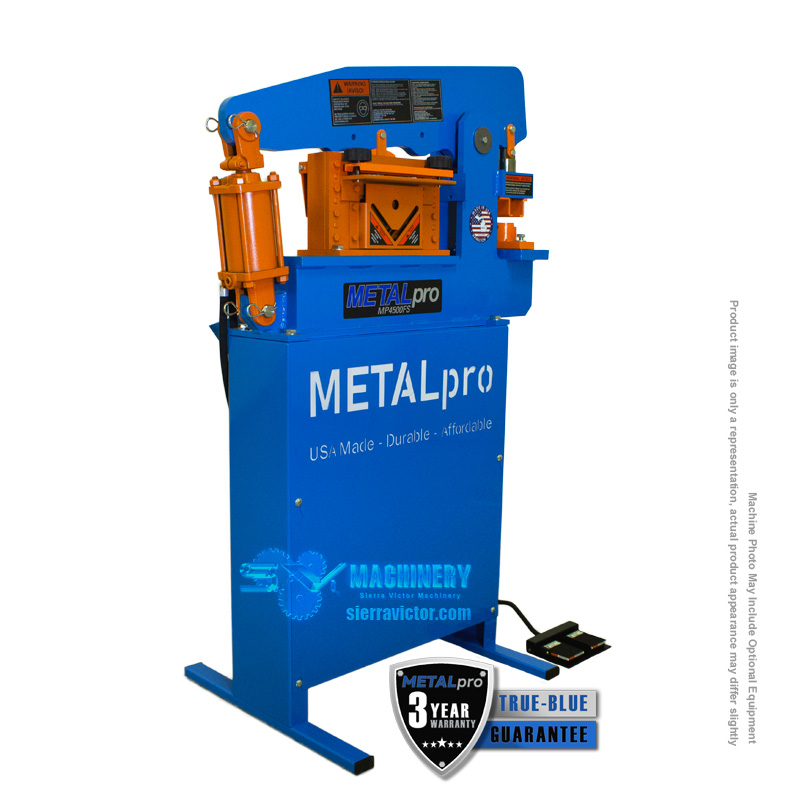

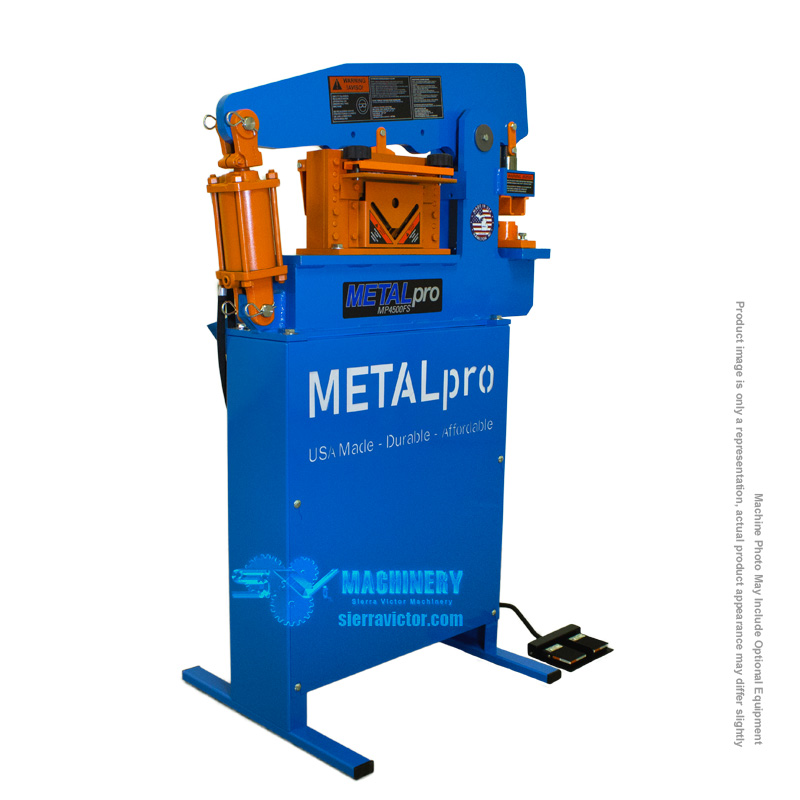

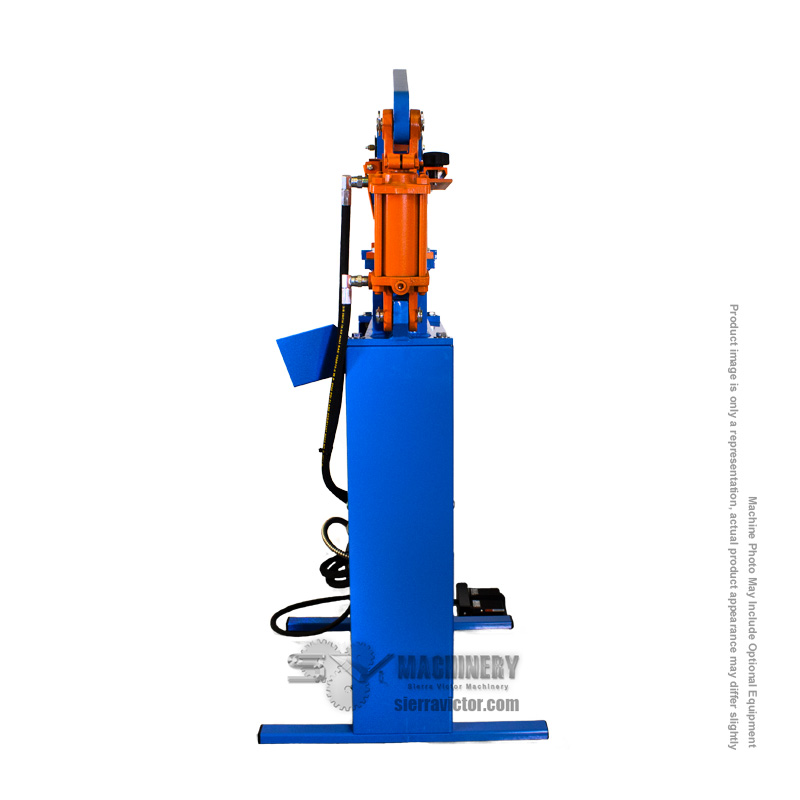

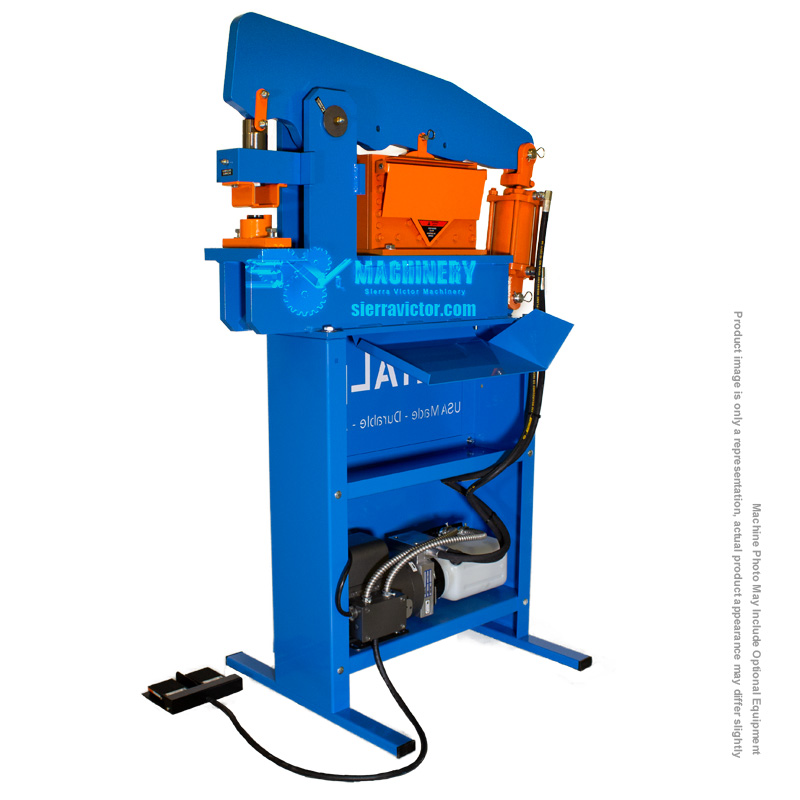

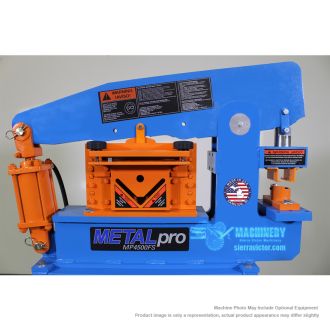

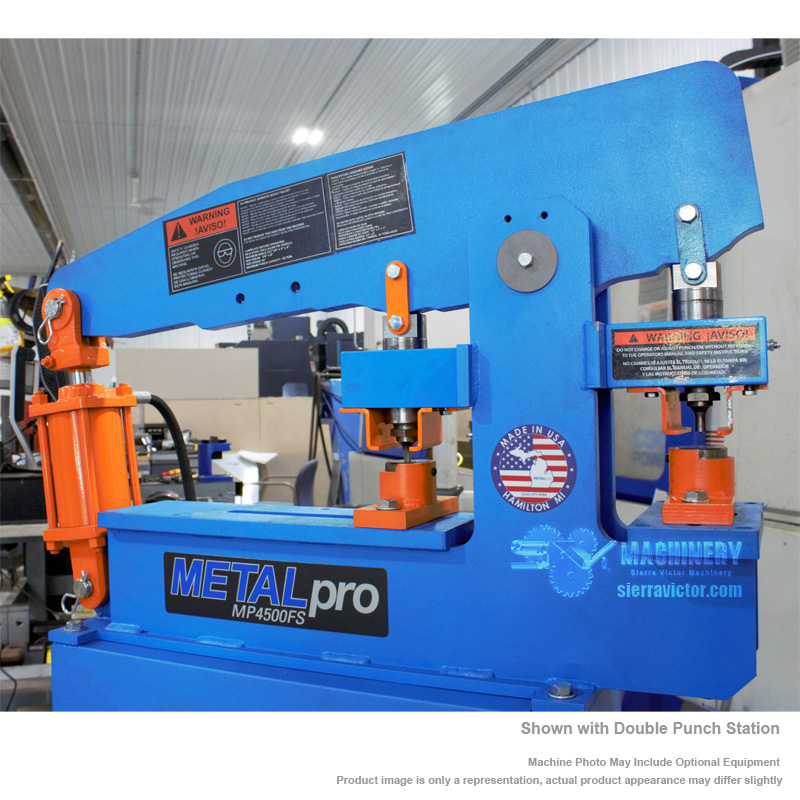

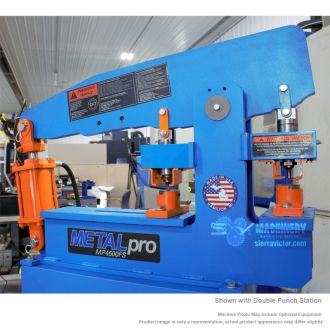

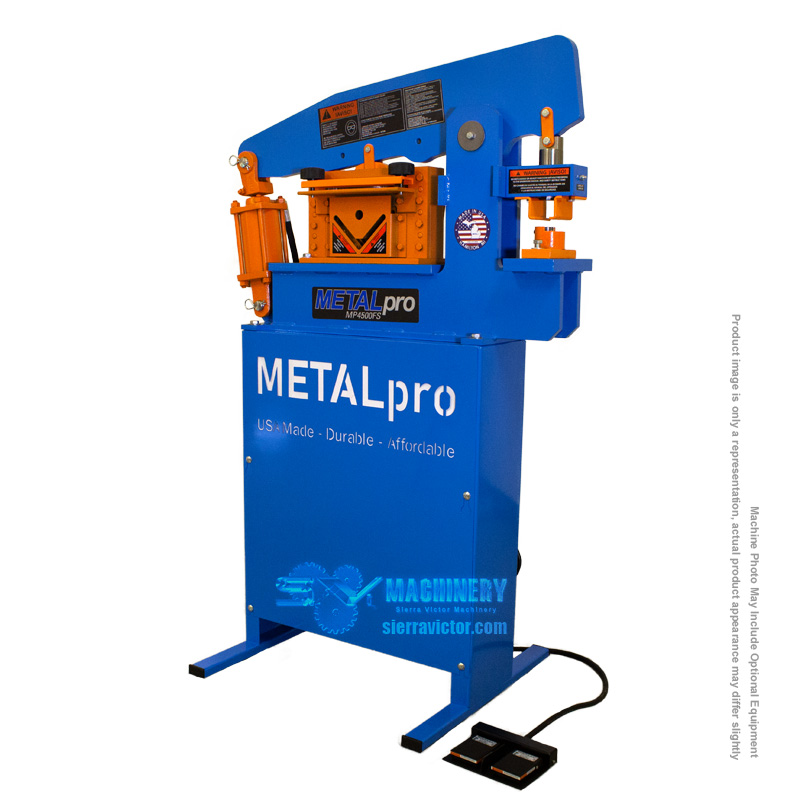

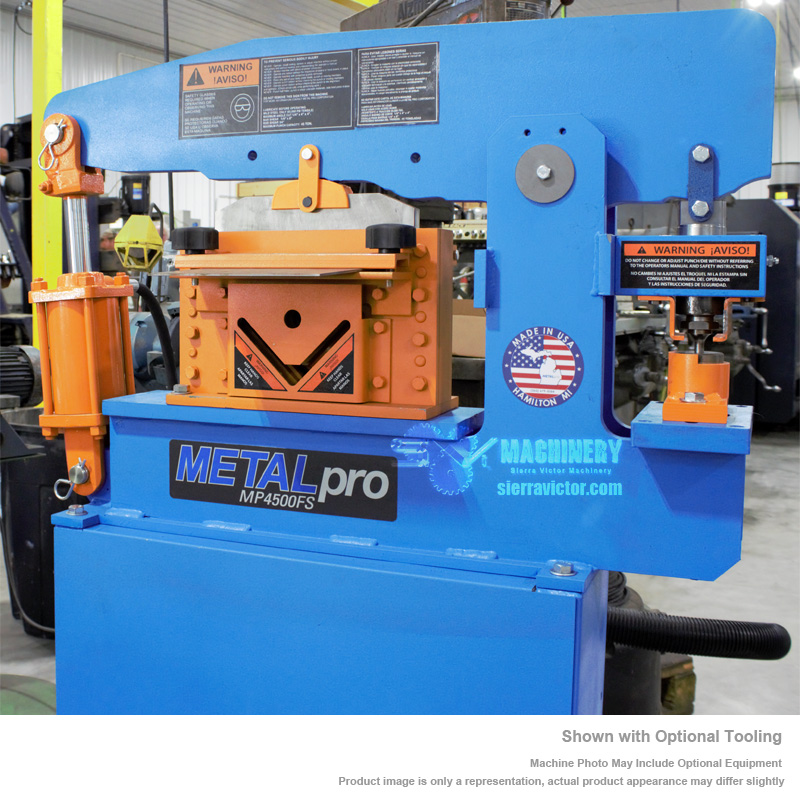

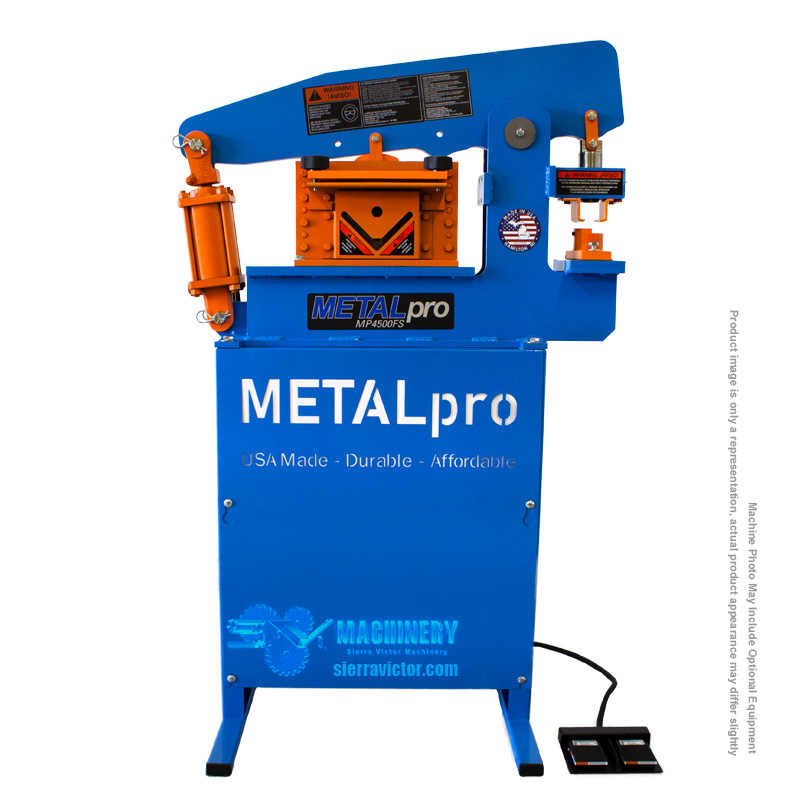

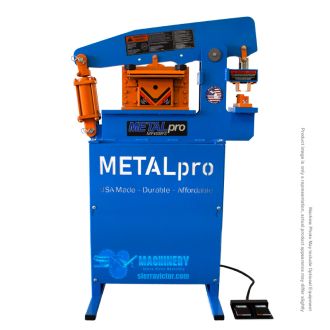

METALPRO 45 Ton Ironworker MP4500FS
ITEM: 45 Ton Ironworker
MANUFACTURER: METALpro
MODEL: MP4500FS
Manufacturer:
MetalPro
Machine Type
Machine Category:
Ironworkers
Metalworking
Pressure:
45+ Tons
MODEL
|
MP4500FS |
|
SPEED |
Strokes per minute |
approximately 6-8 |
Motor |
110V, 1-1/2 horsepower |
|
Capacity |
45 Tons |
|
Throat Depth |
3-3/4" |
|
Punch |
45 Ton max capacity |
|
SHEAR |
Flat bar |
3/8" x 6" and 1/4" x 8" |
Angle |
1/4" x 4" x 4" |
|
Rod |
3/4" |
|
Square |
5/8" |
|
Hydraulics |
2900 PSI |
|
Oil capacity |
1.5 US gallons |
|
ACCESSORIES |

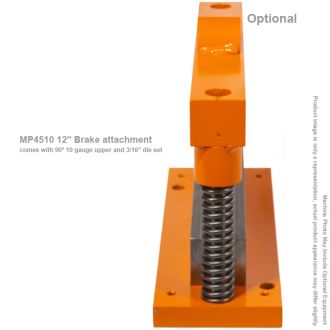

Brake |
25 Tons |
Notcher |
optional 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inch sch. 40 |
|
Picket Tool optional |
1/2, 5/8, 3/4 inch |
|
Pressing |
Custom tooling available |
|
FRAME DIMENSIONS |
Width |
24" |
Height |
59" |
|
Length |
36-1/2" |
|
Weight |
550 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
|
PART #
|
ITEM
|
PRICE
|
|
MP45LS
|
Sensor Controlled Limit Switch Kit:
5 lbs., 24 x 6 x 2 in. |
$950.00
|
|
MP2500
|

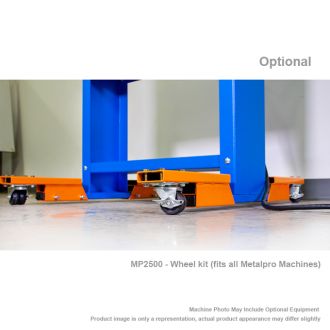

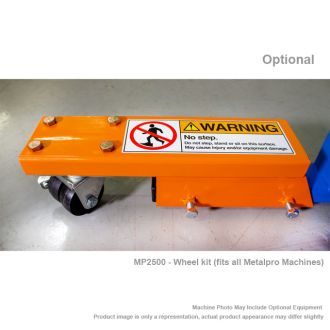

Wheel kit (fits all Metalpro Machines)
|
$299.25
|
