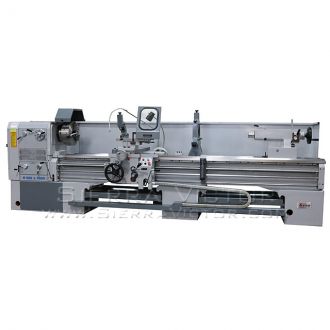

LION 25" x 60" Engine Lathe 25-CU-60

Name: LION 25" x 60" Engine Lathe 25-CU-60
Brand: Lion
SKU: 25-CU-60
Availability: InStock
Rating: 4.9 (8 reviews)

25" x 60"

Availability: Call for Availability

Prices and Inventory are subject to change without notice.
Call or email us to verify prior to order.

* Interest rates based on credit approval and are subject to change.

Swing Over Bed	25"
Swing Over Cross Slide	17"
Swing In The Gap	33"
Length In Gap From Face Plate	9"
Distance Between Centers	60"

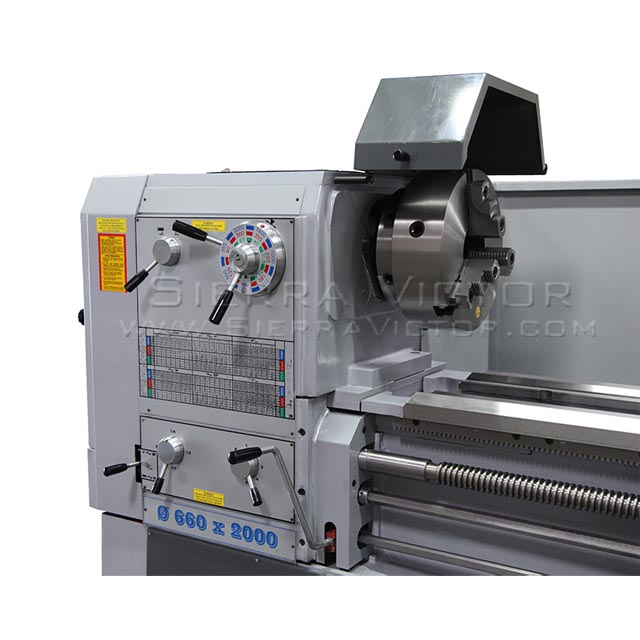

Spindle Nose	D1-11
Spindle Bore	4-1/8"
Spindle Bearings	SKF
Number Of Spindle Speeds	16
Range Of Speeds	9 - 1600 RPM
Number Of Threads	72
Range Of Inch Threads	60 - 1/8 TPI
Range Of Metric Threads	0.5 - 240
Number Of Feeds	72
Range Of Longitudinal Feeds	.0019 - .893
Range Of Cross Feeds	.0015 - .701
Lead Screw Diameter	2"
Lead Screw Pitch	2 TPI
Max. Traverse Of Cross Slide	12-1/2"
Max. Traverse Of Top Slide	6-1/4"
Taper Turning Working Length	15 - 3/4"
Maximum Taper	+ / - 10°

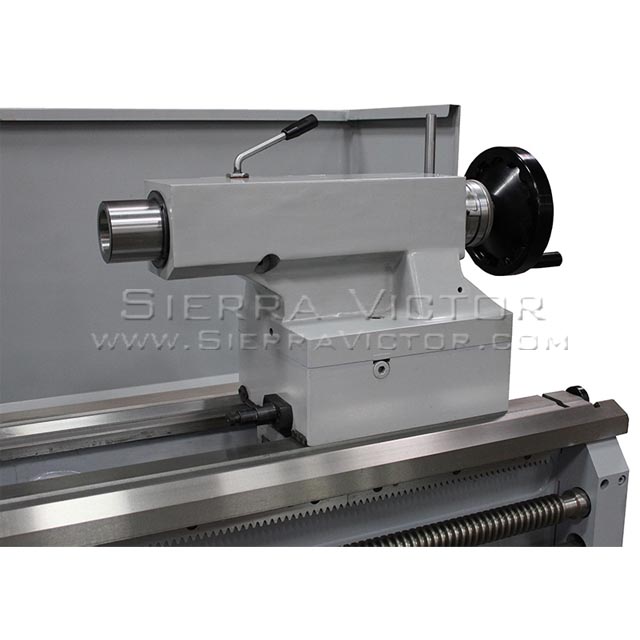

Quill Diameter	3-1/2"
Quill Taper Bore	6 MT
Maximum Quill Stroke	9"
Lateral Stroke Of Tailstock	+ / - 3/8”
Width Of Bed	19"
Ways	Hardened & Ground
Motor Power	17.5 H.P.
Electrics	3 Phase, 220V
Length	124"
Width	57"
Height	61"
Overall Weight Lbs. (approx.)	8,750
