- Description

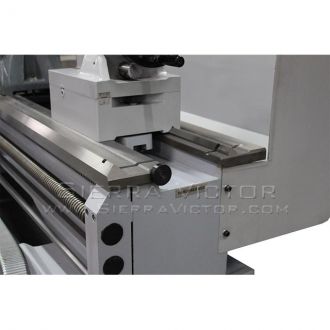

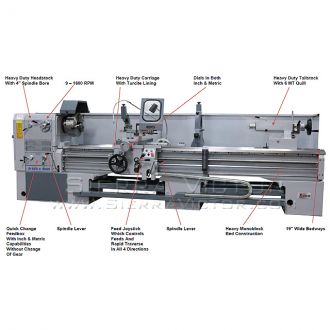

- Heavy duty bed construction, with hardened and ground bedways.
- 19” wide bedways with heavy overall machine weights.

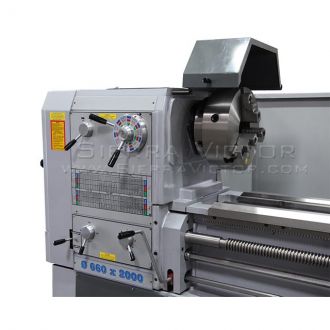

- Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.
- 4” spindle bore with D1-11 camlock spindle nose.
- Inch and metric threading without change of gear. Inch threading range from 60 – 1/8 TPI.
- 4-Way Rapid Traverse standard.

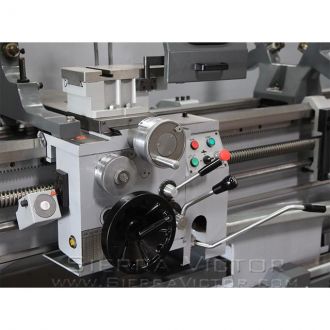

- Single lever feed joystick for easy operation of feeds and 4-way rapid traverse.

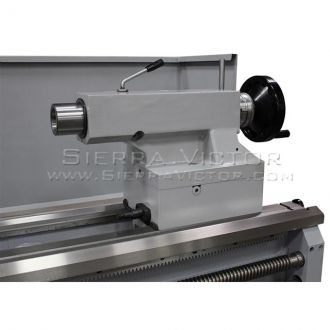

- 2-Speed Tailstock with tag along feature.
- European built.
- Heavy duty, rigid, accurate, reliable, and long lasting.
- Manufacturer
- Specifications
- Custom Freight

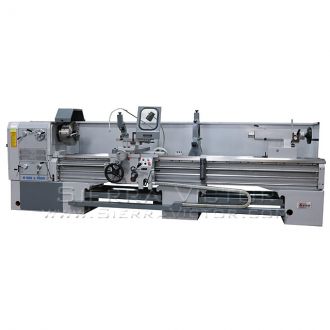

LION 25" x 120" Engine Lathe 25-CU-120
ITEM: 25" x 120" Engine Lathe
MANUFACTURER: LION
MODEL: 25-CU-120
Manufacturer:
Lion
Lathes
Lathe Size:
25" x 120"+
Lathe Type:
Engine
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Engine
Swing Over Bed |
25" |
Swing Over Cross Slide |
17" |
Swing In The Gap |
33" |
Length In Gap From Face Plate |
9" |
Distance Between Centers |
120" |
Spindle Nose |
D1-11 |
Spindle Bore |
4-1/8" |
Spindle Bearings |
SKF |
Number Of Spindle Speeds |
16 |
Range Of Speeds |
9 - 1600 RPM |
Number Of Threads |
72 |
Range Of Inch Threads |
60 - 1/8 TPI |
Range Of Metric Threads |
0.5 - 240 |
Number Of Feeds |
72 |
Range Of Longitudinal Feeds |
.0019 - .893 |
Range Of Cross Feeds |
.0015 - .701 |
Lead Screw Diameter |
2" |
Lead Screw Pitch |
2 TPI |
Max. Traverse Of Cross Slide |
12-1/2" |
Max. Traverse Of Top Slide |
6-1/4" |
Taper Turning Working Length |
15 - 3/4" |
Maximum Taper |
+ / - 10° |
Quill Diameter |
3-1/2" |
Quill Taper Bore |
6 MT |
Maximum Quill Stroke |
9" |
Lateral Stroke Of Tailstock |
+ / - 3/8” |
Width Of Bed |
19" |
Ways |
Hardened & Ground |
Motor Power |
17.5 H.P. |
Electrics |
3 Phase, 220V |
Length |
183" |
Width |
57" |
Height |
61" |
Overall Weight Lbs. (approx.) |
11,200 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
