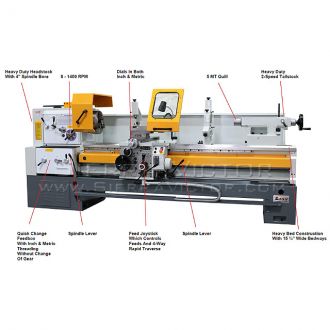

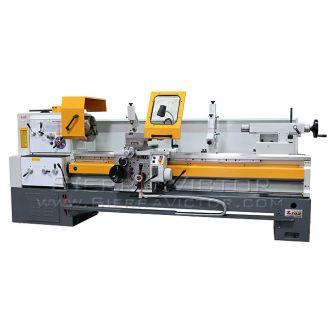

LION 23.5" x 160" Engine Lathe 23-MT-160

Name: LION 23.5" x 160" Engine Lathe 23-MT-160
Brand: Lion
SKU: 23-MT-160
Availability: InStock
Rating: 4.9 (8 reviews)

23" x 120"+

Availability: Call for Availability

Prices and Inventory are subject to change without notice.
Call or email us to verify prior to order.

* Interest rates based on credit approval and are subject to change.

Swing Over Bed	23-1/2"
Swing Over Cross Slide	15-3/4"
Swing In The Gap	32"
Length In Gap From 4-Jaw Chuck	9"
Distance Between Centers	160"
Spindle Nose	D1-11
Spindle Bore	4-1/8"
Spindle Bearings	SKF
Number Of Spindle Speeds	16
Range Of Speeds	8 – 1400 RPM
Number Of Threads	72
Range Of Inch Threads	120 – 1/4 TPI
Range Of Metric Threads	0.25 – 64
Number Of Feeds	72
Range Of Longitudinal Feeds	.001 - .4448"
Range Of Cross Feeds	.0005” - .2224"
Lead Screw Diameter	2"
Lead Screw Pitch	2 TPI
Max. Traverse Of Cross Slide	12"
Max. Traverse Of Top Slide	5"
Taper Turning Working Length	15-3/4"
Maximum Taper	+ / - 10°
Tailstock Quill Diameter	3-1/2"
Tailstock Quill Taper Bore	5 MT
Maximum Quill Stroke	8-1/2"
Lateral Stroke Of Tailstock	+ / - 1/2"
Width Of Bed	15-3/4"
Ways	Hardened & Ground
Motor Power	15 H.P.
Electrics	3 Phase, 220V
Length	220"
Width	51"
Height	62"
Overall Weight Lbs. (approx.)	10,000
