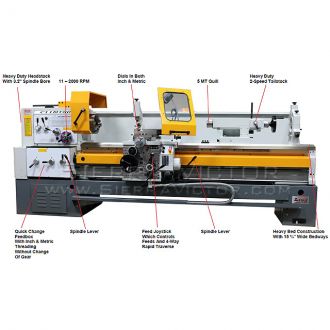

LION 20" x 120" Engine Lathe 20-MT-3-120

Name: LION 20" x 120" Engine Lathe 20-MT-3-120
Brand: Lion
SKU: 20-MT-3-120
Availability: InStock
Rating: 4.9 (8 reviews)

20" x 120"+

Availability: Call for Availability

Prices and Inventory are subject to change without notice.
Call or email us to verify prior to order.

* Interest rates based on credit approval and are subject to change.

Swing Over Bed	20"
Swing Over Cross Slide	11-3/4"
Swing In The Gap	27"
Length In Gap From Face Plate	9"
Distance Between Centers	120"
Spindle Nose	D1-8
Spindle Bore	3.2"
Spindle Bearings	SKF
Number Of Spindle Speeds	16
Range Of Speeds	11 - 2000 RPM
Number Of Threads	72
Range Of Inch Threads	120 – 1/4 TPI
Range Of Metric Threads	0.25 – 120
Number Of Feeds	72
Range Of Longitudinal Feeds	.001 - .4448"
Range Of Cross Feeds	.0005” - .2224"
Lead Screw Diameter	2"
Lead Screw Pitch	2 TPI
Max. Traverse Of Cross Slide	12"
Max. Traverse Of Top Slide	5"
Taper Turning Working Length	15 - 3/4"
Maximum Taper	+ / - 10°
Tailstock Quill Diameter	3-1/2"
Tailstock Quill Taper Bore	5 MT
Maximum Quill Stroke	8-1/2"
Lateral Stroke Of Tailstock	+ / - 1/2”
Width Of Bed	15-3/4"
Ways	Hardened & Ground
Motor Power	10 H.P.
Electrics	3 Phase 220 V
Length	180"
Width	52"
Height	60"
Overall Weight Lbs. (approx.)	8,600
