- Description

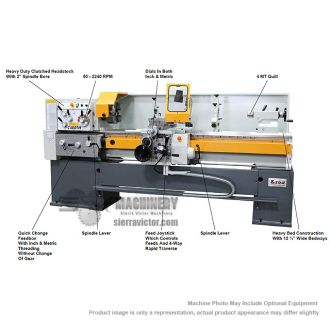

- Heavy duty bed construction with hardened and ground bedways.
- 12-1/2” wide bedways with heavy overall machine weights.

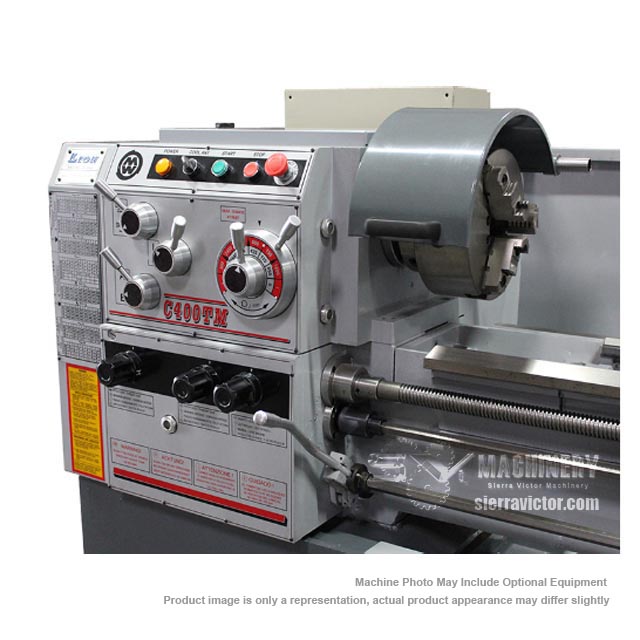

- Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.
- Inch and metric threading without change of gear.
- Wide range of Inch Threads from 120 – 4 TPI.
- 4-way rapid traverse standard.

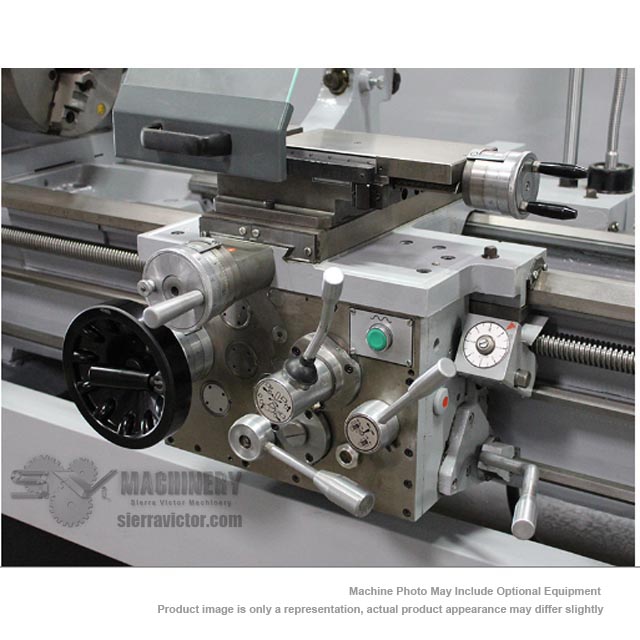

- Single Lever Feed Joystick for easy operation of feeds and rapid traverse.
- Heavy overall machine weight 4,300 Lbs.
- European built.
- Heavy duty, rigid, accurate, reliable, and long lasting.
- Manufacturer
- Specifications
- Custom Freight

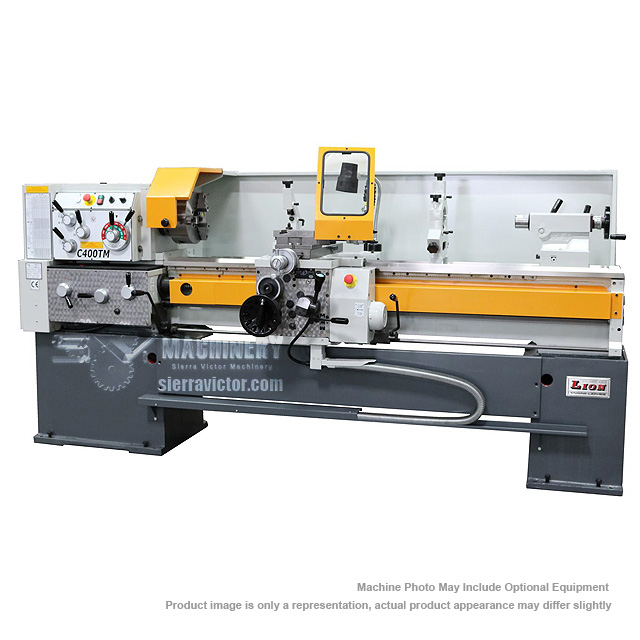

LION Engine Lathe 16-M-60
ITEM: 16" x 60" Engine Lathe
MANUFACTURER: LION
MODEL: 16-M-60
Manufacturer:
Lion
Lathes
Lathe Size:
16" x 60"
Lathe Type:
Engine
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Engine
Swing Over Bed |
16-1/4" |
Swing Over Cross Slide |
9-1/4" |
Swing In The Gap |
21" |
Length In Gap From Face Plate |
6-1/4" |
Distance Between Centers |
60" |
Spindle Nose |
D1-6 |
Spindle Bore |
2 - 1/16" |
Spindle Bearings |
SKF |
Number Of Spindle Speeds |
12 |
Range Of Speeds |
50 - 2240 RPM |
Number Of Threads |
40 |
Range Of Inch Threads |
120 - 4 TPI |
Range Of Metric Threads |
7.5 - 0.25 |
Number Of Feeds |
40 |
Range Of Longitudinal Feeds |
.0007 - .0224 |
Range Of Cross Feeds |
.0004 - .0112 |
Lead Screw Diameter |
1-1/4" |
Lead Screw Pitch |
2 TPI |
Max. Traverse Of Cross Slide |
9-1/2" |
Max. Traverse Of Top Slide |
4" |
Quill Diameter |
2" |
Quill Taper Bore |
4 MT |
Maximum Quill Stroke |
4" |
Lateral Stroke Of Tailstock |
+ / - 1/2” |
Width Of Bed |
12 - 1/2" |
Ways |
Hardened & Ground |
Motor Power |
6 H.P. |
Electrics |
3 Phase, 220V |
Length |
111" |
Width |
41" |
Height |
53" |
Overall Weight Lbs. (approx.) |
4,300 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
