- Description
- Heavy duty bed construction with hardened and ground bedways.
- 12-1/2” wide bedways with heavy overall machine weights.
- Heavy duty clutched headstock with set of SKF spindle bearings, and hardened and ground gears.
- Inch and metric threading without change of gear.
- Wide range of Inch Threads from 120 – 4 TPI.
- 4-way rapid traverse standard.
- Single Lever Feed Joystick for easy operation of feeds and rapid traverse.
- Heavy overall machine weight of 4,000 Lbs.
- European built.
- Heavy duty, rigid, accurate, reliable, and long lasting.
- Manufacturer
- Specifications
- Custom Freight

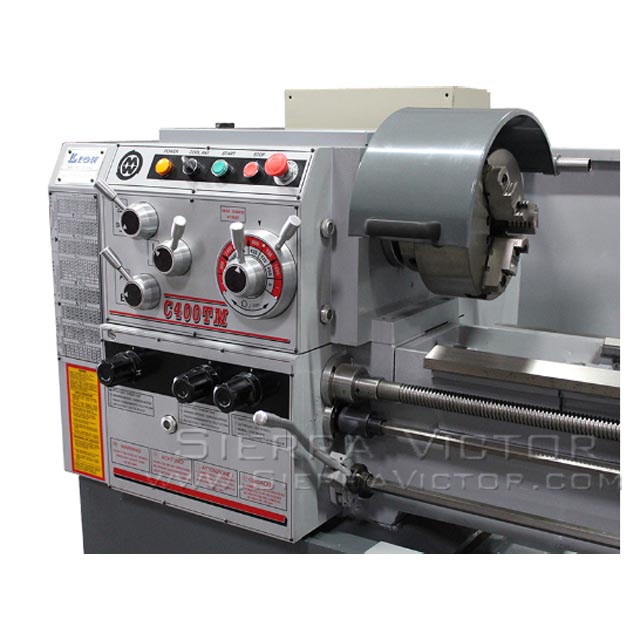

LION Engine Lathe 16-M-40
ITEM: 16" x 40" Engine Lathe
MANUFACTURER: LION
MODEL: 16-M-40
Manufacturer:
Lion
Lathes
Lathe Size:
16" x 40"
Lathe Type:
Engine
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Engine
|
Swing Over Bed
|
16-1/4"
|
|
Swing Over Cross Slide
|
9-1/4"
|
|
Swing In The Gap
|
21"
|
|
Length In Gap From Face Plate
|
6-1/4"
|
|
Distance Between Centers
|
40"
|
|
Spindle Nose
|
D1-6
|
|
Spindle Bore
|
2 - 1/16"
|
|
Spindle Bearings
|
SKF
|
|
Number Of Spindle Speeds
|
12
|
|
Range Of Speeds
|
50 - 2240 RPM
|
|
Number Of Threads
|
40
|
|
Range Of Inch Threads
|
120 - 4 TPI
|
|
Range Of Metric Threads
|
7.5 - 0.25
|
|
Number Of Feeds
|
40
|
|
Range Of Longitudinal Feeds
|
.0007 - .0224
|
|
Range Of Cross Feeds
|
.0004 - .0112
|
|
Lead Screw Diameter
|
1-1/4"
|
|
Lead Screw Pitch
|
2 TPI
|
|
Max. Traverse Of Cross Slide
|
9-1/2"
|
|
Max. Traverse Of Top Slide
|
4"
|
|
Quill Diameter
|
2"
|
|
Quill Taper Bore
|
4 MT
|
|
Maximum Quill Stroke
|
4"
|
|
Lateral Stroke Of Tailstock
|
+ / - 1/2”
|
|
Width Of Bed
|
12 - 1/2"
|
|
Ways
|
Hardened & Ground
|
|
Motor Power
|
6 H.P.
|
|
Electrics
|
3 Phase, 220V
|
|
Length
|
91"
|
|
Width
|
41"
|
|
Height
|
53"
|
|
Overall Weight Lbs. (approx.)
|
4,000
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
