- Description
- Packed with many features usually only seen on more expensive saws the H310 A and H 310 A-NC offer fully automatic sawing in a tight footprint.
- Fully hydraulic
- Manual mitering up to 60 degrees
- Feeder stroke 20" w/ unlimited max feed length Scrap end 8"
- Carbide guides w/ rollers
- Time saving material sensor
- Easy setup
- Feeder accuracy +/- 0.008" per index
- One Bi-metal saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

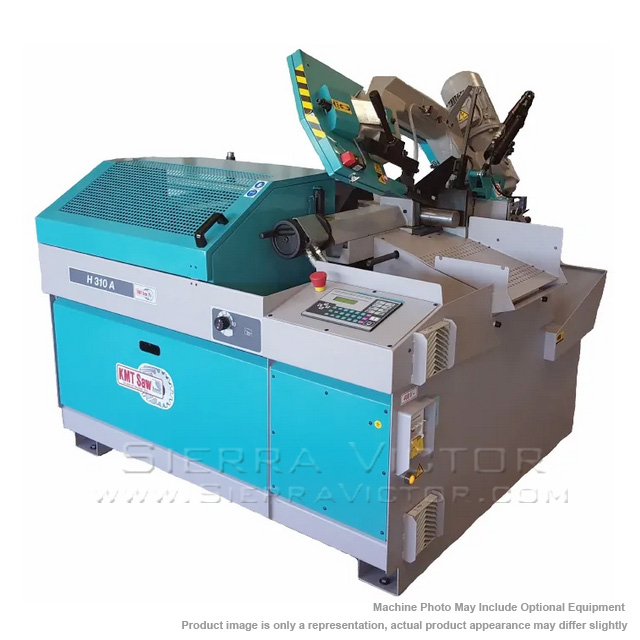

KMT SAW 10" Automatic Hydraulic Horizontal Band Saws H310A
STANDARD EQUIPMENT:
ITEM: 10" Automatic Hydraulic Horizontal Band Saws
MANUFACTURER: KMT SAW
MODEL: H 310 A
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Bandsaws
Control:
Automatic
Power Source:
Hydraulic
Position:
Horizontal
Metalworking
Saw Capacity:
10"+
MODEL |
H 310 A |
|
0 Degrees |
Round |
10" |
Square |
9" |
|
Rectangle |
7" x 11-1/2" |
|
45 Degrees Right |
Round |
8-1/4" |
Square |
7-1/2" |
|
Rectangle |
6-1/4" x 7-3/4" |
|
60 Degrees Right |
Round |
5" |
Square |
4-1/4" |
|
Rectangle |
4" x 4" |
|
Blade Drive HP |
2 HP |
|
Available Electrics |
208V/3, 230V/3, 460V/3-phase (Please specify) |
|
Blade Speeds |
60-360 fpm |
|
Blade Size |
H 1" x s.035" x L 9' 1" |
|
Material Working Height (from floor to table top) |
37" |
|
Vise Opening |
12" |
|
Machine Weight |
1,500 lbs. |
|
Machine Floor Dimensions |
W 73" x L 68" |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
AC116 |
Spray mist coolant |
