- Description
- Semiautomatic
- Miters 60 degrees right
- 6 Degree Cant
- Capacity for W 21 beams
- Perfectly Counter Balanced
- Large Scale for accurate miters
- Vibration free sawing in a range of interrupted and solid materials
- All moving components on linear bearing guides
- Carbide Guides w/ rollers
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- One Bi-metal sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

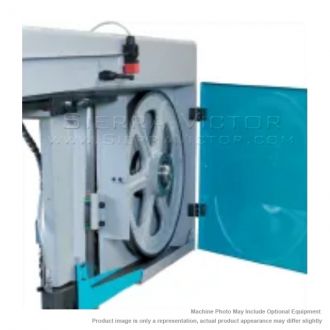

KMT SAW 20" Double Column Semi-Automatic Bandsaw H 6 SA
STANDARD EQUIPMENT:
ITEM: 20" Double Column Semi-Automatic Band Saw
MANUFACTURER: KMT SAW
MODEL: H 6 SA
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Double Column
Control:
Semi-Automatic
Position:
Horizontal
Metalworking
Saw Capacity:
20"+
MODEL |
H 6 SA |
|
0 Degrees |
Round |
19-1/2" |
Square |
17-1/2" |
|
Rectangle |
17-1/2" x 23-1/2" |
|
45 Degrees Right |
Round |
14-1/2" |
Square |
14-1/2" |
|
Rectangle |
14-1/2" x 14-1/2" |
|
60 Degrees Right |
Round |
7-3/4" |
Square |
7-3/4" |
|
Rectangle |
7-3/4" x 7-3/4" |
|
Blade Drive HP |
4 HP |
|
Available Electrics |
208V/3, 230V/3, 460V/3-phase (Please specify) |
|
Blade Speeds |
60-360 fpm |
|
Blade Size |
H 1.25" x s.042" x L 17' 5" |
|
| Working Height |
32" |
|
Vise Opening |
23-1/2" |
|
Machine Weight |
4,000 lbs. |
|
Machine Floor Dimensions |
49" W x 112" L |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
|
PART #
|
ITEM
|
|
AC600
|
10' Conveyor
|
|
AC625
|
5' Conveyor with coolant tray
|
|
AC116
|
Spray mist coolant
|
