- Description
- Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.

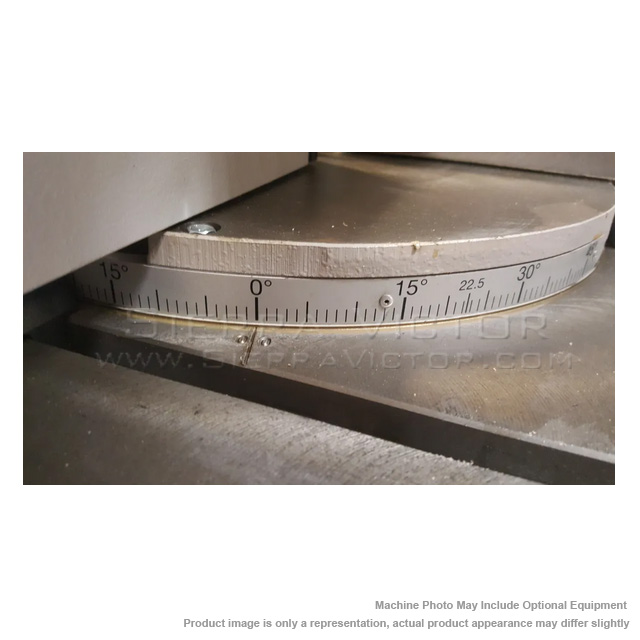

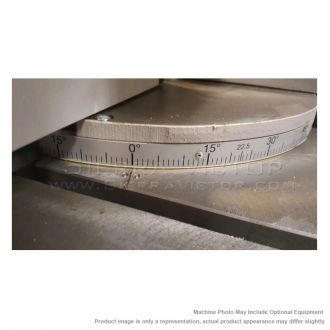

- The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
- The sawframe feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.
- C 370 series machines may be used to cut solid mild steel to the maximum capacity.
- C 370 with manual vise
- C 370 AV with air vise
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day
- One HSS saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission

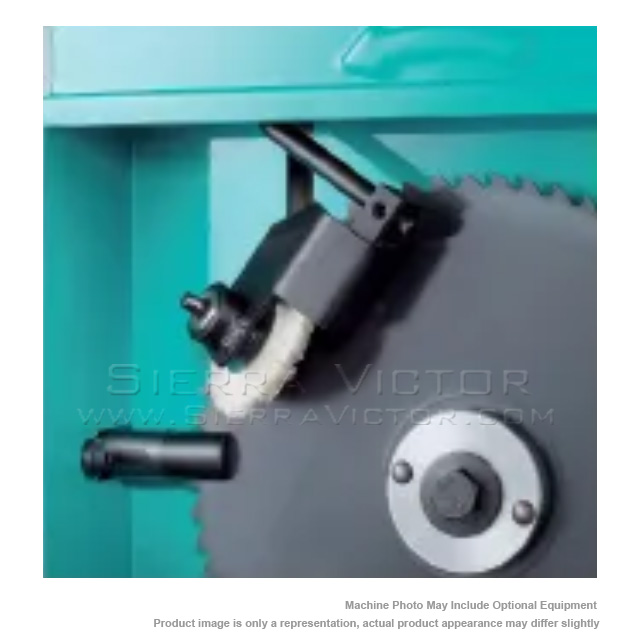

- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Pull out chip tray
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

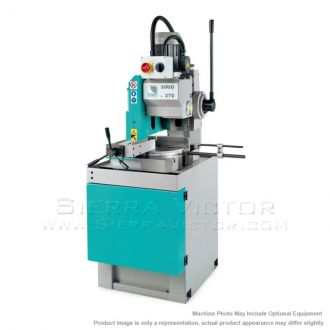

KMT SAW 14.5" Vertical Column Manual Cold Saw C370
STANDARD EQUIPMENT:
ITEM: 14" Vertical Column Manual Cold Saw
MANUFACTURER: KMT SAW
MODEL: C370 / C370-AV
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Manual
Metalworking
Saw Capacity:
14"+
|
Construction Type
|
Vertical Column
|
||
|
Capacities:
|
Round
|
Square
|
Rectangular
|
|
0 deg.
|
4-1/2"
|
4"
|
4" x 7"
|
|
45 deg. left
|
4-1/2"
|
4"
|
4" x 5"
|
|
45 deg. right
|
4"
|
4"
|
4" x 5"
|
|
60 deg. right
|
4-1/4"
|
3-3/4"
|
3-1/2" x 3-1/2"
|
|
Max Blade
|
14.5" (370 mm)
|
||
|
Horsepower
|
4 HP
|
||
|
Spindle RPM:
|
18/36 (13-89, C 370-AV)
|
||
|
Electricals
|
220/3 or 460/3 (specify)
|
||
|
Spindle Diameter
|
40 mm
|
||
|
Max Vise Opening
|
7-1/4"
|
||
|
Floor Footprint
|
25" w x 31" deep
|
||
|
Material Work Height
|
36.25"
|
||
|
Shipping Weight
|
1,000 lbs.
|
||
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
| C 370 AV |
Manual Cold Saw - Manual sawing operation with quick clamping of air vise. |
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
