- Description
- Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
- The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
- The sawframe feed is rack & pinion.
- C 370 series machines may be used to cut solid mild steel to the maximum capacity.
- Simple Semiautomatic operation
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- One HSS saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Pull out chip tray
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

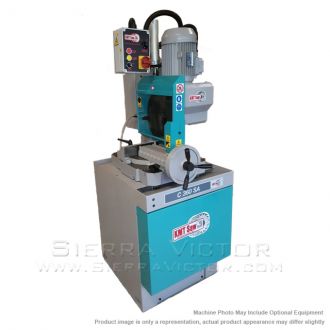

KMT SAW 14.5" Vertical Column Semi-Auto Cold Saw C 360 SA
STANDARD EQUIPMENT:
ITEM: 14.5" Vertical Column Semi-Auto Cold Saw
MANUFACTURER: KMT SAW
MODEL: C 360SA / C 360 SA-V
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Semi-Automatic
Metalworking
Saw Capacity:
14"+
|
Capacities:
|
Round
|
Square
|
Rectangular
|
|
0 deg.
|
4-1/2"
|
4"
|
4" x 7"
|
|
45 deg. left
|
4-1/2"
|
4"
|
4" x 5"
|
|
45 deg. right
|
4"
|
4"
|
4" x 5"
|
|
60 deg. right
|
4-1/4"
|
3-3/4"
|
3-1/2" x 3-1/2"
|
|
Max Blade Diam.
|
14.5" (370 mm)
|
||
|
Horsepower
|
4 HP
|
||
|
Spindle RPM - 2 speed
|
18/36 (13-89, C 370 SA-V)
|
||
|
Electricals
|
220/3 or 460/3 (specify)
|
||
|
Spindle Diameter
|
40 mm
|
||
|
Max Vise Opening
|
7-1/4"
|
||
|
Floor Footprint
|
25" w x 31" deep
|
||
|
Material Work Height
|
36.25
|
||
|
Shipping Weight
|
1,000 lbs. (1,200 lbs. C 370 SA-V)
|
||
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
AC117 |
Footswitch |
AC116 |
Spray mist coolant |
AC128 |
Top clamp |
AC330 |
Variable vise pressure |
