- Description
- Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.

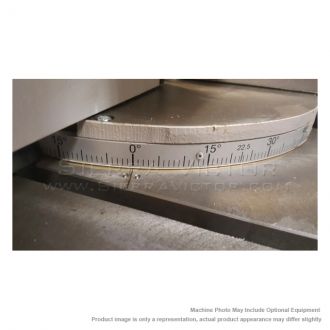

- The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero.
- The sawframe feed is rack & pinion which means you can easily pull through heavy workpieces effortlessly.
- Models C 320 SA is a step up from hinge type construction and may be used for production of tubes profiles and small solids.
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day
- One HSS saw blade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Tool kit
- Pull out chip tray
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

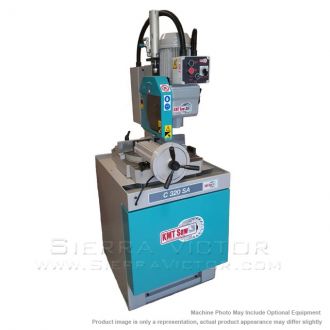

KMT SAW 12.5" Vertical Column Semi-Auto Cold Saw C 320-SA
STANDARD EQUIPMENT:
ITEM: 12-1/2" Vertical Column Semi-Auto Cold Saw
MANUFACTURER: KMT SAW
MODEL: C 320 SA
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Semi-Automatic
Metalworking
Saw Capacity:
12"+
Capacities: |
Round |
Square |
Rectangular |
90 deg. |
4" |
3-1/2" |
3-1/2" x 5-3/4" |
45 deg. left |
4" |
3-1/2" |
3" x 4" |
45 deg. right |
4" |
3-1/2" |
3" x 4" |
60 deg. right |
3-1/2" |
3" |
2-3/4" x 3-1/2" |
Max Blade Diam. |
12.5" (315 mm) |
||
Horsepower |
2.5 HP |
||
Spindle RPM (2 speed) |
17/33 |
||
Electricals |
220/3 or 460/3 (specify) |
||
Spindle Diameter |
40 mm |
||
Max Vise Opening |
7-1/4" |
||
Floor Footprint |
25" w x 31" deep |
||
Material Work Height |
36.25" |
||
Shipping Weight |
800 lbs. |
||
Specifications are subject to change without notice.
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
