- Description
- For tubes, pipes, light structurals. Hinge type machines are generally not considered production machines, but may be used in production under carefully considered applications.
- Takes up to 14" blade
- Miters up to 45 degrees right and left vise also swivels for slotting capability
- Built in flood coolant
- Material stop
- Storage base included
- Equal clamping on both sides of vise
- One 12" saw blade included
- Tool kit
- *Variable speed option (24-105rpm)
- Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
- One HSS sawblade
- Low voltage control
- TEFC 3 phase drive motor
- Totally enclosed worm gear transmission
- Full Coolant System
- Full Blade Guarding
- Operators Manual Parts List/Schematics
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

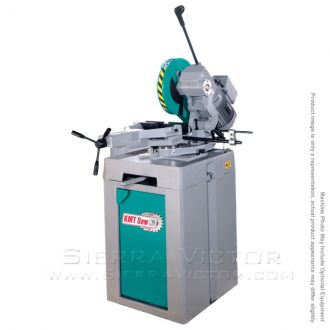

KMT SAW 14" Manual Cold Saw C315/350
STANDARD EQUIPMENT:
ITEM: 14" Manual Cold Saw
MANUFACTURER: KMT SAW
MODEL: C315/350 / C315/350-V
Manufacturer:
KMT Saw
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Manual
Metalworking
Saw Capacity:
14"+
|
Construction Type
|
Hinge Type
|
||
|
Capacities:
|
Round
|
Square
|
Rectangular
|
|
90 deg.
|
4"
|
3-3/4"
|
3-3/4" x 5"
|
|
45 deg. left
|
3-3/4"
|
3-3/4"
|
3-3/4" x 3-3/4"
|
|
45 deg. right
|
3-3/4"
|
3-3/4"
|
3-3/4" x 3-3/4"
|
|
Max Blade
|
14" (350 mm)
|
||
|
Horsepower
|
3.5 HP
|
||
|
Spindle RPM:
|
24-105 (220/1 optional); 30/60
|
||
|
Electricals
|
220/3, 460/3 (*220/1 variable speed machine only)
|
||
|
Spindle Diameter
|
32 mm
|
||
|
Max Vise Opening
|
6-1/4"
|
||
|
Floor Footprint
|
23" w x 24" deep
|
||
|
Material Work Height
|
39.75"
|
||
|
Shipping Weight
|
650 lbs.
|
||
*Additional charge
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
|
PART #
|
ITEM
|
AC230 |
Mobile Kit |
AC200 |
5' x 15" wide freestanding conveyor (additional 5' sections can bolt together) |
AC250 |
5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together) |
AC102 |
6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray |
AC103 |
Additional 6' connecting to AC102 |
