- Description
- Longitudinal on V-flat scraped guideways
- Saddle traveling crossfeed
- Motorized rapid elevation
- Spindle motor frequency inverter *Optional
- Hydraulic oil chiller *Optional
- Full enclosure *Optional
- Overhead hydraulic wheel dresser
- Variable spindle speed *Optional
- Surface grinding
- Plunge grinding
- Manufacturer
- Specifications
- Options/Accessories
- Magnetic Separator & Paper Filter Coolant System (M2)
- Digital Read Out System
- DRO Installation & Display Arm & Tray, Mounting Bracket
- Fine Pole Electromagnetic Chuck
- Extra Wheel Flange
- Table Splash Guard (Rear)
- Full Enclosure Guarding
- Spindle Motor Frequency Inverter for Variable RPM
- Hydraulic Oil Chiller
- Custom Freight

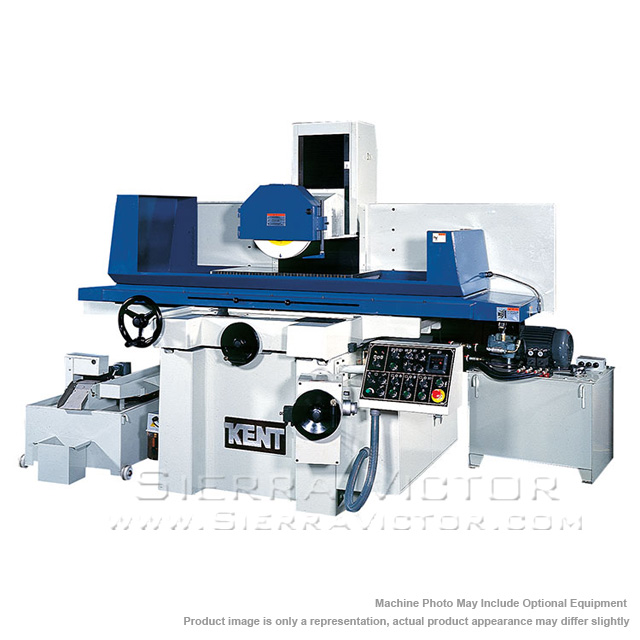

KENT 16" x 32" Automatic 3-Axes Surface Grinder KGS-84AHD
ITEM: 16" x 32" Automatic 3-Axes Surface Grinder
MANUFACTURER: KENT
MODEL: KGS-84AHD
Manufacturer:
Kent
Grinder/Sander Size:
16" x 32"
Machine Type
Machine Category:
Grinders - Surface
Control:
Automatic
MODEL
|
KSG-84AHD
|
|
Capacity |
Overall table working area (in.) |
16 x 32 |
Longitudinal table travel (in.) |
36.25 |
|
Crossfeed table travel (in.) |
17.75 |
|
Distance spindle center to table (in.) |
23.6 |
|
Grinding Wheel |
Wheel dimension (Dia. x W x Bore) (in.) |
14 x 1.5 or 2 x 5 |
Spindle speed |
1740 rpm |
|
Vertical Movement |
Vertical on MPG / Handwheel 1 gra |
0.00005 in |
Vertical on MPG / Handwheel 1 rev |
0.025 in. |
|
Auto downfeed increment |
0.00025 - 0.00125 in. |
|
Motor |
Spindle motor |
7.5 HP |
Dimension and Weight |
Machine height (in.) |
74 |
Floor space (in.) |
141 x 108 |
|
Net weight |
6,160 lbs. |
|
Gross weight |
6,760 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
