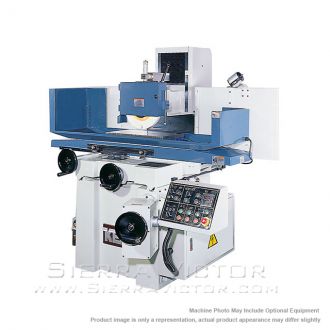

KENT 12" x 24" Automatic 3-Axes Surface Grinder KGS-63AHD
ITEM: 12" x 24" Automatic 3-Axes Surface Grinder
MANUFACTURER: KENT
MODEL: KGS-63AHD
Manufacturer:
Kent
Grinder/Sander Size:
12" x 24"
Machine Type
Machine Category:
Grinders - Surface
Control:
Automatic
MODEL
|
KSG-63AHD
|
|
Capacity |
Overall table working area (in.) |
12 x 24 |
Longitudinal table travel (in.) |
28 |
|
Crossfeed table travel (in.) |
13.4 |
|
Distance spindle center to table (in.) |
24 |
|
Grinding Wheel |
Wheel dimension (Dia. x W x Bore) (in.) |
14 x 1.5 or 2 x 5 |
Spindle speed |
1740 rpm |
|
Vertical Movement |
Vertical on MPG / Handwheel 1 gra |
0.00005 in |
Vertical on MPG / Handwheel 1 rev |
0.025 in. |
|
Auto downfeed increment |
0.00025 - 0.00125 in. |
|
Motor |
Spindle motor |
7.5 HP |
Dimension and Weight |
Machine height (in.) |
72 |
Floor space (in.) |
102 x 98 |
|
Net weight |
4,100 lbs. |
|
Gross weight |
4,600 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
