- Description
- Longitudinal on ball bearing table ways
- Spindle motor frequency inverter *Optional
- Hydraulic oil chiller *Optional
- Overhead manual wheel dresser
- Variable spindle speed *Optional
- Surface grinding
- Plunge grinding
- Manufacturer
- Specifications
- Options/Accessories
- Magnetic Separator & Paper Filter Coolant System (M2)
- Digital Read Out System
- DRO Installation & Display Arm & Tray, Mounting Bracket
- Fine Pole Electromagnetic Chuck
- Extra Wheel Flange
- Table Splash Guard (Rear)
- Spindle Motor Frequency Inverter for Variable RPM
- Hydraulic Oil Chiller
- Custom Freight

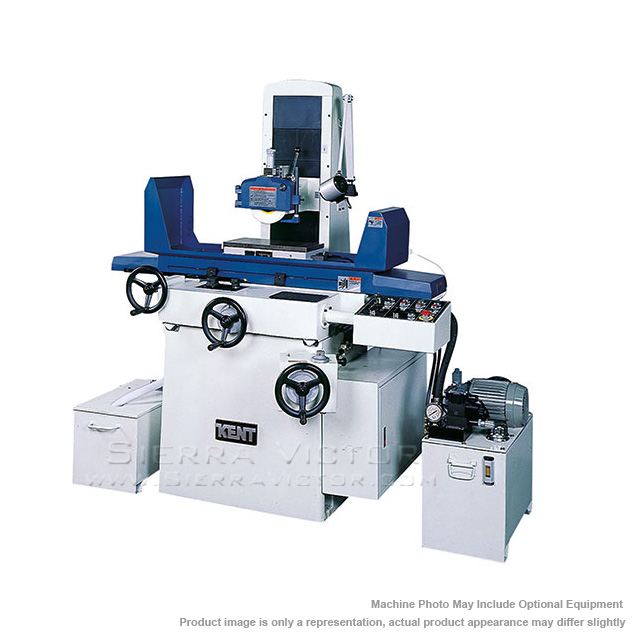

KENT 8" x 18" Automatic 3-Axes Surface Grinder KGS-250AHD
ITEM: 8" x 18" Automatic 3-Axes Surface Grinder
MANUFACTURER: KENT
MODEL: KGS-250AHD
Manufacturer:
Kent
Grinder/Sander Size:
8" x 18"
Machine Type
Machine Category:
Grinders - Surface
Control:
Automatic
MODEL
|
KSG-250AHD
|
|
Capacity |
Overall table working area (in.) |
8 x 18 |
Longitudinal table travel (in.) |
21.25 |
|
Crossfeed table travel (in.) |
10.5 |
|
Distance spindle center to table (in.) |
18.6 |
|
Grinding Wheel |
Wheel dimension (Dia. x W x Bore) (in.) |
8 x 3/4 x 1-1/4 |
Spindle speed |
3480 rpm |
|
Vertical Movement |
Vertical on MPG / Handwheel 1 gra |
0.0005 in. |
Vertical on MPG / Handwheel 1 rev |
0.1 in. |
|
Auto downfeed increment |
0.0001-0.001 in. |
|
Motor |
Spindle motor |
2 HP (3 hp optional) |
Dimension and Weight |
Machine height |
70 in. |
Floor space |
81 x 57 in. |
|
Net weight |
2,860 lbs. |
|
Gross weight |
3,300 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
