- Description
- The K12-14MS 14 inch metallurgical saw is an industrial lab tool for used steel sample cutting. This wet saw can produce clean and bright cuts when using the correct cutoff wheel for your steel.
- This lab saw is designed for the following:
- Heat treat penetration
- Weld check penetration
- Destructive testing
- Hardness test
- Semi-automatic air/oil power down feed
- Adjustable feed rate 0-12 FPM, Momentary rapid override for rapid approach
- Dual moveable 4" screw vises
- Magnetic switch, low-voltage protection at the switch, 24V
- Internal halogen light – 24V
- 1" wheel arbor, 12" or 14" blade, (not included), Optional 1.25" /32mm arbor
- Dual coolant nozzles
- Oscillation
- Steel enclosure with hinged doors
- Removable maintenance access panel (rear of enclosure)
- Removable infeed and outfeed panels
- Made in USA!
- The K12-14MS 14 inch industrial wet abrasive metallurgical cutoff saw is used in the following industries: Energy, Oil/Natural Gas, Met Labs, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
- Manufacturer
- Specifications
- Options/Accessories
- 710-052 door safety interlocks: $CALL
- TS-14 t-slot table: $CALL
- AV-14 air-operated jawed vise: $860.00
- KW-1 spindle wrench: $CALL
- Custom Freight
- Video

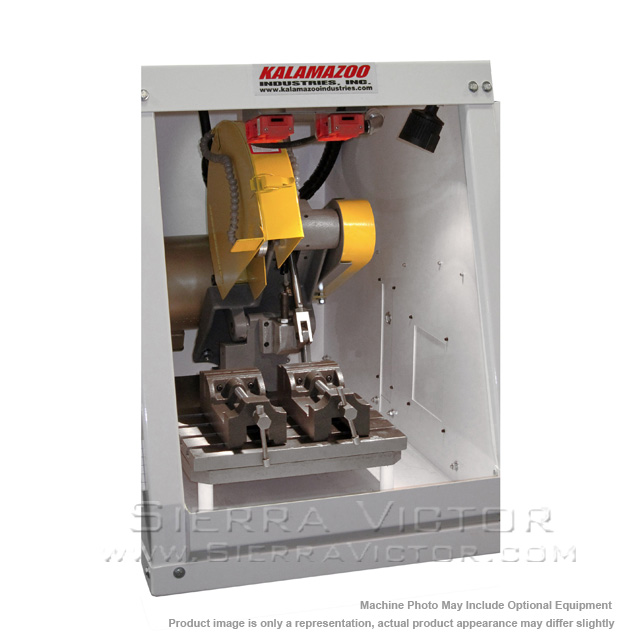

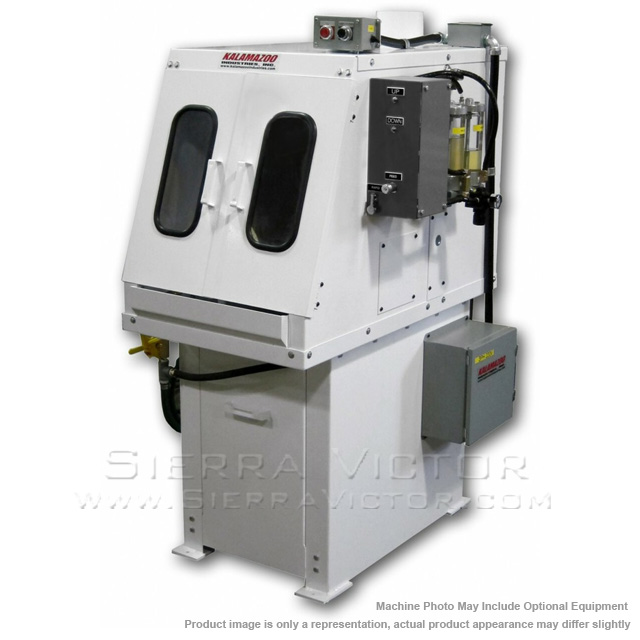

KALAMAZOO K12-14MS 14" enclosed wet cutting metallurgical saw
ITEM: 12" - 14" Metallurgical Saw with Power Head
MANUFACTURER: KALAMAZOO
MODEL: K12-14MS
Manufacturer:
Kalamazoo Industries
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Metallurgical
Metalworking
Saw Capacity:
12"+
Capacity |
2-1/2 in.solid, 3 in.shapes |
Motor |
5 HP, 3 PH, 1725 RPM TEFC motor |
Saw FLA’s for 60HZ |
230V 13.4 amps and 460V 6.7 amps |
Wheel size |
14 in. (blade not included) |
Spindle arbor |
1 in. |
Spindle Speed |
2200 RPM |
Adjustable feed rate |
0-12 FPM |
Flood coolant |
10 gal., 1/3 HP |
External Dimensions |
L 43 x W 26 x H 60 in. |
Shipping Dimensions |
L 58 x W 58 x H 77 in. |
Shipping Weight |
1,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
