- Description
- The K12-14B 14 inch heavy duty abrasive chop saw is a powerful tool that can be used to cut a variety of materials, including mild steel, pipe, and angle iron effectively up to 2.5" solid or 3" pipe along with angle iron, flat stock with the correct abrasive cutoff blade for your material. It has a 5HP motor and accommodates a 14" abrasive wheel, which gives it the power to make fast, clean cuts. The saw also has a number of safety features, including a steel-hinged wheel guard and a magnetic on/off switch.
- Cutoff wheel diameter: 14 in. (abrasive wheels only)
- NOTE: capacities are based on mild steel.
- Extra-heavy cast iron base
- Extra-heavy cast iron trunnion
- Extra-heavy cast iron saw arm
- Sealed spindle ball bearings
- Steel-hinged wheel guard.
- Magnetic on/off push button switch
- Dual V-belt driven
- Replaceable v-belt guard
- Adjustable backstop
- Replaceable v-belt guard
- Replaceable saw handle
- Replaceable single cam lock vise
- Replaceable front and rear cast-iron vise jaws
- Benefits
- Magnetic on/off switch
- Heavy-duty cast iron construction
- 5HP motor
- 14" abrasive wheel
- Replaceable saw parts
- Designed to cut the following:
- Cut steel
- Cut pipe
- Cut angle iron
- Manufacturer
- Specifications
- Options/Accessories
- 051-035 v-belt tensioning tool
- KAB14R 14" abrasive cutoff wheel (for mild steel only)
- KW1 14" cutoff saw spindle wrench
- Custom Freight

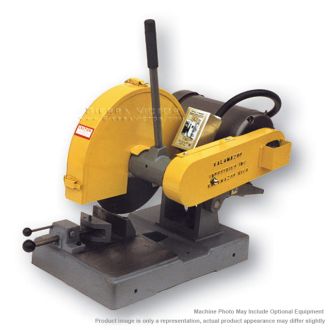

KALAMAZOO 14 in. Abrasive Chop Saw K12-14B
ITEM: 12" - 14" Bench Industrial Abrasive Chop Saw
MAKE: KALAMAZOO
MODEL: K12-14B-1 / K12-14B-3
Manufacturer:
Kalamazoo Industries
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Chop/Cut-off
Metalworking
Saw Capacity:
12"+
Abrasive Wheel
|
14 in.
|
Capacity
|
2.5" Solid Round, 3" Pipe
|
Spindle Speed
|
4400 RPM
|
Motor
|
5HP, TEFC motor, 1 phase 220v or
5HP, 3 phase 220 or 440 volt. (Please specify) |
3PH amp draws |
230V 12 amps and 440V 6 amps |
1PH amp draw |
19.5 amps |
Wheel arbor
|
1 in.
(1.25 spindle also arbor available)
|
Shipping Dimensions
|
L 38 x W 36 x H 36 in.
|
Shipping Weight
|
250 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
