- Description
- HS14ASPH is outfitted with a 5HP 1PH, 220V (only) or 3PH, 220V or 440V (specify voltage), air/oil power down feed system (shop air required), 1 spindle arbor that travels at 4400 RPM, retractable steel clam shell guard and magnetic on/off push button switch.
- This unit is designed to house either a 12 or 14 high speed carbide toothed blade and designed to mouth on existing base that you have designed for your application.
- Non-ferrous arm assembly
- Semi-automatic
- Air/oil down feed, 0-12 fpm
- OSHA guard for carbide tipped blades
- 1" arbor, LH thd.
- 4 bolt mount
- Magnetic on/off switch
- Please specify phase and voltage
- Designed to Cut:
- Aluminum
- Brass
- Copper
- All factory parts are replaceable no matter the age of the saw!
- These products have application in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments that handle non-ferrous materials.
- Manufacturer
- Specifications
- Options/Accessories
- PH-14: Power down feed: 3,100.00
- AV-18: Air Vise: $890.00
- Metered drip system: $CALL
- Custom Freight
- Video

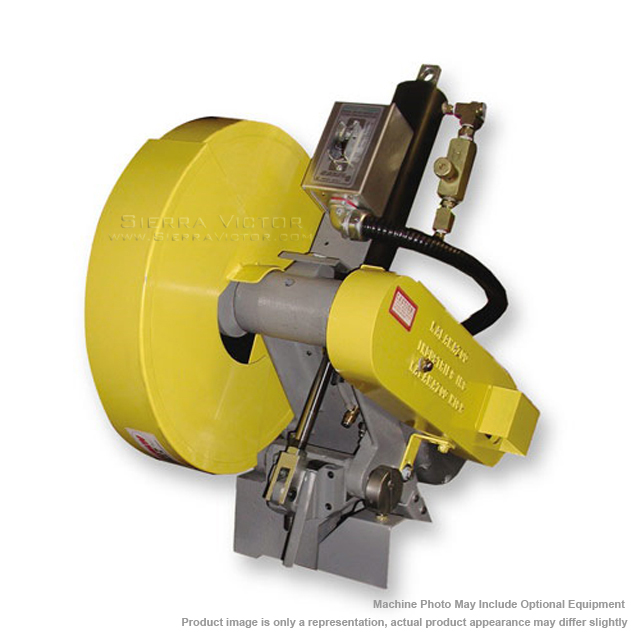

KALAMAZOO HS14ASPH 14″ Semi-Auto Non-Ferrous Saw Head
ITEM: 12" - 14" Semi-Auto Non-Ferrous Saw Head
MANUFACTURER: KALAMAZOO
MODEL: HS14ASPH
Manufacturer:
Kalamazoo Industries
Machine Type
Machine Category:
Saw Arm Assembly
Control:
Semi-Automatic
Material Type:
Non-Ferrous
Metalworking
Saw Capacity:
14"+
Blade |
12 - 14 in. |
Motor |
5 hp,3 ph - 220/440 volt 60 hz (specify 3PH voltage at time of order) or 1PH, 220V ONLY - please specify phase 3PH amp draws: 230V 12 amps and 440V 6 amps. 1PH amp draw: 19.5 amps |
Arbor |
1 in. LH thd. |
Air/oil down feed |
0-12 fpm |
Shop air required |
50 to 60 PSi |
Spindle Speed |
4,400 RPM |
Weight |
235 lbs. |
Shipping Dimensions |
L 38 x W 39 x H 38 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
