- Description
- The S612V is a universal belt and disc sander that works with all sanding belt and disc configurations so you can get your required finish. This combination sander comes with a multi-point sanding head, powerful motor, platen, vacuum base, and adjustable work tables to help you set your angles.
- Made in the USA
- Belt size: 6 x 48 inches
- 3HP 1PH 220 OR 3HP 3PH 220 and or 440 volt TEFC motor.
- An on/off push magnetic button switch.

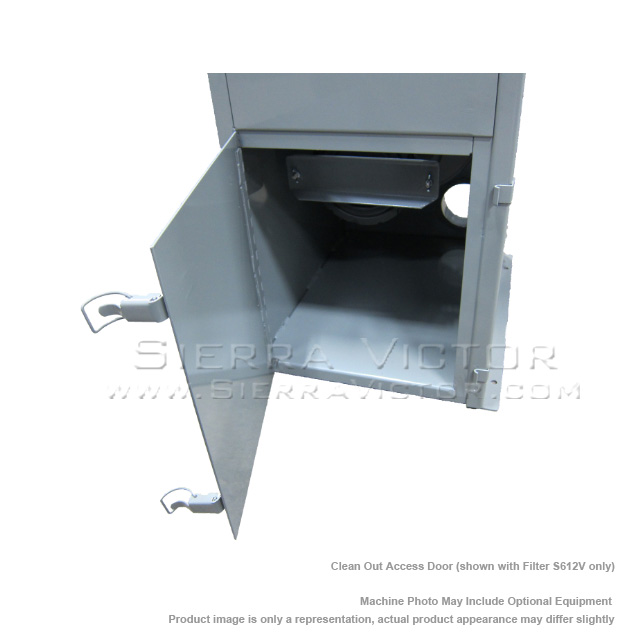

- Steel base with built-in 100 CFM dust collector with a replaceable filter

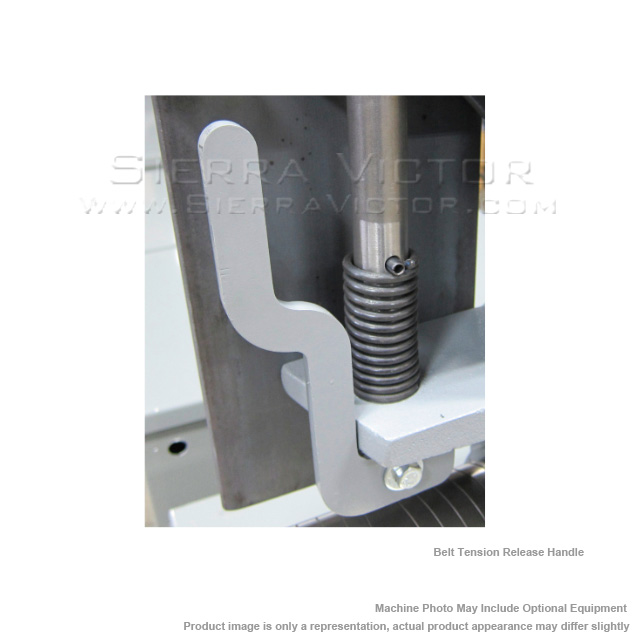

- Quick change belt, pre-tensioned one lever belt change
- Belt Sander multi-position horizontal/vertical
- Dual v-belt driven
- DESIGNED TO DO THE FOLLOWING:
- Beveling
- Deburring
- Squaring-up ends
- Round flat corners
- Polishing
- Rust removal
- Material clean up
- Roughing
- Flatwork
- Manufacturer
- Specifications
- Custom Freight
- Video

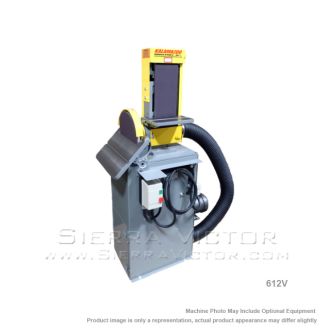

KALAMAZOO 6 x 48 in. Belt x 12 in. Disc Combination Sander, Vacuum Base S612V
ITEM: 6" x 48" Belt, 12 in. Disc Combination Sander with Vacuum
MANUFACTURER: KALAMAZOO
MODEL: S612V
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
6"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Combination
Belt Dimensions |
6 x 48 in. |
|
Belt Machine |

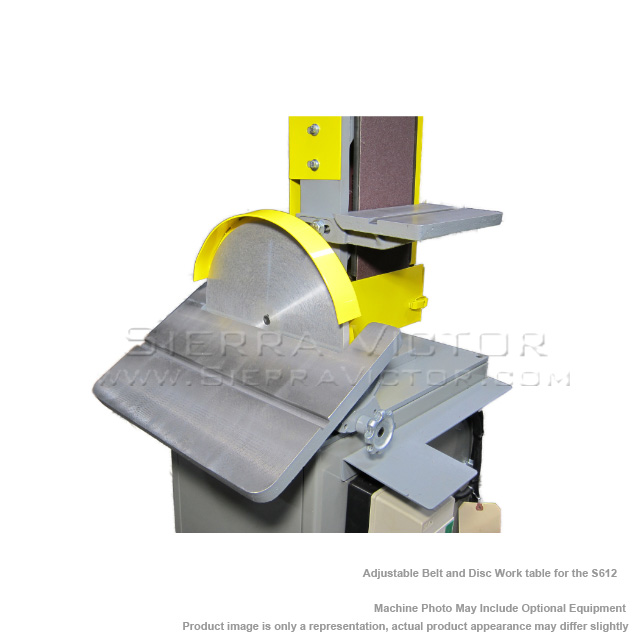

Work Table - Cast iron |
6 x 10 in. with 5/8th slot |
Platen - Steel |
6-1/2 x 14 in. |
|
Belt Speed |
2,800 SFPM |
|
Disc Machine |
Work table - Cast Iron |
7.75 x 16.5 inch with 5/8th slot |
Disc Diameter |
12 in. |
|
Arbor |
5/8 in. |
|
Disc Speed |
2,500 SFPM |
|

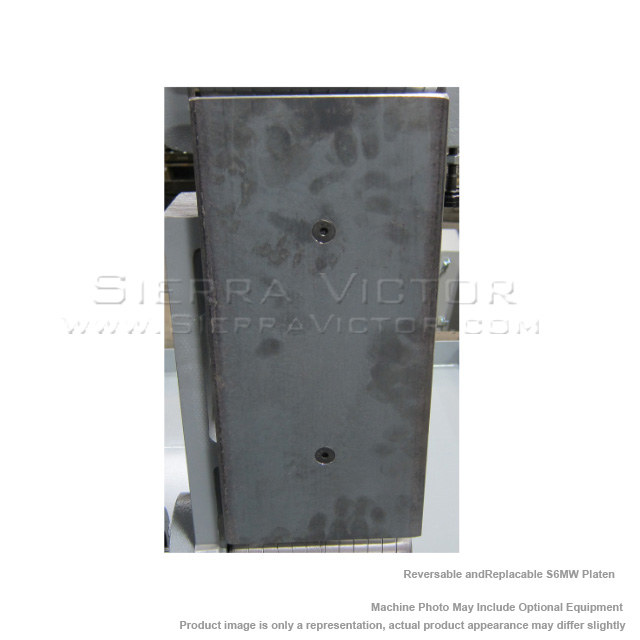

Steel reversible and replaceable platen |
6-1/2 x 14 in. |
|
Disc worktable dimensions |
L12 x W14 x H 60 in. |
|
Motor |
3HP, 1PH, 220 OR 3HP, 3PH, 220 and/or 440 volt, TEFC motor. |
|
Amps |
3PH FLA 230V 8 amps / 460v 4 amps. |
|
1PH FLA 115V 24 amps / 230V 12 amps |
||
Vacuum motor |
3PH 230V 2 amps and 460V 1 amp. |
|
1PH 230V (only) 3.5 amps |
||
Shipping Weight |
425 lbs. |
|
Shipping Dimensions |
L 45 x W 33 x H 65 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
