- Description
- DS10 10 inch industrial disc sander with the appropriate grit is an effective tool for deburring, flatwork, edge work, and trueing outside curves. The machine features a 10 disc sander, a steel base with 100 CFM vacuum, adjustable steel work table.
- 1/2 HP 1 PH 115V TEFC motor.
- 10" aluminum backing disc
- On/off disc sander toggle switch
- Sander power cord
- On/off vacuum toggle switch
- Vacuum with a separate power cord
- One PSA adhesive sticky sanding disc
- An adjustable steel worktable that’s adjustable from 90° to 45° down
- Steel base with a built-in 100 cfm vacuum
- Base adaptor top for the disc sander
- Hinged locking access door in the base so the operator can clean out the vacuum system
- Replaceable Cloth filter bag # 5X878
- Steel disc guard
- Made in the USA!
- DESIGNED TO DO THE FOLLOWING:
- Flatten ends
- Deburr
- Sand
- Clean up
- Sand at different angles/positions
- WHAT MATERIAL CAN THIS EQUIPMENT SAND?
- Metal
- Aluminum
- Wood
- Manufacturer
- Specifications
- Options/Accessories
- 5X878: CLOTH BAG (for DCV-4 Vacuum): $CALL
- MG-10: Mitre Gauge: $47.00

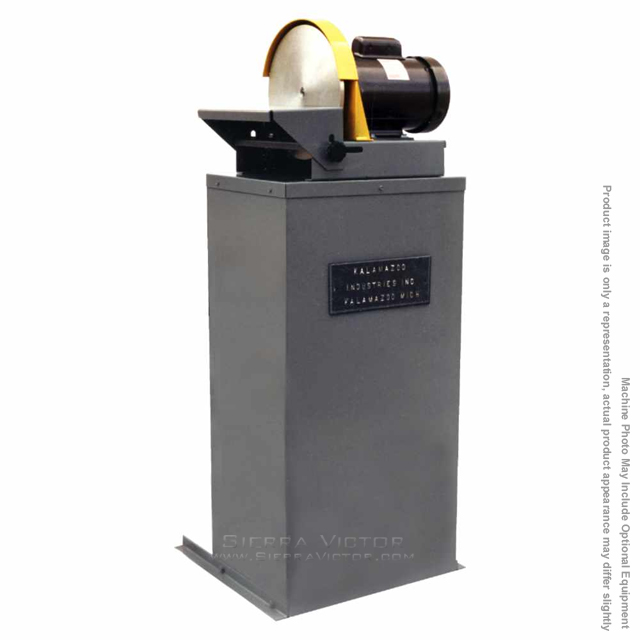

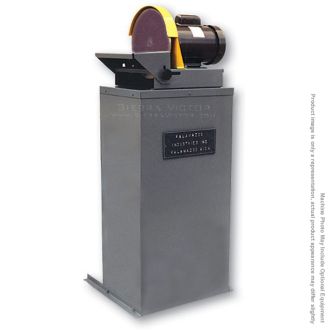

KALAMAZOO 10 inch disc sander & vacuum base DS10V
ITEM: 10" Disc Sander with Dust Collector
MANUFACTURER: KALAMAZOO
MODEL: DS10V
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
10"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Disc
Disc Diameter |
10 in. |
Motor |
1/2 HP, 1 PH, 115V TEFC motor |
Sander FLA’s |
115V 7.4 amps |
Vacuum FLA |
115V 8.2 amps |
Adjustable Worktable |
90° to 45° down |
Sander shipping dimensions |
L 19 x W 14 x H 14 in. |
Dust collector shipping dimensions |
L 20 x W 20 H 37 in. |
Shipping Weight |
115 lbs. (Ships in two boxes) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
