- Description
- The DS10-2M is a heavy-duty, versatile combination belt and disc sander. This 1/2HP 1PH machine works with all sanding belts and discs, which allows you to deburr, polish, clean, and sharpen many different materials. To help you expedite the material finishing process, you can operate this unit with two different grits.
- 1/2 HP 1 PH 115V motor.
- Disc sander: 10" disc.
- Belt sander: 2" x 48"
- Multi-position belt sander head
- Spring belt tension.
- Belt changing lever (located on guard)
- Steel construction.
- Removable and replaceable steel platen
- The belt sander steel platen is adjustable and replaceable
- The disc sander work table is flexible. Adjusts from 0°– 45° with locking table knobs on the left and right side of the work table.
- Machine shipping weight: 120 lbs. (SHIPS BY TRUCK ONLY)!
- WHAT GRITS CAN BE USED:
- All grit types can be used on this sander to get your desired surface finish. Having one grit on the belt and another on the PSA adhesive disc improves the finishing time and doesn’t affect the machine’s performance.
- Manufacturer
- Specifications
- Options/Accessories
- Mitre gauge (MG-10)
- Stand (12-W)

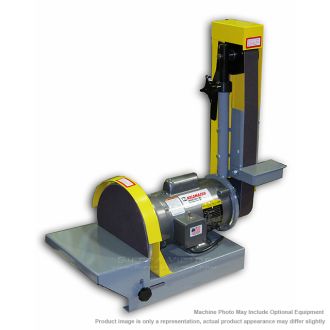

KALAMAZOO 2 in., 10 in. Disc Combination Sander DS10-2M
ITEM: 10" Disc / 2" x 48" Belt Combination Sander
MANUFACTURER: KALAMAZOO
MODEL: DS10-2M
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
10"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Combination
Disc Diameter |
10 in. |
Belt Sander |
2 x 48 in. |
Motor |
1/2 HP 1 PH 115V motor. |
1PH FLA |
115V 7.4 amps and 230V 3.7 amps |
Flexible Work Table |
Adjusts from 0°– 45° |
Shipping dimensions |
L 21 x W 31 x H 33 in. |
Shipping Weight |
120 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
