- Description
- The S272V 2 x 72 Inch grinder with vacuum is a versatile and powerful belt grinder that is ideal for a variety of metalworking applications. It features a 1HP motor, a 2" x 72" belt, 3" and 1.5" serrated contact wheels, a rotating platen, an adjustable work rest, and a vacuum system with a reusable filter.
- Platen rotates 360 degrees for many different shapes and styles of heavy metal grinding.
- Sperate on/off switches for the grinder and dust collector.
- Belt size: 2" x 72"
- Quick release lever for fast sanding belt change.
- Rapid change contact wheel with various angles easy to change.

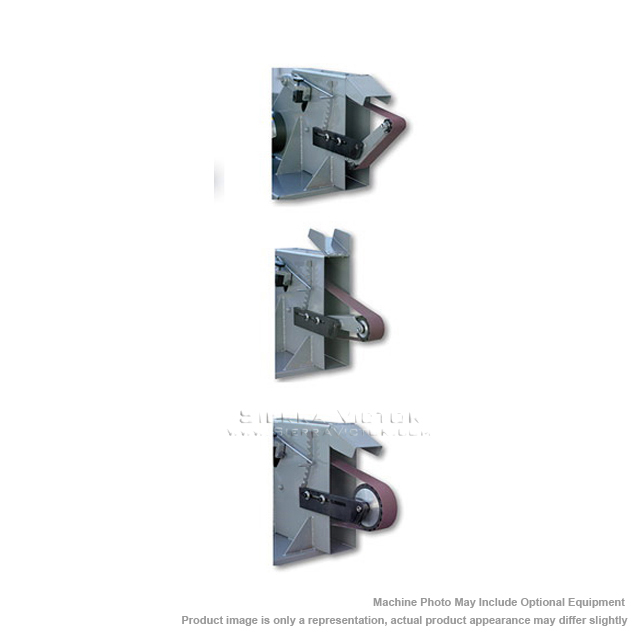

- 3" and 1.5" serrated contact wheels on rotating platen.

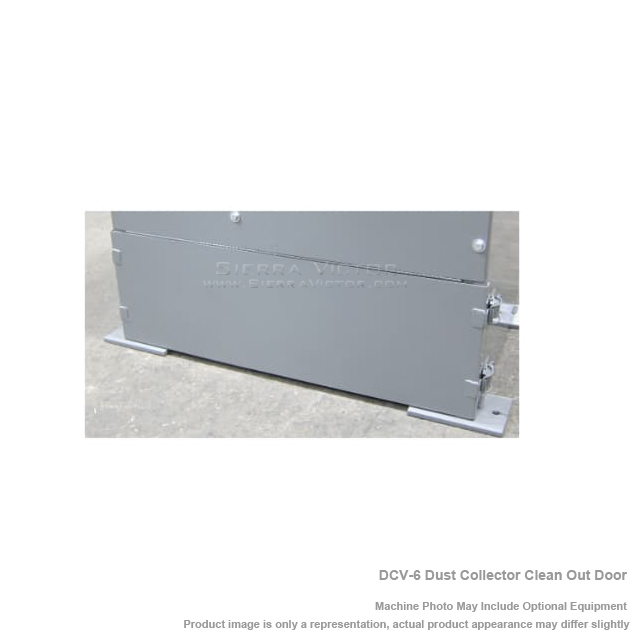

- Mounted on DCV-6 dust collector base with cleanout.

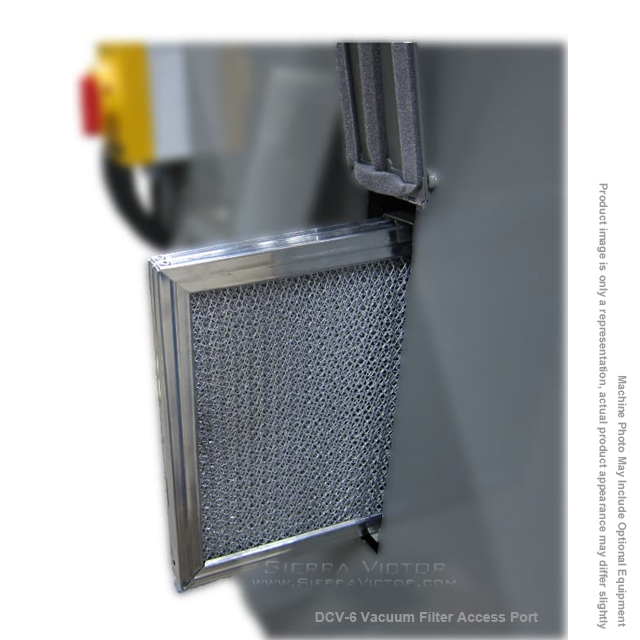

- Reusable steel mesh filter.
- DESIGNED FOR THE FOLLOWING APPLICATIONS:
- Bevel
- Deburring
- Squaring up ends
- Round Corners
- Flatwork
- Contouring
- Heavy metal removal
- Notching
- Grind metal fast
- Grind steel fast
- Manufacturer
- Specifications
- Custom Freight
KALAMAZOO S272V 2 X 72 multi-purpose belt grinder & vacuum base
ITEM: 2" x 72" Multi-Purpose Belt Grinders
MANUFACTURER: KALAMAZOO
MODEL: S272V
Manufacturer:
Kalamazoo Industries
Grinder/Sander Size:
2"+
Machine Type
Machine Category:
Grinders
Machine Sub-Category:
Belt
MODEL
|
S272V
|
Motor
|
1 HP 1PH or 3PH, 115v/230v/460v
(specify phase and voltage at the time of order). |
Grinder 1PH amp draws
|
115V amp draw 11.8 amps and 230V 5.9 amps.
|
Grinder 3PH amps draws
|
230V 2.8 amps and 460V 1.4
|
Vacuum 1PH FLA
|
115V 11.8 amps and 230V 5.9 amps.
|
Vacuum 3PH FLA
|
230V 2.8 amps and 460v 1.4 amps.
|
Belt Speed
|
5,400 SFPM
|
Belt Dimensions
|
2" x 72"
|
Shipping Weight
|
350 lbs.
|
Shipping Dimensions
|
L 36 x W 43 x H 53 in.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
