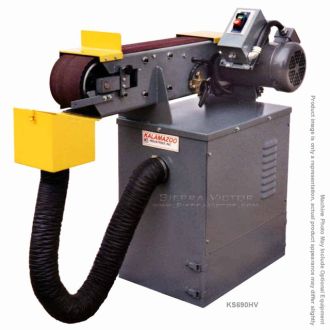

KALAMAZOO KS690HV 6″ Horizontal Belt Grinder

• Do you need to remove large amounts of steel? The KS690HV-5 6 x 90 inch grinder with vacuum belt speed is 7200 SFPM and a powerful 5HP motor. Other KS690HV-5 belt grinder features is all steel construction, 8" OD x 6" W 70 duro serrated contact wheel, multiple grinding locations, a vacuum system, and spring belt tension.
• Powerful 5 HP 3 PH belt sander (220/440V) – please specify voltage at the time of order.
• Belt size: 6" x 90" (all belt types can are useable).
• Grinder switch: Magnetic on/off switch.
• Vacuum switch: rotary on/off switch.
• Sealed ball bearings.
• Belt grinder speed: 7200 SFPM.
• 24 – 1/2" long reversible and replaceable steel platen.
• Mounted on DCV-6 steel dust collector system
• Dust collector CFM: 400 CFM with reusable steel mesh filter (located in base) and hinged steel access door for easy debris clean out (located in the vacuum base).
• A Steel debris chute with a 4" vacuum port.
• Adjustable steel worktable.
• Reusable and replaceable steel mesh filter.
• Removable steel belt guard.
• Work stop (located on top of the machine).
• Fixed belt grinder head.
• Spring belt tensioning with lever designed to extend or retract grinder yoke quickly.
• A steel side-hinged access guard.
• All steel construction.
• Adjustable steel work table.
• WHAT THIS MACHINE IS DESIGNED TO DO:
  • Beveling
  • Deburring
  • Descaling
  • Polishing
  • Finishing
  • Tool sharpening
  • Aggressive grinding
  • Fast and cool metal removal
  • Heavy grinding
  • Aggressive metal removal
