- Description
- CE standard fully enclosed protection
- Electric Appliance:
- Door open automatic power off function
- CE Electrical Safety
- Main drive permanent magnet motor
- Clamp and guide head anti-collision device
- Blade breakage detector
- Sawing Depth Control Device
- HMI
- Inverter
- Out of square detector
- Hydraulic:
- Hydraulic Blade tension
- Vise differential pressure valve
- Automatic chip conveyor
- Hydraulic saw guide clamping system
- Vise pressure regulator
- Power brush
- Automatic lubrication device for guide rail
- Roller type work table
- 2M unpowered roller table
- Mechanical structure:
- Main drive precision gear reducer
- Single Vise Clamping
- Split Vise clamping (Non-Optional)
- Guide arm movement Power
- Manufacturer
- Specifications
- Custom Freight

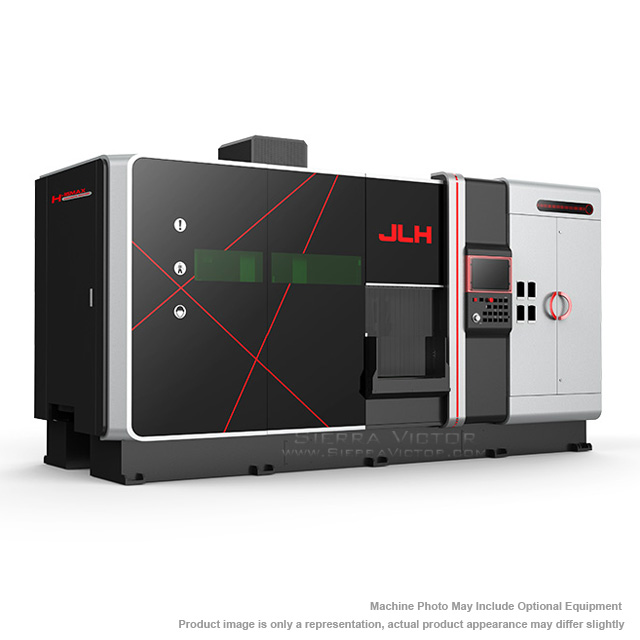

JLH 16 in. Hi-Tech Bandsaw H-16MAX
ITEM: 16 in. Hi-Tech Bandsaw
MANUFACTURER: JLH
MODEL: H-16MAX
Manufacturer:
JLH
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Hi-Tech
Metalworking
Saw Capacity:
16"+
|
MODEL
|
H-16MAX
|
|
|
Maximum Cutting Capacity
|
Round
|
16.93 in.
|
|
Square
|
16.93 x 16.93 in.
|
|
|
Saw Blade
|
Speed
|
65.6 - 328.08 fpm
|
|
Size
|
240.16 x 1.6 x 0.05 in.
|
|
|
Motor Output
|
Saw Blade
|
14.74 hp
|
|
Hydraulic
|
2.95 hp
|
|
|
Coolant
|
0.18 hp
|
|
|
Oil Tank Capacity
|
Hyd. Oil
|
18 Gal.
|
|
Coolant
|
44 Gal.
|
|
|
Machine Weight
|
13,229 lbs.
|
|
|
Machine Size (LxWxH)
|
150 x 79 x 88 in.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
