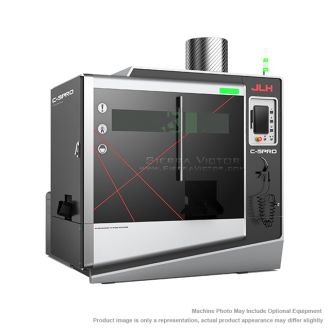

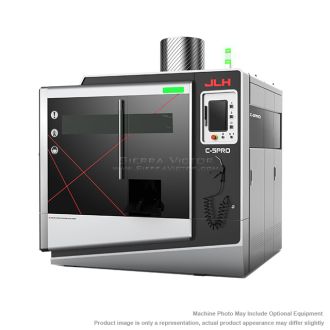

JLH 14 in. Automatic Circular Bandsaw C-5PRO

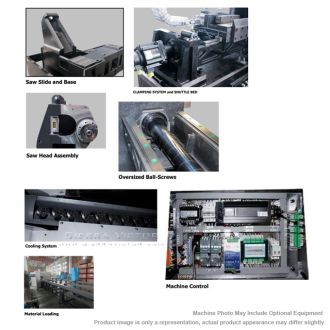

• The saw slide and base is a single piece casting. The slide is slanted at a 45° angle. The rough casting is machined in house on a Okuma 5 axis bridge mill. This is just another way JLH Saws provide the upmost in quality and precision.
• The saw head assemble is a large single piece casting. It is completely machined and assembled in house by JLH master technicians.
• The shuttle vise sysem travels on a large liner rail on both sides of the bed. The main bed of the vise assembly is a robust casting. Vises have hardened wear plates installed. A grade C5 ball screw ensures accuracy and long life.
• Accurate & fast positioning are accomplished through an over-sized C5 grade ball-screw. The head is also used for positioning the saw head assembly.
• The saw is also equipped with a micro-spray coolant system (MQL). The MQL system has fully adjustable coolant time & volume on it for easy control by any operator. The chip conveyor is a hollow core style controlled by a hydraulic motor.
• All JLH C-PRO Series Saws use a magazine type loading system. Some will be gravity feed; some will be a flatbed design. JLH Saws uses the highest quality steel and world class components for years of reliable operation.
• All electrical cabinets are built to international standards. They are well laid out, wired neatly and labeled for ease of repair.
• JLH Saws Control provides latest in PLC based control technology. JLH Saws Control controls are programmable up to 100 different jobs including quantity and length of cut. The control automatically compensates for kerf loss after data input and requires no manual calculation of number of times to index. The control also automatically shutdowns the machine, blade motor, and hydraulics, once the programmed number of cuts or out of stock situation has been achieved. The system includes an error feedback function enabling rapid troubleshooting through an error code to be displayed in the event of a malfunction.
• JLH Saws Control Features include:
  • 10" Touch screen
  • PLC controller
  • 100 individual jobs can be programmed and stored
  • Stored program(s) may be easily recalled and executed at will.
  • Blade Speed Display
  • Optional Blade Deviation Detection monitor can be controlled directly from Touch Screen
  • Automatic Kerf Loss Compensation & Automatic Multiple Indexing up to 999”
  • Error Code Display Provides simplified self-diagnostics.

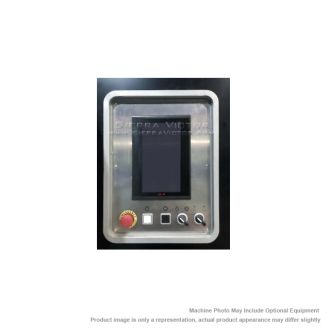

• The operator’s control station is ergonomically located on the front side of the saw. It is convenient and user friendly. All operator controls are positioned on the control station and clearly labeled for ease of operation.
• Fully automatic circular bandsaw
• 10" color touch screen HMI
• PLC controlled color type touch screen display
• Automatic loading system
• Mist, dust collector
• 100 programs to save the all parameters for cutting the same material again
• ± (0.002") cutting length precision for straight cut
• Coolant tank with electric pump for blade lubrication and cooling
• Micro spray lubrication system for saw blade
• Automatic lubrication system for linear guides
• 45° Slant-bed design
• Grade C-5 ball-screws
