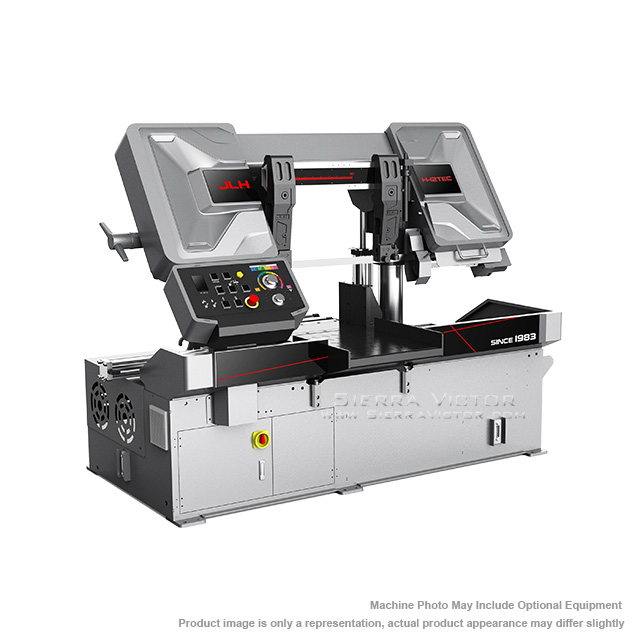

JLH 12 in. Semi-Automatic Bandsaw H-12TEC

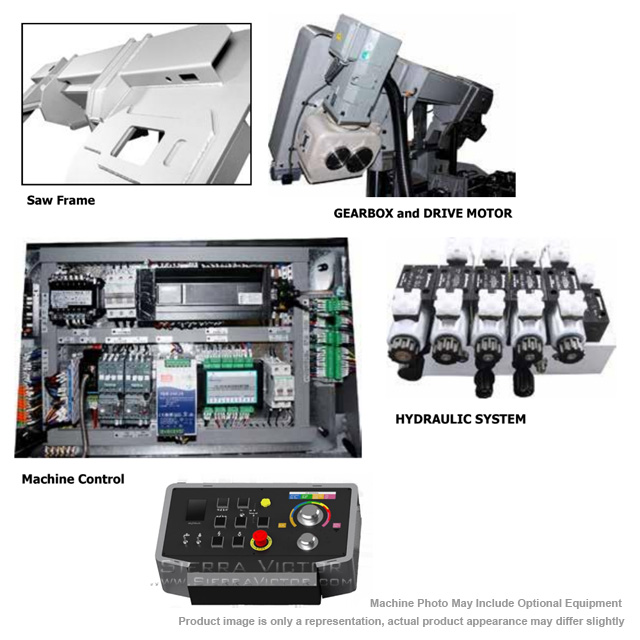

• Saw Frame: The saw is constructed buy laser cutting the various component parts to exacting tolerances. They are then welded in place by state-of-the-art robotic welders in our welding cells. Using robots allow for precise, strong and consistent welds. This is just another way JLH Saws provide the upmost in quality and precision.
• GEARBOX and DRIVE MOTOR: Unlike many bandsaw manufacturers that use a worm and gear type gearbox; JLH Saws uses a highly efficient spiral bevel gear and cylindrical gear combination reducer. The drive motor has a direct connection to the gear box eliminating the need for costly belt replacements. Drive motor is inverter controlled.
• Cooling System: A large coolant tank ensures excellent working conditions for the saw blade and work piece. Electrical coolant pump provides continuously circulation during the cutting process. The saw can also be equipped with a micro-spray coolant system (MQL). The MQL system has fully adjustable coolant time & volume on it for easy control by any operator.
• HYDRAULIC SYSTEM: All JLH Saws use a modern and logical hydraulic system. Using the highest quality world class components for years of reliable operation. the solenoid valve base is made of aircraft grade aluminum for better heat dissipation and ease of maintenance.
• Electrical Cabinets: All electrical cabinets are built to international standards. They are well laid out, wired neatly and labeled for ease of repair.
• Machine Control: JLH Saws Control provides latest in PLC based control technology.
• JLH Saws Control Features include:
  • PLC controller
  • Blade Speed Display
  • Optional Blade Deviation Detection monitor
• The operator’s control station is ergonomically located on the front side of the saw. It is convenient and user friendly. All operator controls are positioned on the control station and clearly labeled for ease of operation.
• TECHNICAL FEATURES:
  • Semi-automatic column type bandsaw
  • Manual dual feed rate and feed pressure controls
  • PLC controlled
  • Heavy duty, spiral bevel gear and cylindrical gear combination reducer
  • Head descends on a ground and chromed over-sized column
  • Coolant tank with electric pump for blade lubrication and cooling
  • Micro spray lubrication system available for saw blade
