Only 1 In Stock at Our Facility and Ready to Ship!
- Description
- The JET 9" x 48" Wide Belt Sander is specifically designed to finish small pieces. With an auto-tracking system that shaves up to 50% off the time it takes to process parts less than 9" in length -and vacuum suction that prevents pieces from shifting-the JT1-550 reliably delivers consistent thicknesses and finishes for multiple materials, including steel, aluminum, and plastic. Equipped with the most modern safety features to increase operator safety, this wide belt sander comes with JET’s signature 2-year full warranty.
- AUTO-TRACKING SYSTEM
- Keeps the abrasive belt aligned, saving up to 300 operator hours per year.
- HIGH TORQUE MOTOR
- 5 HP motor produces exceptional power for continuous operation

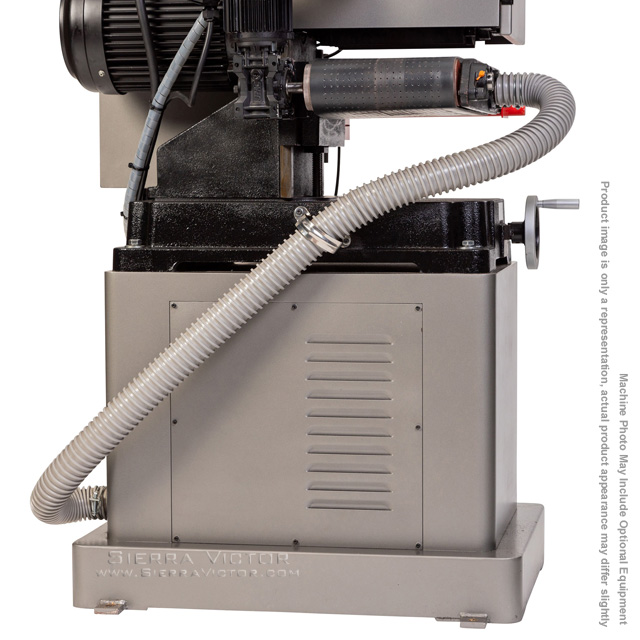

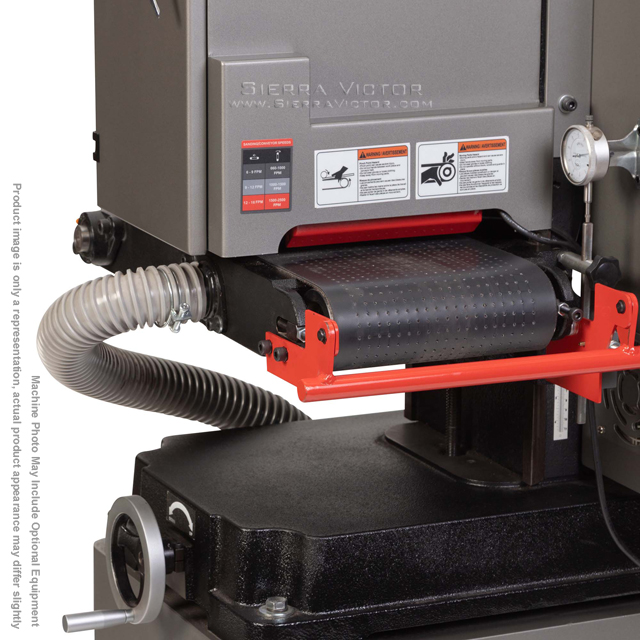

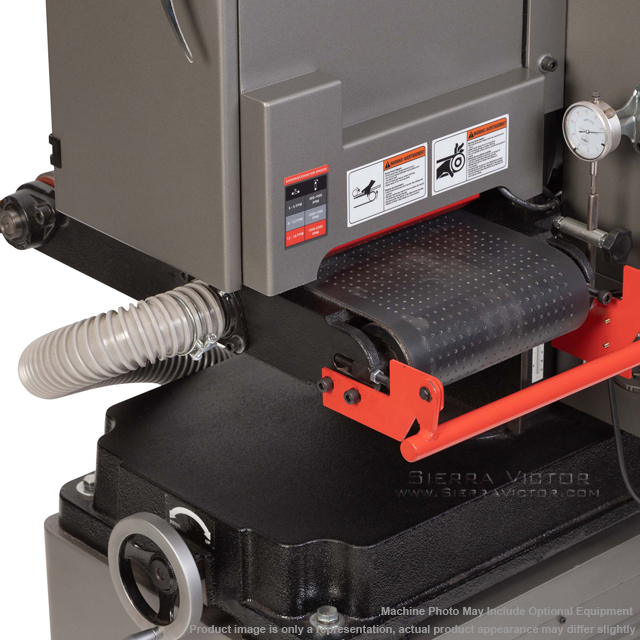

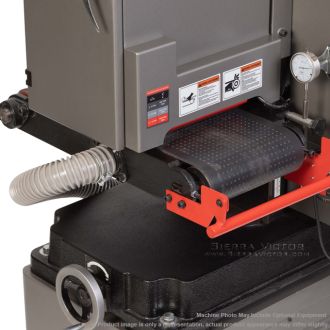

- VACUUM SUCTION
- Holds smaller pieces in place to prevent shifting, resulting in better finishes
- VARIABLE SPEED ABRASIVE BELT
- Can be adjusted to match material type – steel, aluminum, plastic

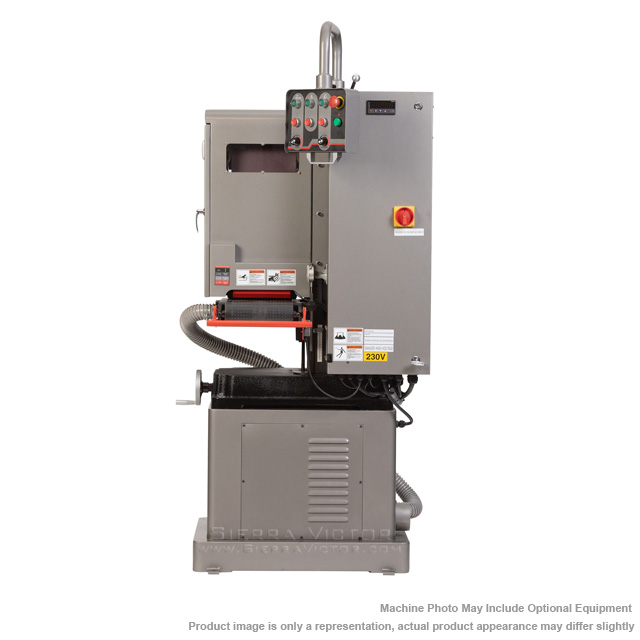

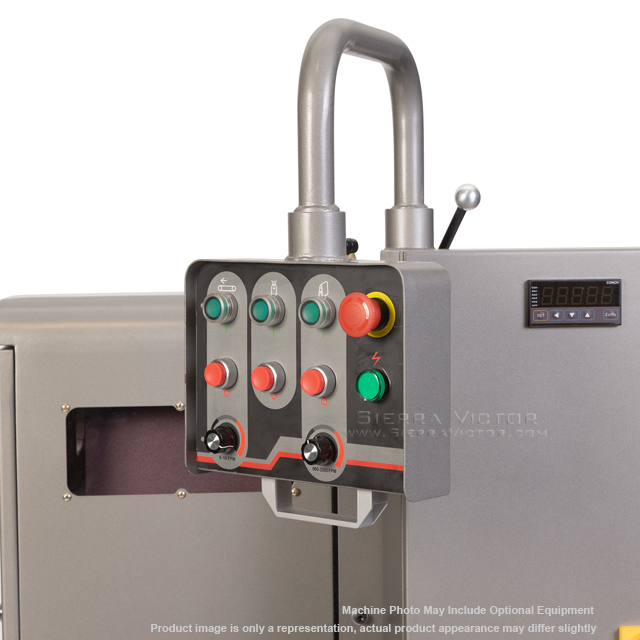

- INTEGRATED SAFETY FEATURES

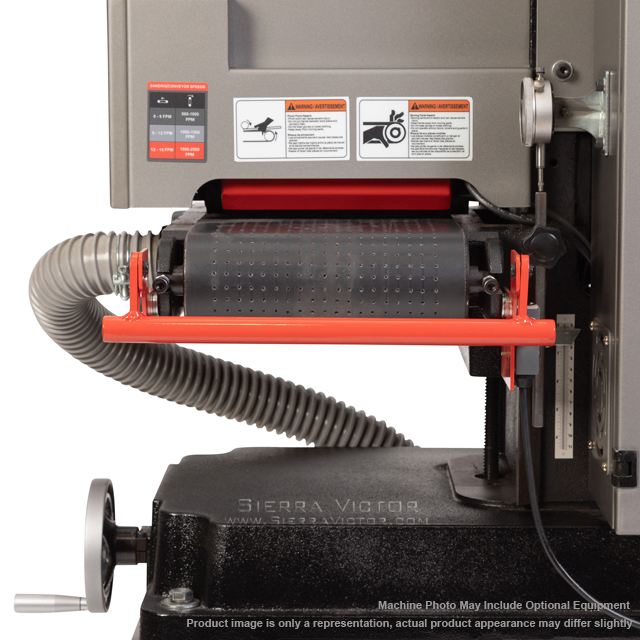

- E-stop button and quick stop bar increase operator safety
- Manufacturer
- Specifications
- Options/Accessories

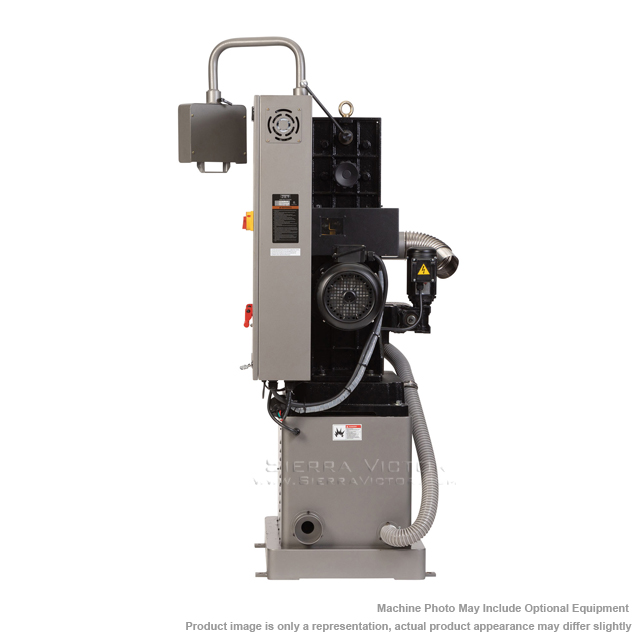

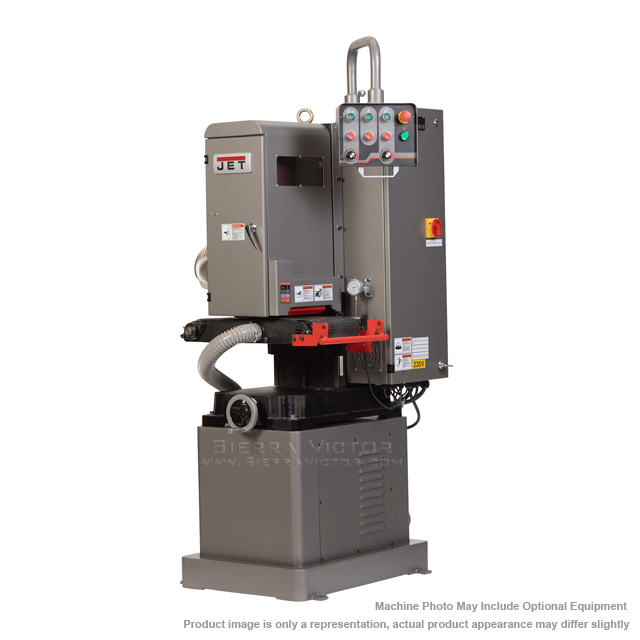

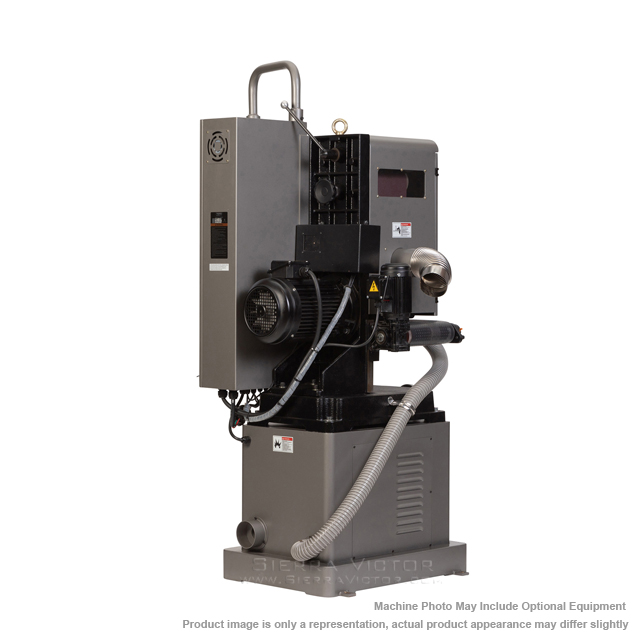

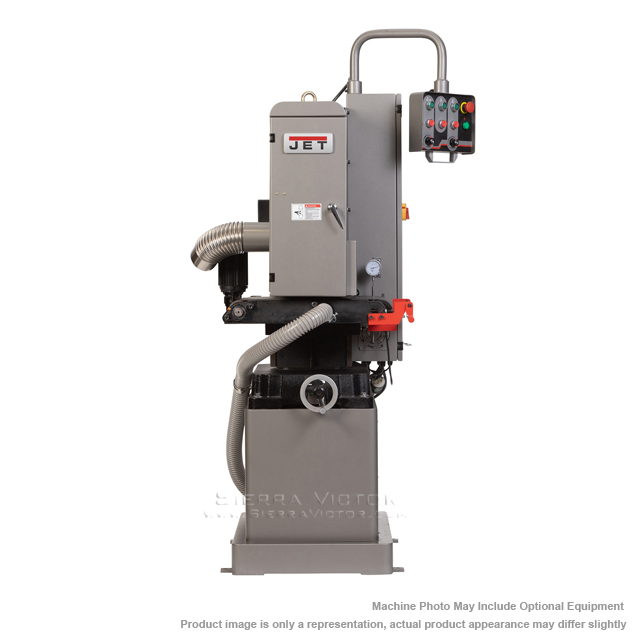

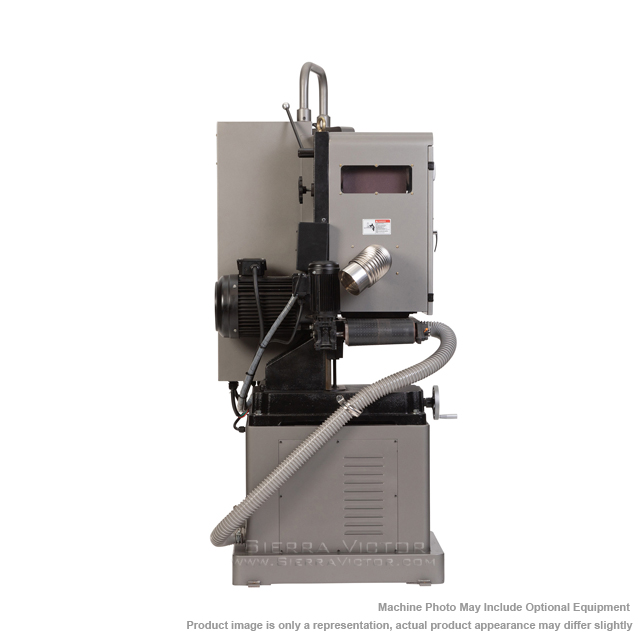

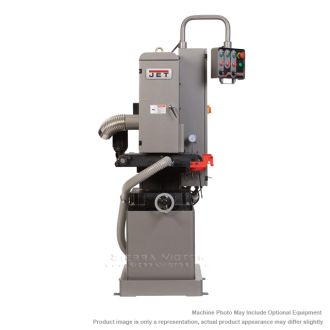

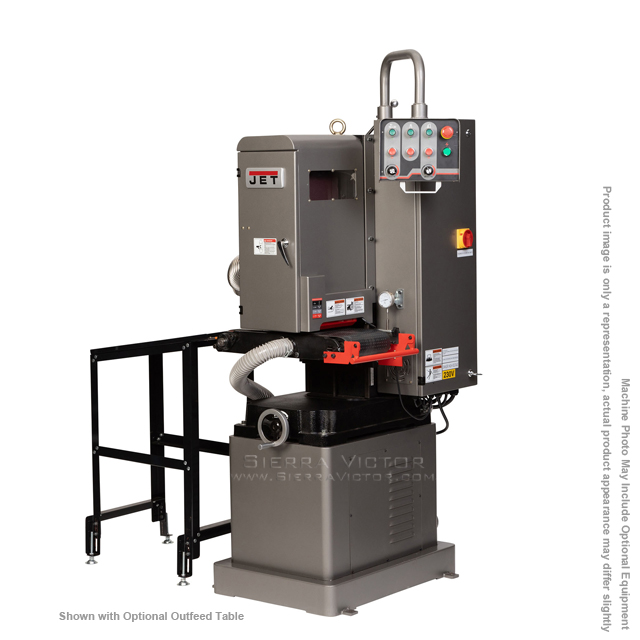

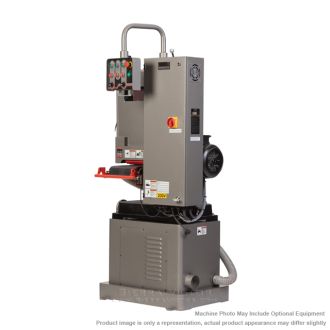

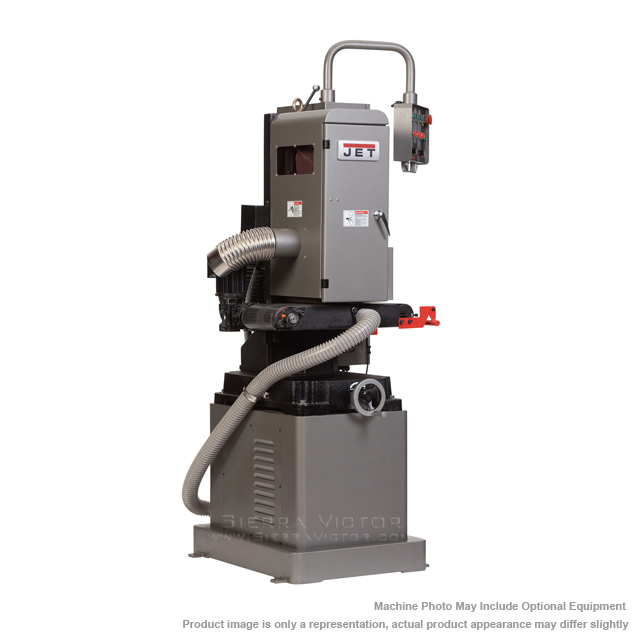

JET J-948WBSV 9 x 48 in. Wide Belt Sander JT1-550
ITEM: 9 x 48 in. Wide Belt Sander
MANUFACTURER: JET
MODEL: J-948WBSV
PART# JT1-550
Manufacturer:
Jet
Grinder/Sander Size:
9"+
Machine Type
Machine Category:
Sanders
Machine Sub-Category:
Wide Belt
|
Abrasive Belt Speed
|
Variable
|
|
Automatic Tracking Abrasive Belt
|
Yes
|
|
Conveyor Belt Speed
|
Variable
|
|

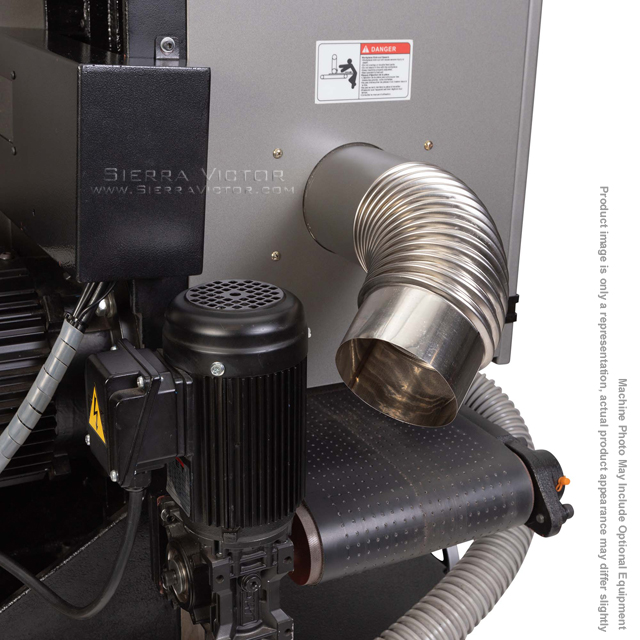

Vacuum Suction Conveyor Belt
|
Yes
|
|
Belt Size (in.)
|
9 x 48
|
|
Maximum Material Width (in.)
|
9
|
|
Maximum Material Thickness (in.)
|
4
|
|
Minimum Material Thickness (in.)
|
1/16
|
|
Minimum Material Length (in.)
|
2 x 2
|
|
Abrasive Drum Speed (rpm)
|
660 - 2500
|
|
Conveyor Drive Speed
|
6 - 16 FPM Variable Speed
|
|
Table Height (in.)
|
32.7 - 36.8
|
|
Dust Ports (Diameter x Quantity)
|
4", 1 port
|
|
Electrics
|
3Ph 230V/460V
|
|
Main Motor
|
5HP, 3Ph 230V/460V
|
|
Conveyor Motor
|
1/4HP, 3Ph 230V/460V
|
|
Conveyor Belt Motor with Vacuum
|
3HP
|
|
Net Weight (lbs.)
|
704
|
|
Gross Weight (lbs.)
|
860
|
|
Dimensions L x W x H (in.)
|
35.1 x 28.9 x 70.5
|
|
Country of Origin
|
Taiwan
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR - Full
PART # |
ITEM |
JT1-551 |

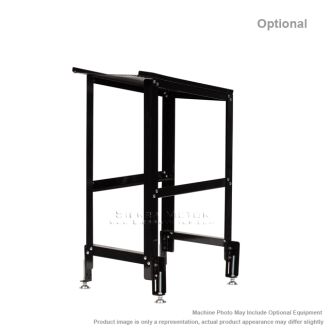

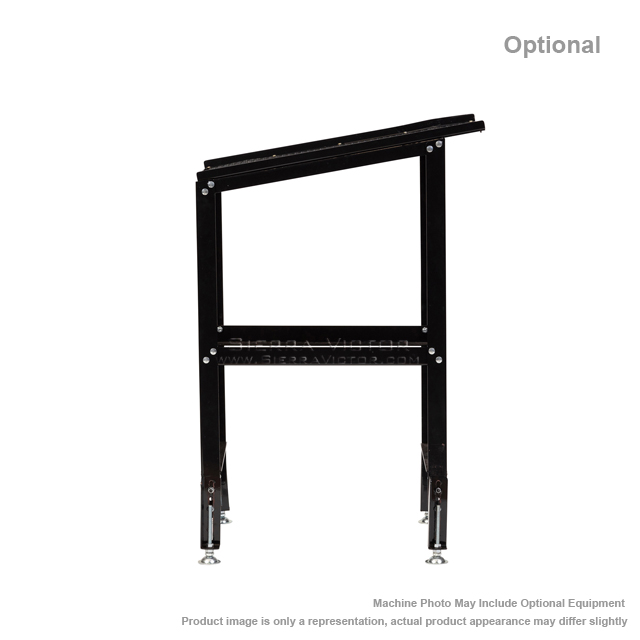

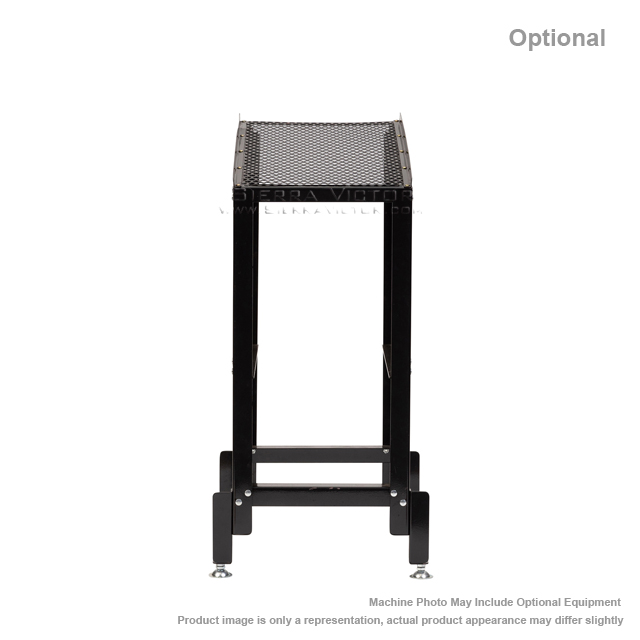

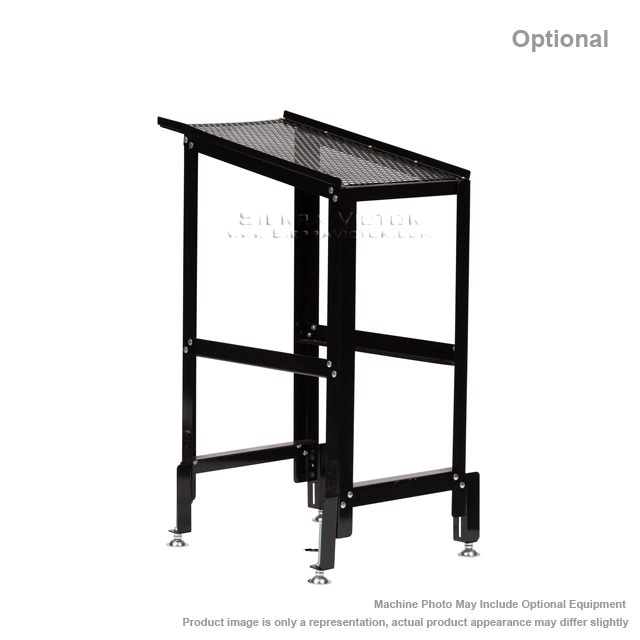

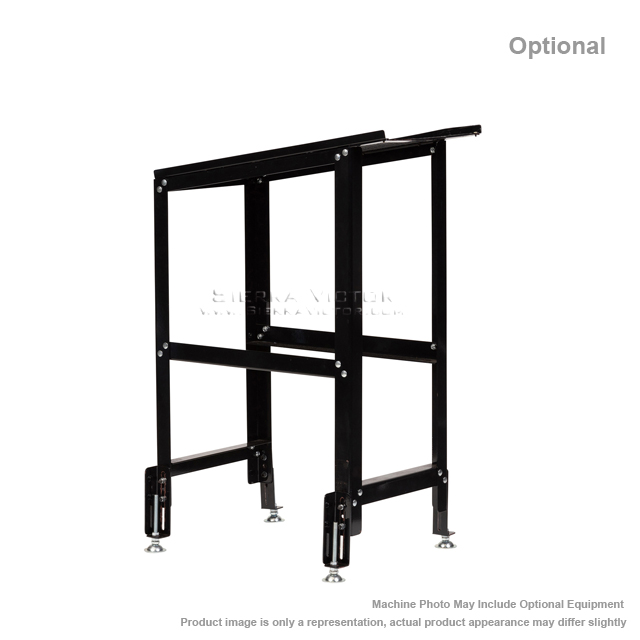

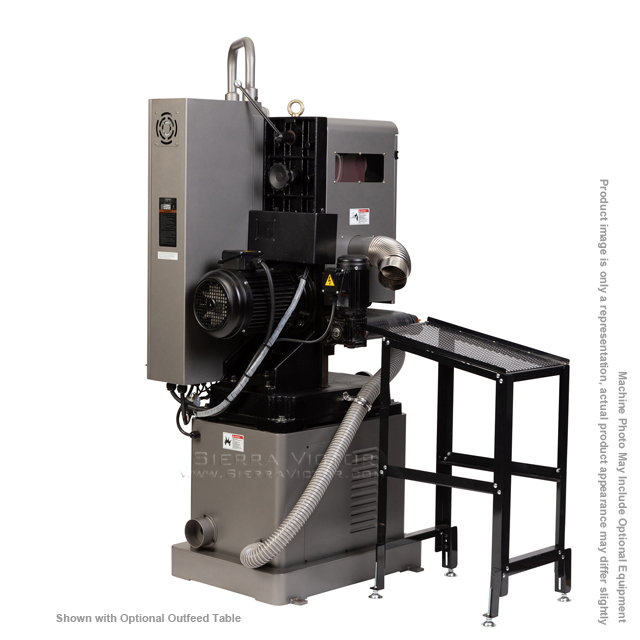

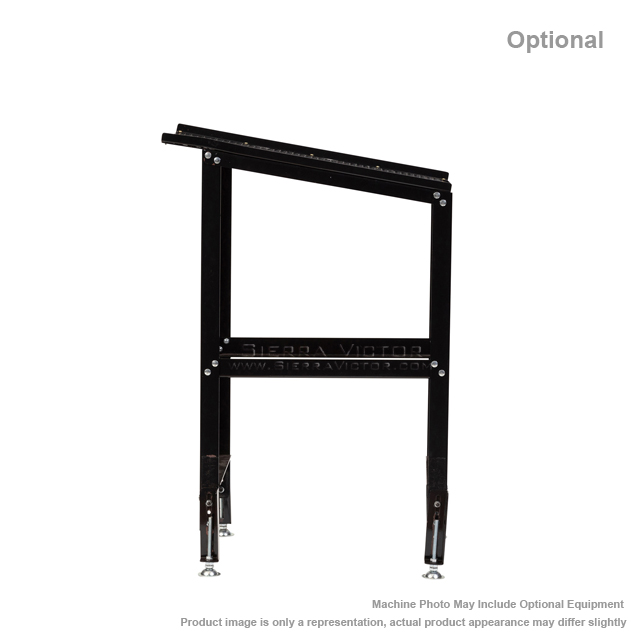

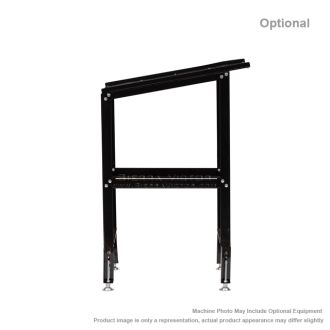

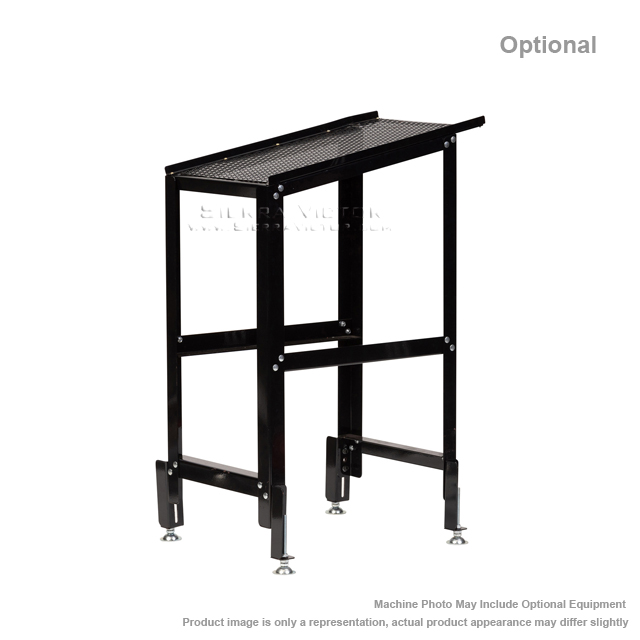

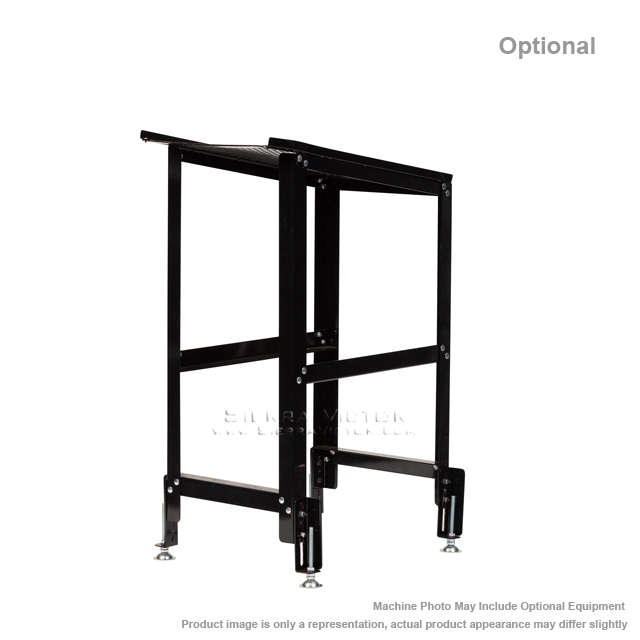

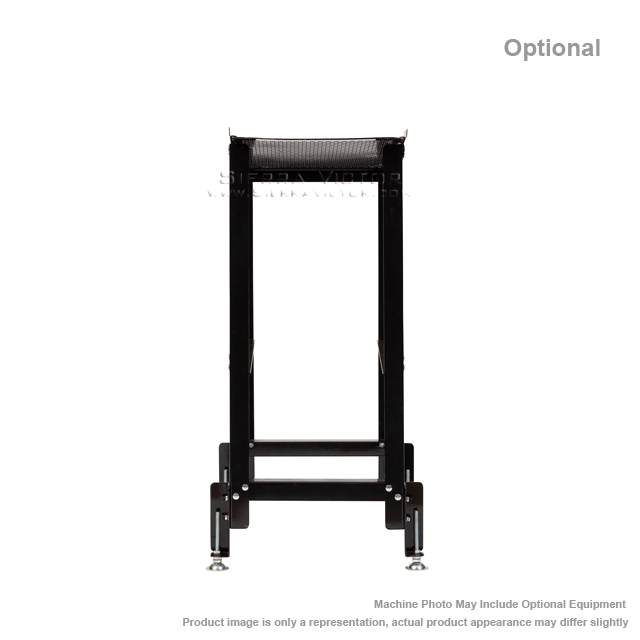

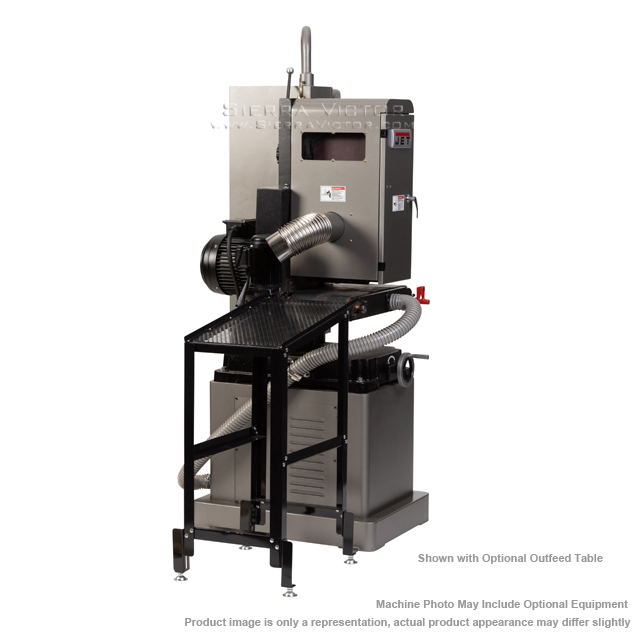

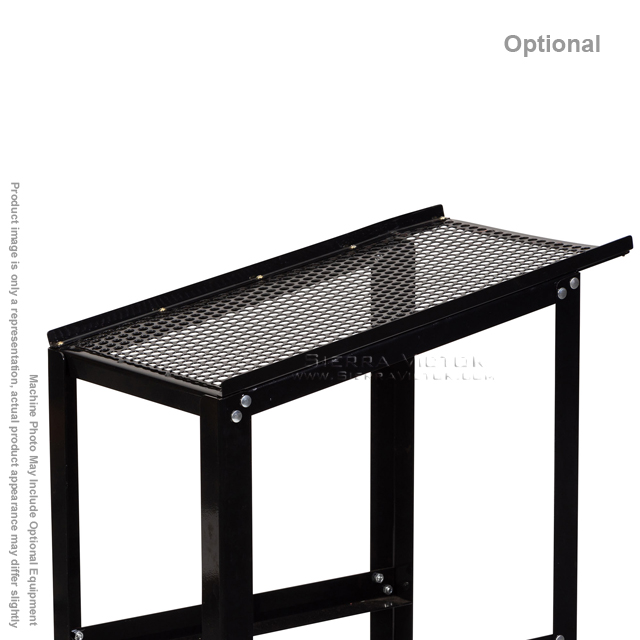

Outfeed Table, for JET 9" Small Piece Variable Speed Wide Belt Sander - 33 lbs. |
