- Description
- Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.
- Steel Column
- Heavy Duty Casted Iron Design
- Head is massively constructed for more accuracy and rigidity
- Large Precision Ground T-slot Production Table for easy set ups
- Massive 3" Quill Diameter
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified
- LED Machine Lamp
- Spindle Guard
- Variable Spindle Speeds from 65 - 2,000 RPM's
- Front Mounted LED Spindle RPM Readout
- Front Mounted Postitive Control Depth Stop
- Table rotates 360° around the column
- Machine T-Slotted base
- Large Hand Grips designed with the Users comfort in mind
- Manufacturer
- Specifications

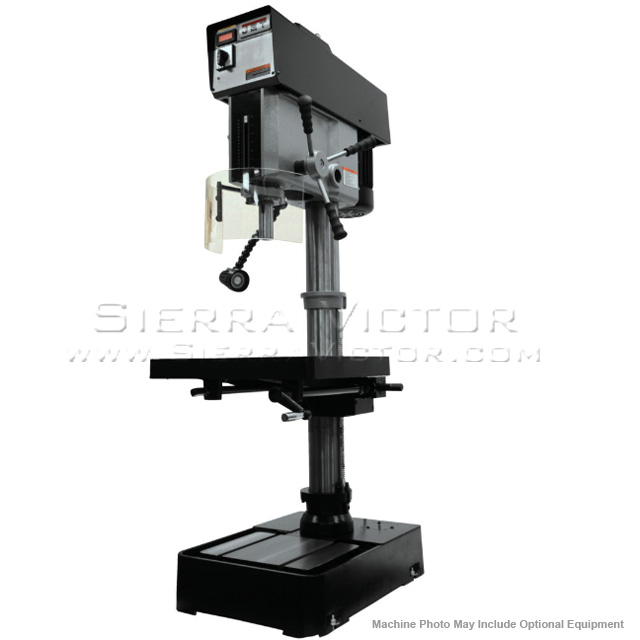

JET JDP-20VS-3 1-3/8 inch MS Drill VS DRILL PRESS 3-PH, JT9-354231
ITEM: 20" Variable Speed Drill Press
MANUFACTURER: JET
MODEL: JDP-20VS-3
PART# JT9-354231
Manufacturer:
Jet
Machine Type
Machine Category:
Drill Presses
Control:
Variable Speed
Drilling Capacity Mild Steel (In.) |
1-3/8" |
Drilling Capacity Cast Iron (In.) |
1-1/2" |
Drills to Center of Circle (In.) |
20 |
Range of Spindle Speeds (RPM) |
300 - 2,000 |
Spindle Distance to Base (In.) |
44-1/2 |
Spindle Distance to Table (Max.) (In.) |
30-1/4 |
Spindle Taper (In. x TPI) |
MT-3 |
Spindle Travel (In.) |
6 |
Style (Type) |
Variable Speed |
T-Slot Centers (In.) |
7-7/16 |
Table Size (L x W) (In.) |
22x18-3/4 |
Table Travel (In.) |
20 |
Motor (HP) |
2HP, 230/ 460V,3ph ,4P |
Column Diameter (In.) |
4-1/2 |
Base Dimensions (In.) |
27 x 19 |
Work Table Weight Capacity (Lbs.) |
154 |
Overall Dimensions (L x W x H) (In.) |
38.18 x27.16 x79.52 |
Weight (Lbs.) |
780 |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
