Ships direct from the factory. Lead time 6 to 8 weeks.
- Description
- The quiet, automated way to close seams in less than six seconds!
- Key features and benefits:
- Eliminate hammering to close ductwork seams.
- Greatly reduce noise levels and speed up duct seam closing in your shop or at the job site.
- Seam Closer will also close both insulated and reinforced ductwork.
- Seams from top and bottom to the middle to avoid run out and incomplete seaming.
- Manufacturer
- Specifications

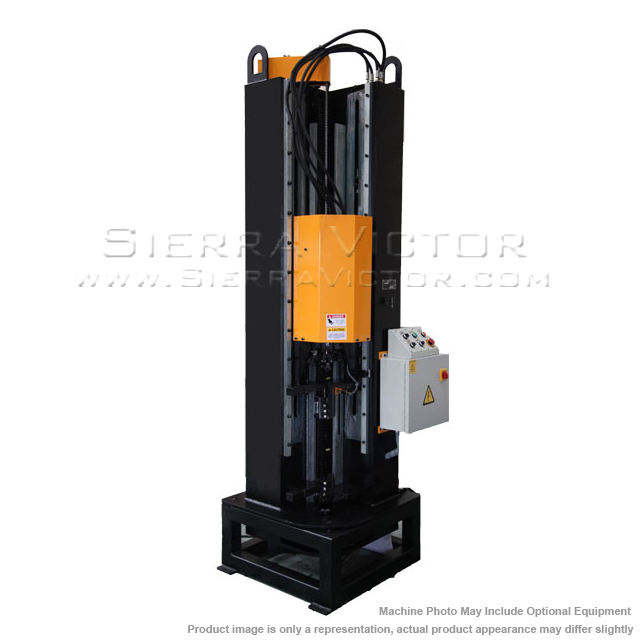

JAG 16 ga. Seam Closer
ITEM: 16 ga. Seam Closer
MANUFACTURER: JAG
MODEL: SEAM CLOSER
Manufacturer:
JAG
Machine Type
Machine Category:
Seam Closers
Metalworking
Mild Steel Capacity:
16 ga
Capacity
|
16 – 24 gauge (0.70 – 1.61 mm)
|
Duct Length
|
1-3/4 – 6-1/2 feet (530 – 1980 mm) of material
|
Duct Connections
|
Slip & drive, raw,
TDC/F and slip-on flanges |
Duct Material
|
Galvanized mild steel,
stainless steel and aluminum |
Hydraulics
|
Self-contained 25 gallons (95 liters)
|
Motor
|
2 HP (1.5 kw) – 220 volts,
60 cycle, three phase, AC |
Dimensions
|
35”L x 35W” x 111”H
(890 x 890 x 2820 mm) |
Weight
|
Machine – 2,230 lbs. (1014 kg)
Hydraulic Reservoir – 330 lbs. (150 kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
