Ships direct from the factory. Lead time 6 to 8 weeks.
- Description
- Roll your own flanges and pocket the savings.
- The TDC Rollformer has 12 forming stations and produces TDC flanges at speeds of up to 60 feet per minute (18.3m/min)!
- JAG quality construction with an industrial motor and gearbox; high precision bearings; heavy-duty three zone chassis; plate head construction; hardened and ground roll shafts all protected with JAG’s top-quality primer and paint finish.
- Optional rolls are available for TDC clip production (22 gauge).
- Manufacturer
- Specifications
- Options/Accessories
- Optional TDC Clip Roll Set: $CALL

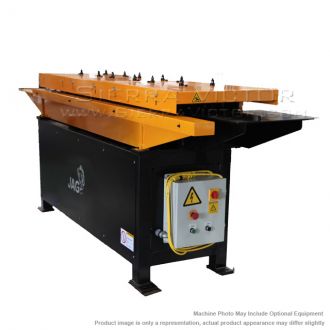

JAG 18 ga. TDC RollFormer
ITEM: 18 ga. TDC RollFormer
MANUFACTURER: JAG
MODEL: TDC ROLLFORMER
Manufacturer:
JAG
Machine Type
Machine Category:
Pittsburgh/Lock/Roll Formers
Metalworking
Mild Steel Capacity:
18 ga
|
Capacity
|
18 – 24 gauge (0.70 – 1.31 mm)
|
|
Depth of Pocket
|
1-7/8” (47.6 mm) /
2-1/8” (54.0 mm) for Clip |
|
Speed
|
50 fpm (15.2 m/min)
|
|
Motor
|
10 HP (7 kw) – 230 volts, 60 cycle,
3 phase, AC, 1800 RPM |
|
Dimensions
|
117”L x 33W” x 46”H
(2950 x 830 x 1150 mm) |
|
Weight
|
2,090 lbs. (950 kg)
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
