Ships direct from the factory. Lead time 6 to 8 weeks.
- Description
- Fast, easy corner insertion and crimping in ducts and fittings.

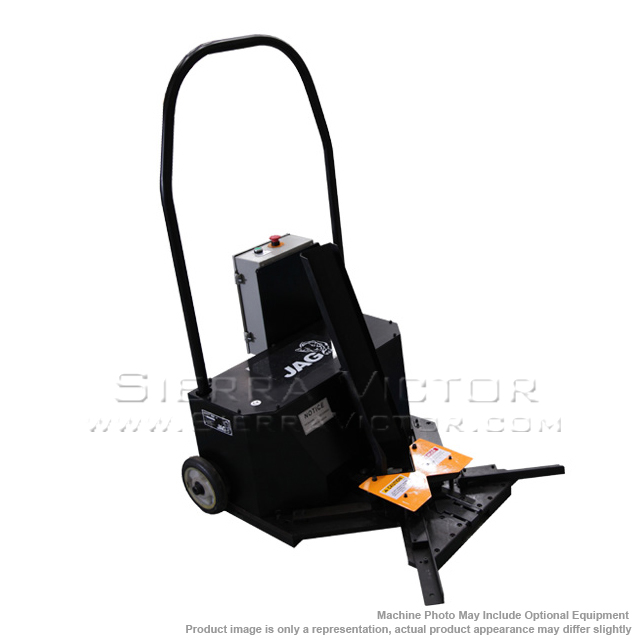

- Although the CORNER FIXER is portable and light in weight, it’s heavy on performance, automatically inserting and crimping TDC and TDF corners in seconds. In addition to handling virtually every style of duct, the CORNER FIXER also works with multiple types of straight fittings. Automatic ductsquaring for ducts and fittings from 18 – 26 gauge (0.5 – 1.3 mm) galvanized mild steel.
- Manufacturer
- Specifications
JAG 18 ga Corner Fixer
ITEM: 18 ga Corner Fixer
MANUFACTURER: JAG
MODEL: CORNER FIXER
Manufacturer:
JAG
Machine Type
Machine Category:
Corner Fixers
Metalworking
Mild Steel Capacity:
18 ga
|
Capacity
|
18 – 26 gauge (0.5 – 1.3 mm)
|
|
Power:
|
230 volts, 60 cycle, single phase, AC
|
|
Air Pressure
|
90 psi
|
|
Dimensions
|
42”L x 51W” x 54”H
(1060 x 1280 x 1360 mm) |
|
Weight
|
238 lbs. (108 kg)
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
