HUTH Tooling Fabrication Packs
ITEM: Tooling Fabrication Packs
MANUFACTURER: HUTH
Manufacturer:
HUTH
Machine Type
Machine Category:
Tooling
SCH 40
|
ID
|
OD
|
PART#
|
BEND DIE
|
BACK SHOE (2)
|
CLR
|
|
3/4 in.
|
1.050 in.
|
H1926
|
3105
|
1105
|
3.5 in.
|
|
1 in.
|
1.315 in.
|
H1927
|
3056
|
1256
|
3.5 in.
|
|
1 in.
|
1.315 in.
|
H1927-4
|
4056
|
1256
|
4 in.
|
|
1 in.
|
1.315 in.
|
H1927-5
|
5056
|
1256
|
5 in.
|
|
1-1/4 in.
|
1.660 in.
|
H1928
|
3042
|
1342
|
3.5 in.
|
|
1-1/4 in.
|
1.660 in.
|
H1928-4
|
4042
|
1342
|
4 in.
|
|
1-1/4 in.
|
1.660 in.
|
H1928-5
|
5042
|
1342
|
5 in.
|
|
1-1/2 in.
|
1.900 in.
|
H1929
|
4048
|
1348
|
4 in.
|
|
1-1/2 in.
|
1.900 in.
|
H1929-5
|
5048
|
1348
|
5 in.
|
|
2 in.
|
2.375 in.
|
H1930
|
4438
|
4237
|
4 in.
|
|
2 in.
|
2.375 in.
|
H1930-3
|
3438
|
4237
|
3 in.
|
|
2 in.
|
2.375 in.
|
H1930-5
|
5438
|
4237
|
5 in.
|
*NOTE: Die pins included

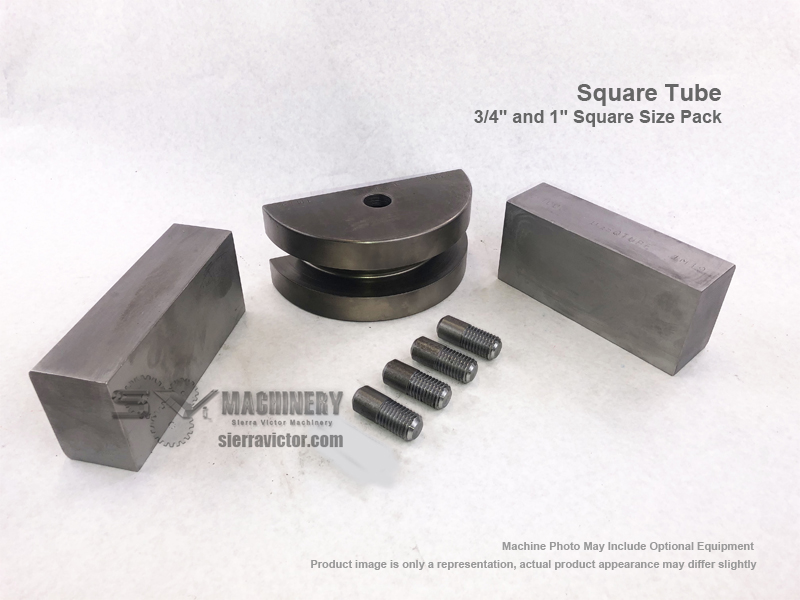

SQUARE TUBE - 3/4 AND 1 IN. SQUARE SIZE PACK
ID
| OD | PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
3/4 in.
| 1.000 in.
| H1936-3
| 3334
| 1000
| 3 in.
|
3/4 in.
| 1.000 in.
| H1936-4
| 4334
| 1000
| 4 in.
|
1 in.
| 1.000 in.
| H1941
| 3310
| 1000
| 3 in.
|
1 in.
| 1.000 in.
| H1941-4
| 4310
| 1000
| 4 in.
|
*NOTE: Die pins included

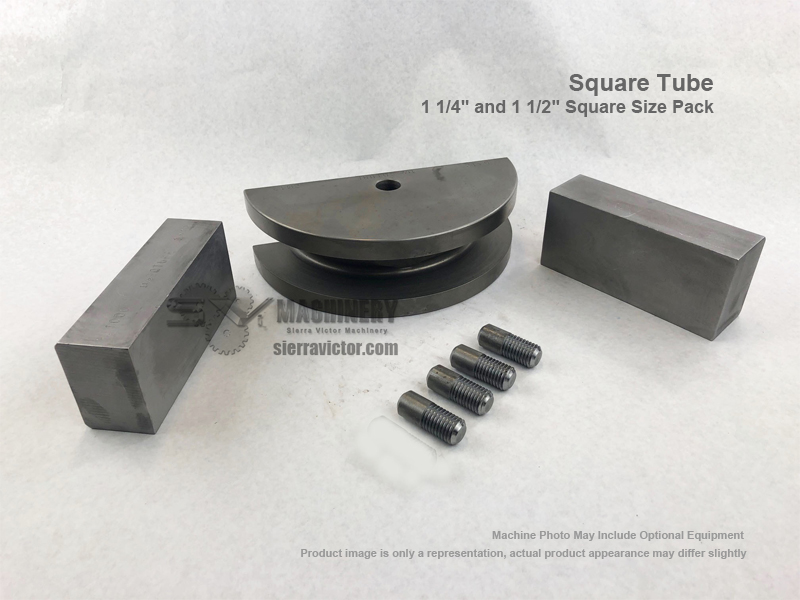

SQUARE TUBE - 1 1/4 AND 1 1/2 IN. SQUARE SIZE PACK
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
1-1/4 in.
| 1.500 in.
| H1937-4
| 4314
| 1000
| 4 in.
|
1-1/4 in.
| 1.500 in.
| H1937-5
| 5314
| 1000
| 5 in.
|
1-1/2 in.
| 1.500 in.
| H1942
| 5312
| 1000
| 4.25 in.
|
*NOTE: Die pins included

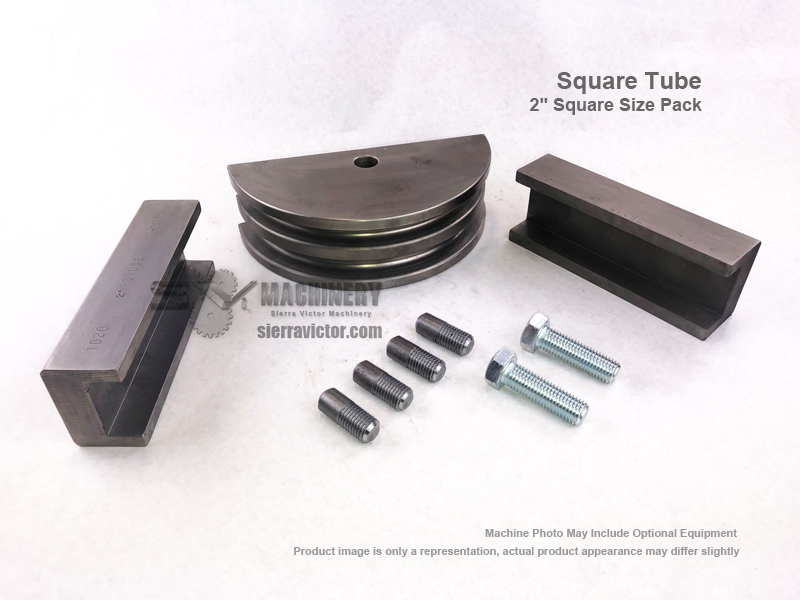

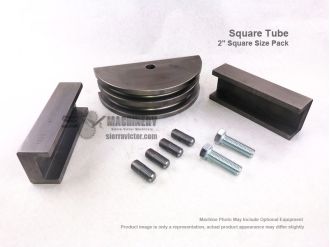

SQUARE TUBE - 2 IN. SQUARE SIZE PACK
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
2 in.
| 2.000 in.
| H1945
| 5320
| 1020
| 5 in.
|
*NOTE: Die pins included

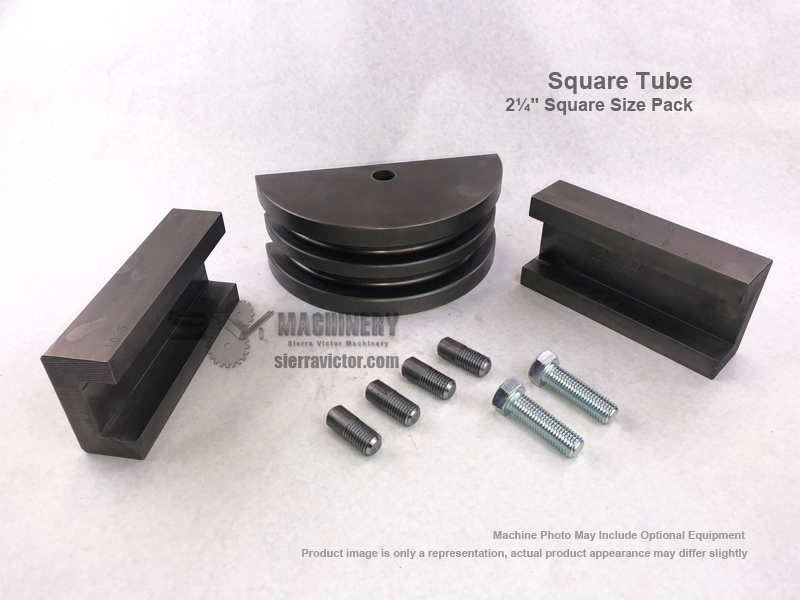

SQUARE TUBE - 2 1/4 IN. SQUARE SIZE PACK
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
2-1/4 in.
| 2.250 in.
| H1946
| 5325
| 1025
| 5 in.
|
*NOTE: Die pins included

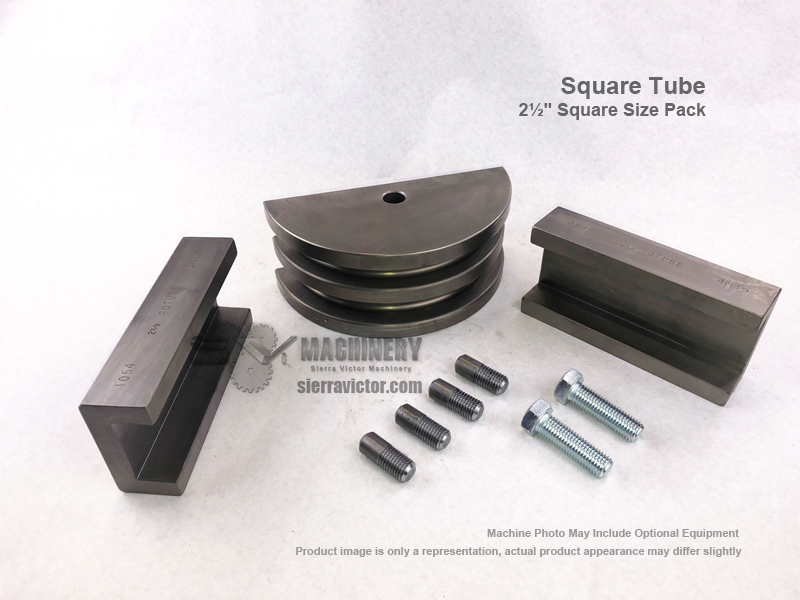

SQUARE TUBE - 2 1/2 IN. SQUARE SIZE PACK
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
2-1/2 in.
| 2.500 in.
| H1950
| 5350
| 1054
| 5 in.
|
*NOTE: Die pins included

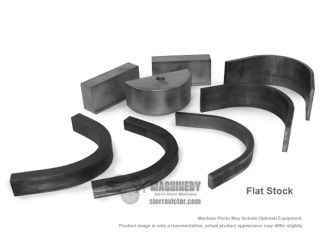

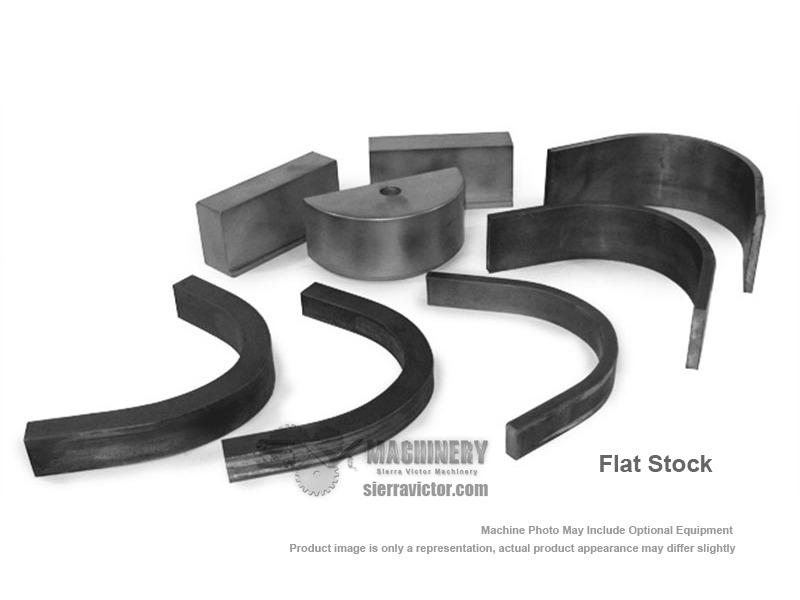

FLAT STOCK
ID
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
3-1/2 in.
| H1935
| 3303
| 1003
| 3 in.
|
*NOTE: Die pins included
EMT CONDUIT
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
3/4 in.
| 0.922 in.
| H1931
| 3092
| 1092
| 3.5 in.
|
1 in.
| 1.163 in.
| H1932
| 3116
| 1116
| 3.5 in.
|
*NOTE: Die pins included
TUBE SIZES - 1 IN.
ID
| OD
| PART# | BEND DIE | BACK SHOE (2) | CLR
|
1 in.
| 1.00 in.
| H1933
| 3100
| 1100
| 3.5 in.
|
1 in.
| 1.00 in.
| H1933-4
| 4100
| 1100
| 4 in.
|
1 in.
| 1.00 in.
| H1933-5
| 5100
| 1100
| 5 in.
|
*NOTE: Die pins included
TUBE SIZES - 1 1/4 IN.
ID
| OD
| PART#
| BEND DIE
| BACK SHOE (2)
| CLR
|
1-1/4 in.
| 1.25 in.
| H1934
| 3114
| 1114
| 3.5 in.
|
1-1/4 in.
| 1.25 in.
| H1934-4
| 4114
| 1114
| 4 in.
|
1-1/4 in.
| 1.25 in.
| H1934-5
| 5114
| 1114
| 5 in.
|
*NOTE: Die pins included
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
