- Description
- STORAGE SYSTEMS FOR GH AND GV SERIES ONLY
- Your Challenge – Our Concern:
- Hard to find labor, especially for the second or third shift.
- Limited plant height
- Low machine utilization and output per day
- Difficult to manage materials and finished goods
- Limited budget
- The solution is designed to help you solve those bottlenecks for the highest output. With the STORE Pro, novices and advanced users alike benefit from an affordable and user-friendly automatic solution.

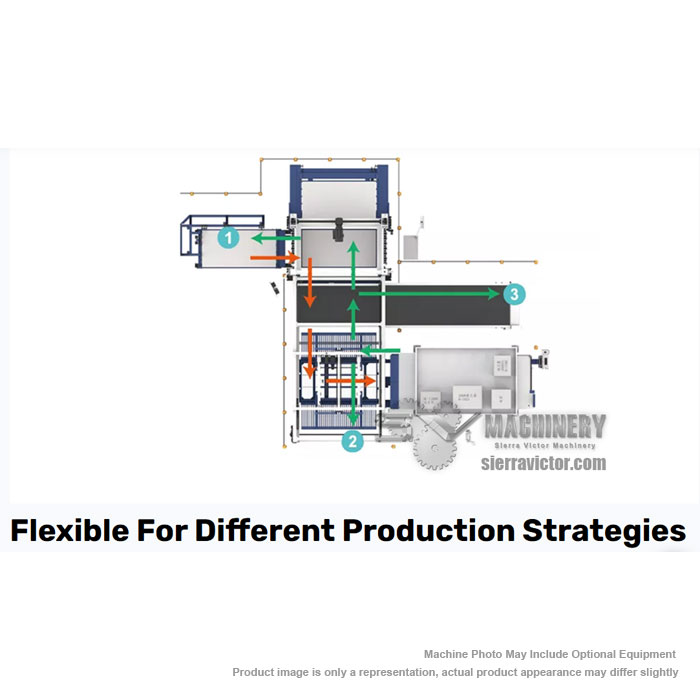

- Flexible For Different Production Strategies:
- Flow 1: finished goods back to tower esp. in 2. or 3. shift, sorting in day shift
- Flow 2: sorting per pallet
- Flow 3: sorting per sheet (optional)

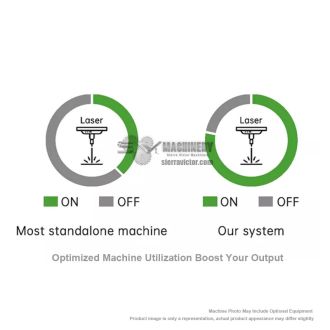

- Optimized Machine Utilization Boost Your Output: Automation reduces waiting time for material handling by logistic staff, while our system makes the loading and unloading time even shorter by using synchronous processes. Your machine could be fully utilized, which enables you maximize your hourly output and save your money on another machine, additional space and operators.

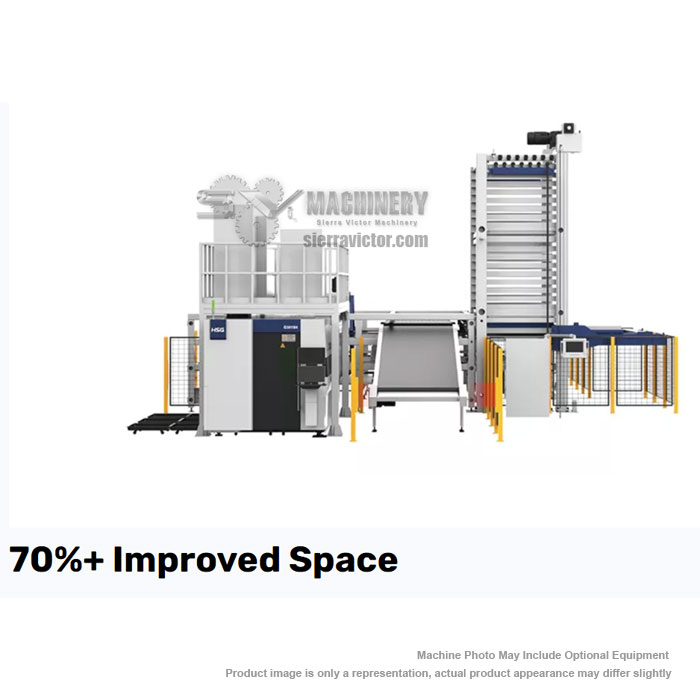

- 70%+ Improved Space: Max. 10 positions per tower with a height of 4.4m.

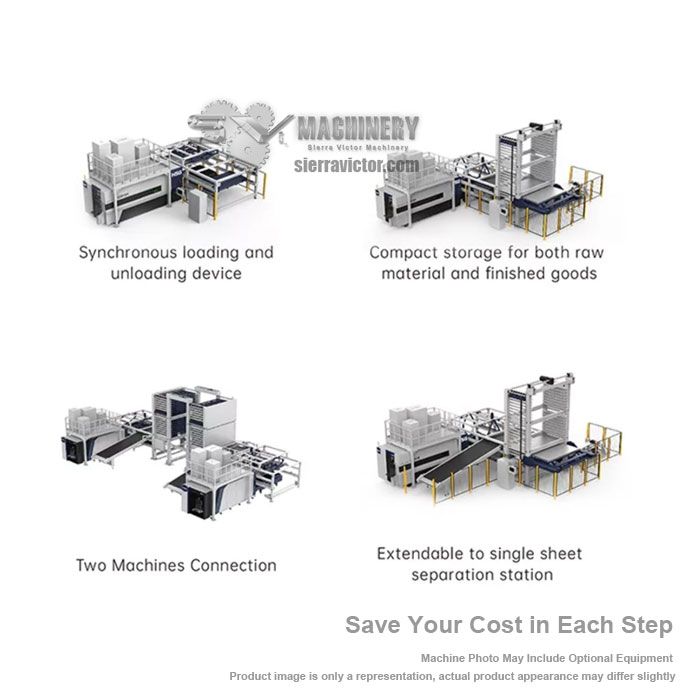

- Save Your Cost in Each Step: Our system could grow together with your business. The modular design enables a cost-effective extension of the automation system.
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

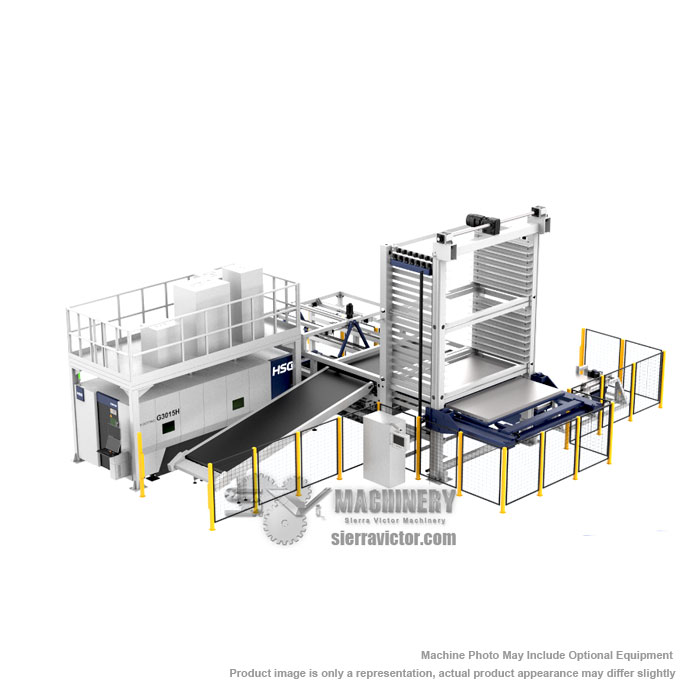

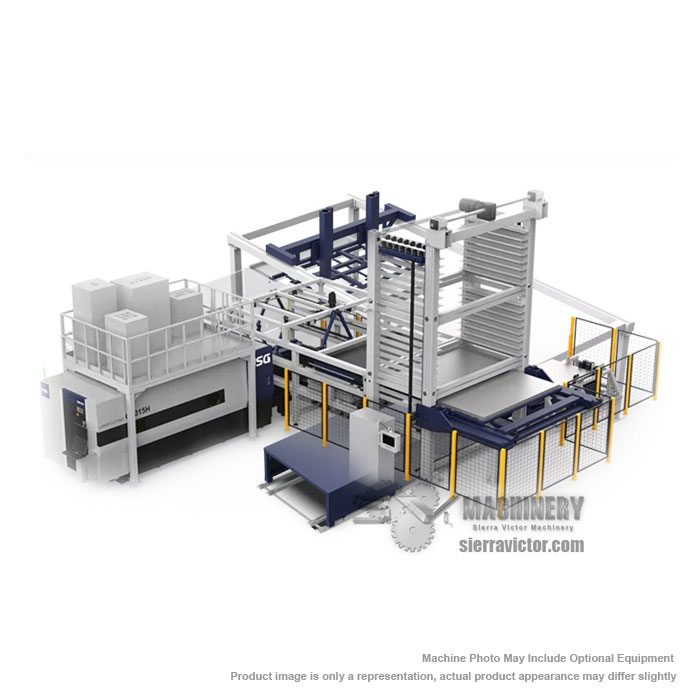

HSG Premium Intelligent Laser Automatic System | STORE PRO
ITEM: Premium Intelligent Laser Automatic System
MANUFACTURER: HSG
SERIES: STORE PRO
MODEL# STORE PRO 3015 / STORE PRO 4020
Manufacturer:
HSG
Machine Type
Machine Category:
Lasers
MODEL
|
STORE PRO 3015
|
Max./Min. Loading Sheet Size
|
10' x 5' / 3.28' x 3.28'
|
Max. Sheet Weight
|
1,322 lbs
|
Tower Height (standard)
|
14.4', modular extension optional
|
Max. Stacking Height Per Pallet
|
3.54" / 12.2"
|
Max. Loading Weight Per Pallet
|
6,613 lbs
|
MODEL
|
STORE PRO 4020
|
Max./Min. Loading Sheet Size
|
13.3' x 6.6' / 3.28' x 3.28'
|
Max. Sheet Weight
|
2,645 lbs
|
Tower Height (standard)
|
14.4', modular extension optional
|
Max. Stacking Height Per Pallet
|
3.54" / 12.2"
|
Max. Loading Weight Per Pallet
|
11,023 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
