- OPEN TABLE ECONOMY LASER

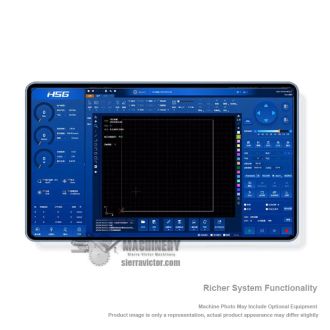

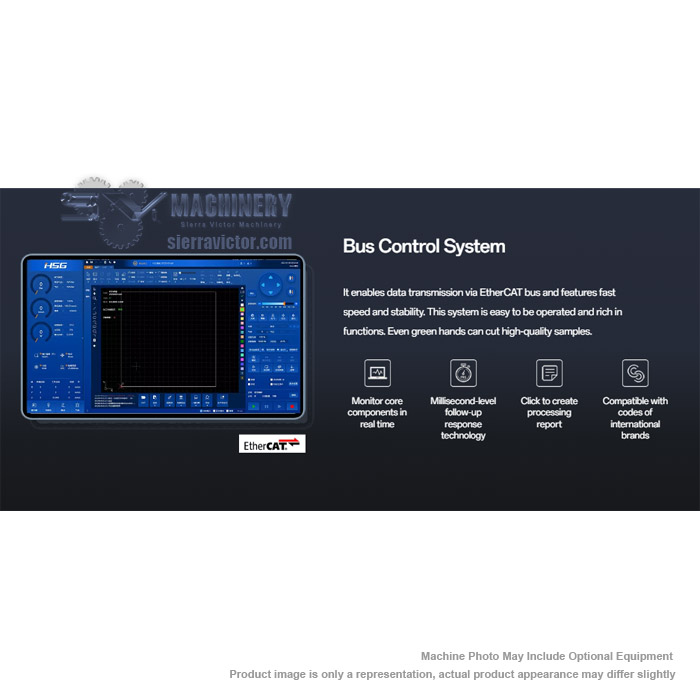

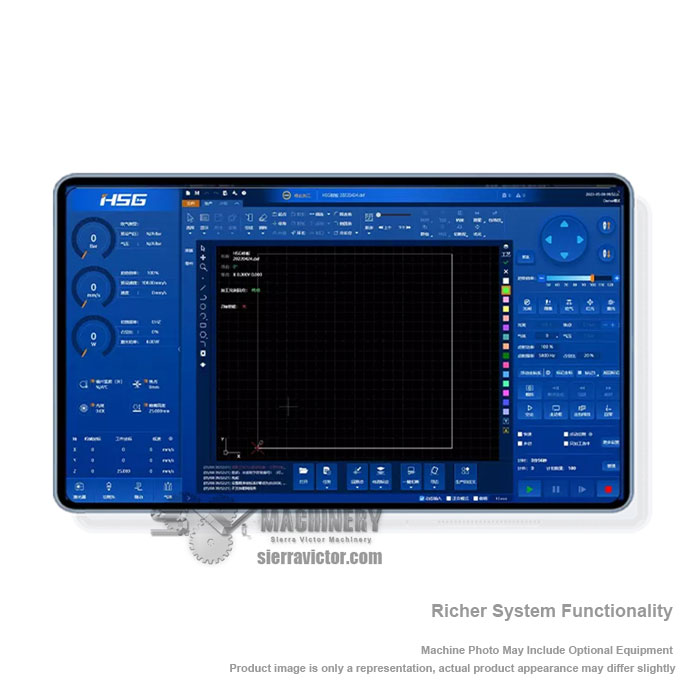

- Bus Control System: It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

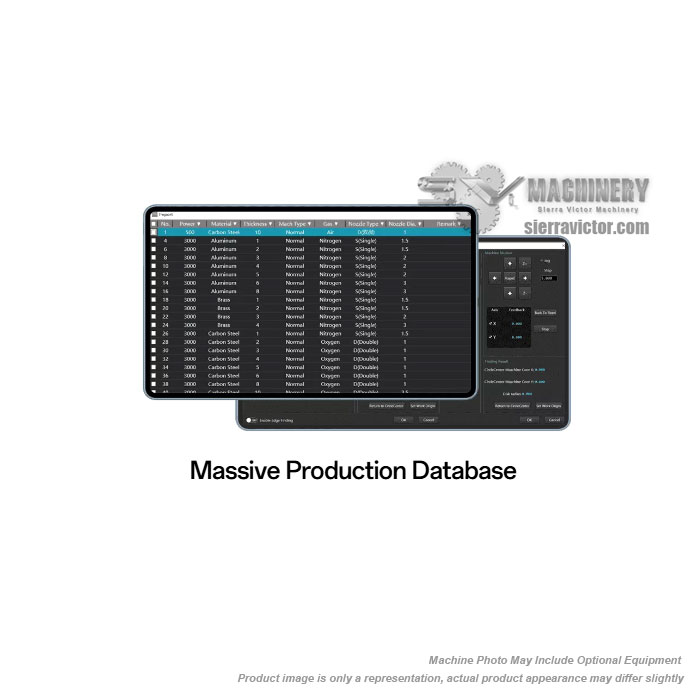

- Massive Production Database:
- Users can invoke cutting technology from the database when cutting sheet of different materials and thickness
- Have multiple thick sheet cutting technologies like air cutting, counterboring technology, perfect finish cut (PFC), lightening-fast piercing, etc.

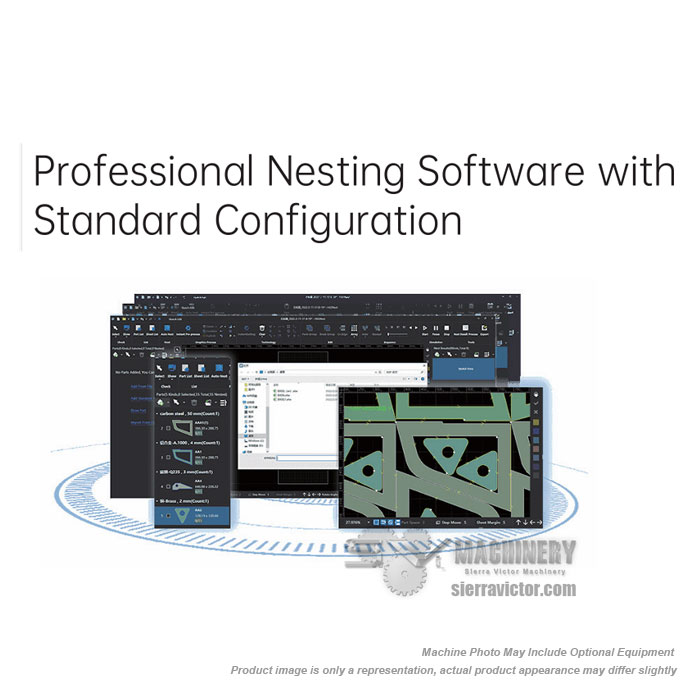

- Professional Nesting Software:
- Optimize cutting path to shorten cutting duration.
- Smart typesetting algorithm for the increase of material utilization

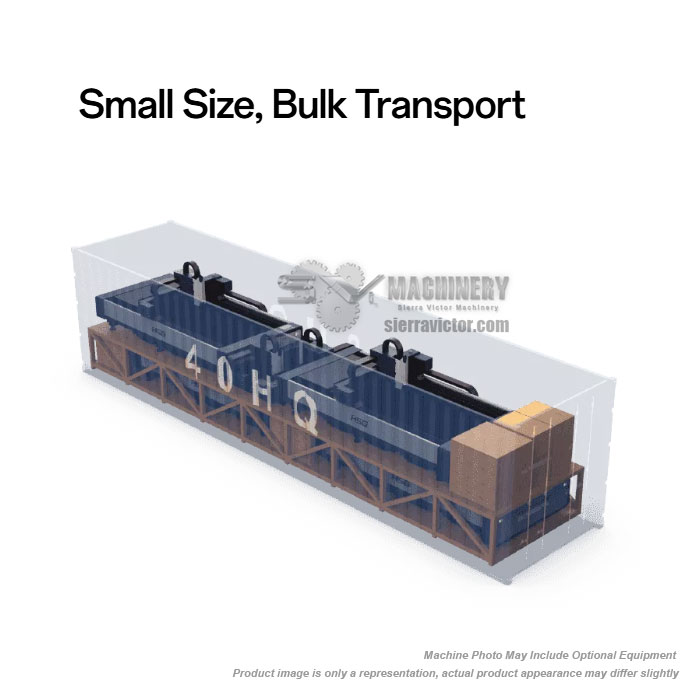

- Small Size, Bulk Transport:
- Open-type structure with a single platform, loading from the front, left and right sides, only takes one day to get started.
- Ship four C3015 in one 40HQ standard container, as a result, it can save overseas freight and fit for customers who prefer to bulk orders.
- ** NOTE: THE C-SERIES IS ALSO AVAILABLE IN 4 X 4 AND 5 X 5 SIZES (Please contact for details)
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video

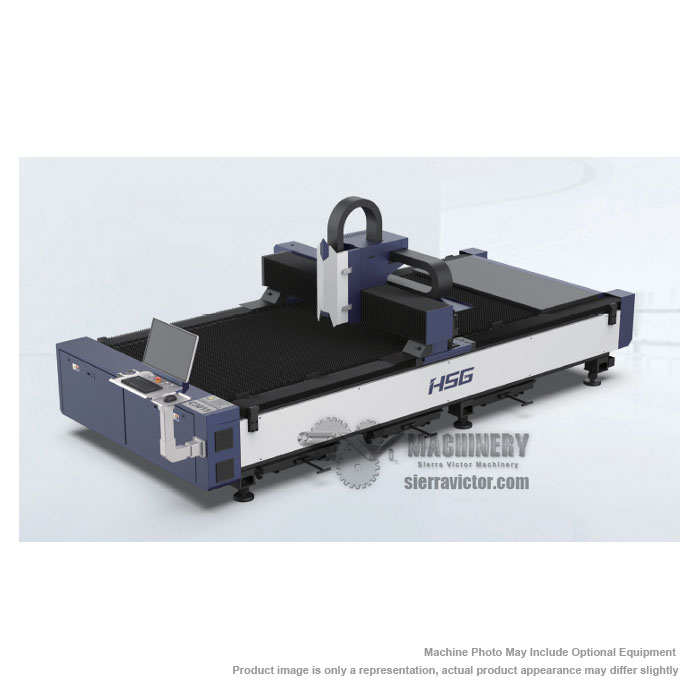

HSG 1.5-60kW Fiber Laser Cutting Machine | C-Series
ITEM: 1.5-60kW Fiber Laser Cutting Machine
MANUFACTURER: HSG
SERIES: C
MODEL# C3015 / C4020 / C6015 / C6025 / C12025 / C13030
Manufacturer:
HSG
Machine Type
Machine Category:
Lasers
|
MODEL
|
C3015
|
|
Laser Power
|
1.5-6kW (1500W-6000W)
|
|
Cutting Area (Length*Width)
|
3048 x 1524mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
|
MODEL
|
C4020
|
|
Laser Power
|
1.5-6kW (1500W-6000W)
|
|
Cutting Area (Length*Width)
|
4064 x 2032mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
|
MODEL
|
C6015
|
|
Laser Power
|
3-12kW (3000W-12000W)
|
|
Cutting Area (Length*Width)
|
6096 x 1524mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
|
MODEL
|
C6025
|
|
Laser Power
|
3-20kW (3000W-20000W)
|
|
Cutting Area (Length*Width)
|
6096 x 2540mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
|
MODEL
|
C12025
|
|
Laser Power
|
12-60kW (12000W-60000W)
|
|
Cutting Area (Length*Width)
|
12500 x 2540mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
|
MODEL
|
C13030
|
|
Laser Power
|
12-60kW (12000W-60000W)
|
|
Cutting Area (Length*Width)
|
13100 x 3100mm
|
|
Maximum Acceleration
|
1.5G
|
|
X/Y Axis Positioning Accuracy
|
±0.05mm/m
|
|
X/Y Axis Re-positioning Accuracy
|
±0.03mm
|
|
Max. Linkage Speed
|
120m/min
|
For more details, feel free to reach out to us!
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
