- Description

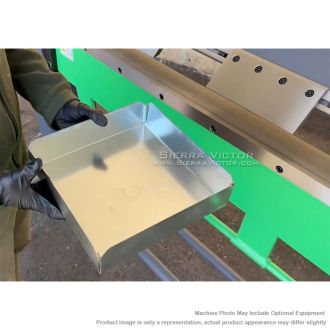

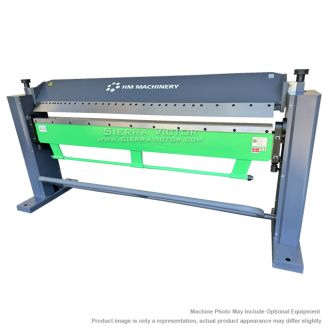

- The HM Machinery HS-7S 6ft x 16 ga Box and Pan Brake is a large scale brake with angled segmented tooling, designed for the fabrication of both straight and box and pan profiles. The HS-7S brake is a durable manual brake with a stout base for floor mounting in high production environments, where it can produce high quality and consistent complex bends.
- Precision ground tooling creates straight, clean bends every time.

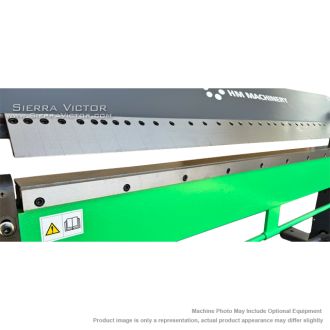

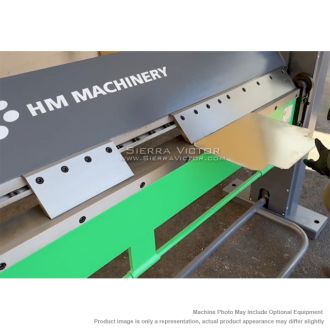

- Equipped with 14 segments of angled tooling on the top bending surfaces.
- Cross-driven clamping allows easy consistent material positioning.
- Repeat angle stop enables easily repeatable bends.
- The full-width lift handle allows easy operability and flexibility while fabricating complex shapes and profiles.
- Manufacturer
- Specifications
- Options/Accessories
-
Back gauge, solid upper beam and ERGO unit. Segmented upper beam.
- Custom Freight
- Video
HM MACHINERY 6 ft x 16 ga. Box and Pan Brake | HM HS-7S
ITEM: 6 ft x 16 ga. Box and Pan Brake
MANUFACTURER: HM MACHINERY
MODEL: HM HS-7S
Manufacturer:
HM Machinery
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
16 ga
Maximum Bend Length |
79 in. |
Maximum Material Capacity |
16 gauge |
Maximum Opening |
1.78 in. |
Maximum Folding Angle |
135 degrees |
Approx. Shipping Dimensions: |
96 x 27 x 50 in. |
Approx. Shipping Weight: |
1,365 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
CALL FOR PRICE:
