- Description

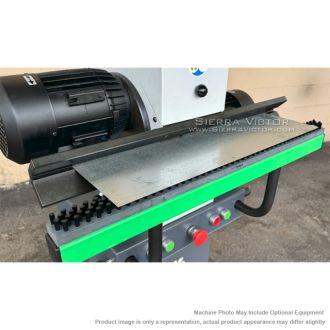

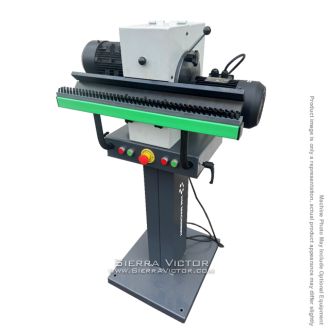

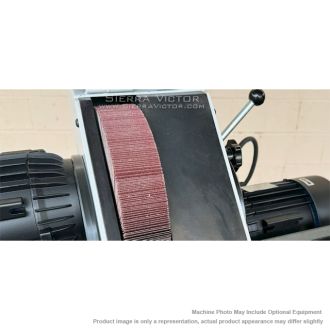

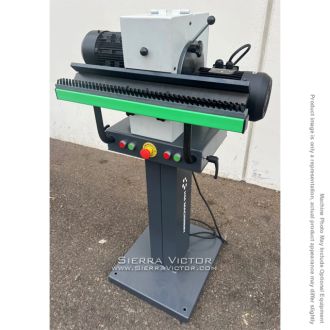

- HM Sheet deburring machine model ZA 250 has a unique design, which ensures effective, safe and clean edge deburring of most ferrous and nonferrous materials utilizing two abrasive flap wheels.

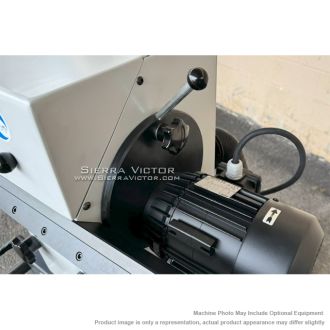

- The motors rotate in opposite directions, and being independent of each other, can either debur one or both edges at the same time.
- In addition the top cover of the machine can be opened to grind or finish flat surfaces.
- Efficient deburring of sheet or plate up to 10 mm thickness, in most metals, including; mild steel, aluminum, stainless steel, copper, and brass can be accommodated.
- The machine is manufactured in accordance with the EC-machine directive, and it has a low noise level at the place of operation.
- The ZA 250 Sheet Deburrer comes complete with two 60Grit flap wheels and a base.
- A separately powered dust extractor with a special mounting plate can be supplied as optional equipment.
- Manufacturer
- Specifications
- Options/Accessories
- Dust Extractor
- Video
HM MACHINERY 9.8 x 1.9 in. Sheet Deburring Machine HM ZA 250
ITEM: 9.8 x 1.9 in. Sheet Deburring Machine
MANUFACTURER: HM MACHINERY
MODEL: HM ZA 250
Manufacturer:
HM Machinery
Machine Type
Machine Category:
Deburring/Finishing
Machine Sub-Category:
Sheet
Number of spindle speeds |
1 |
Rpm |
1400/1700 |
Voltage |
3x400V-50 Hz |
Motor |
0,55 kW |
Sheet thickness |
0-10 |
Flap wheels |
9.8 x 1.9 ø in. (250 x 50 ø mm) |
Flap wheels speed |
18 m/sec. |
Working Height |
36 in. (920mm) |
Dimensions (LxWxH) |
21.5 x 26.5 x 49 in. (545 x 675 x 1240mm) |
Net Weight |
154 lbs. (70kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
