- Description
- The MB 2000L folders are easy to operate, heavy, manual machines particularly suited for folding of the thin sheet metals.
- The machines are offered with the clamping bar: L - low 45°.

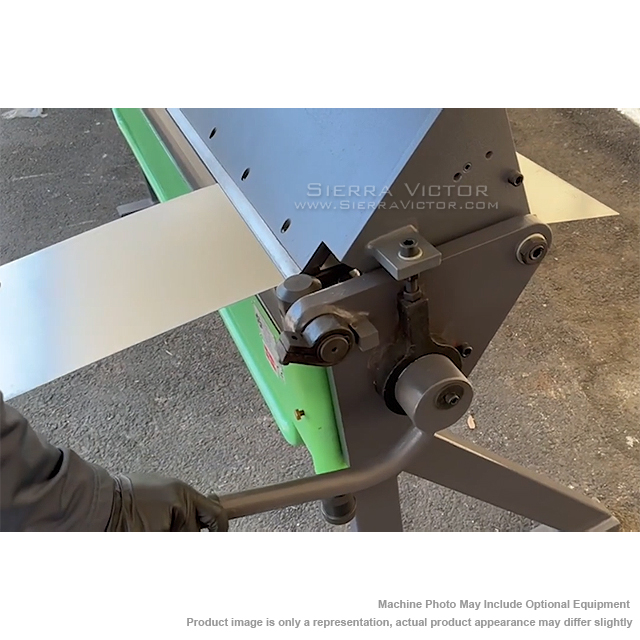

- The machines are offered with roller shear, back gauge and radius blade.
- The models MB-L are machines which are suited to standard straight folding operations, and because of their low clamping beams, are ideal for channel sections and Z-profiles.
- Manufacturer
- Specifications
- Options/Accessories
- Back gauge, radius blade R=2,5 mm and roller shear.
- Custom Freight

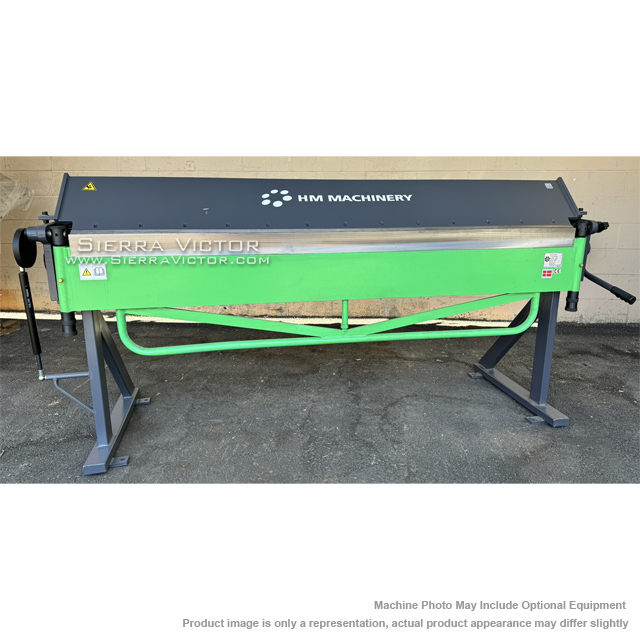

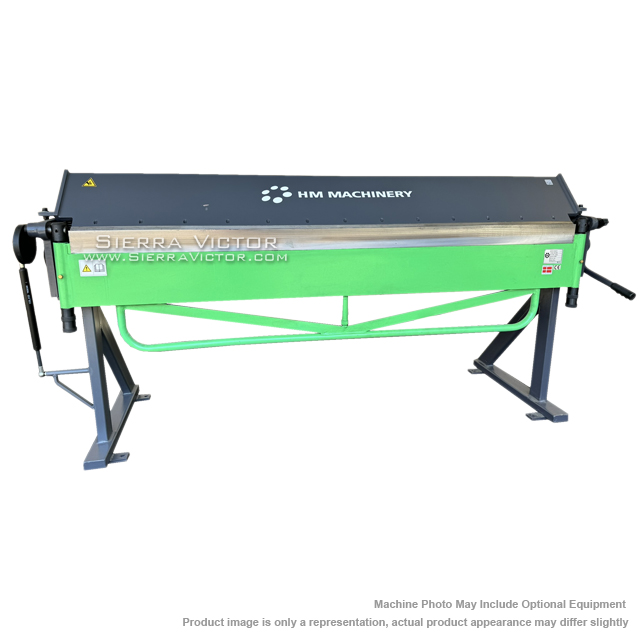

HM MACHINERY 6 ft x 20 ga. Straight Brake (Angled Nose Bar) HM MB-2000L
ITEM: 6 ft x 20 ga. Straight Brake (Angled Nose Bar)
MANUFACTURER: HM MACHINERY
MODEL: HM MB-2000L
Manufacturer:
HM Machinery
Machine Type
Machine Category:
Brakes - Straight/Hand
Control:
Manual
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
20 ga
Capacity |
20 Ga |
Capacity |
2020 x 1,0mm |
Bending Length |
6 ft (79 in.) |
Sheet thickness steel |
1,0mm |
Max. Opening |
35mm |
Bending angle |
135° |
Dimensions (LxWxH) |
91.3 x 24.8 x 43.3 in. (2320 x 630 x 1100mm) |
Net weight |
1,047 lbs. (475kg) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
