Name: HM MACHINERY HM 1300 2n1 4 ft x 20 ga. Combo Brake
Brand: HM Machinery
SKU: HM 1300 2n1
Price: 2100.00 USD
Availability: InStock
Rating: 4.9 (8 reviews)

HM MACHINERY 4 ft x 20 ga. Combo Brake | HM 1300 2n1

The HM Machinery 1300 2n1 Combo Brake is the perfect way to get maximum versatility in a manual brake. This combo package includes 2 different interchangeable tooling sections that can be easily swapped:

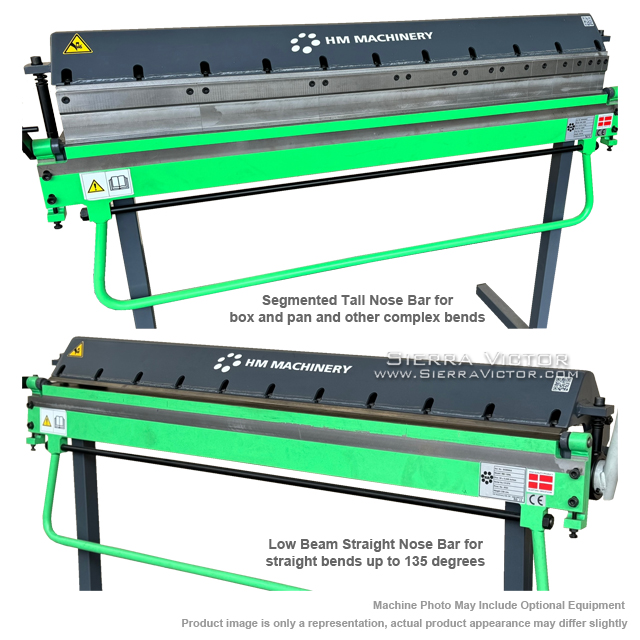

- Low Beam Straight Nose Bar for straight bends up to 135 degrees
- Segmented Tall Nose Bar for box and pan and other complex bends

ITEM: 4 ft x 20 ga. Combo Brake

MANUFACTURER: HM MACHINERY

MODEL: HM 1300 2n1

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

Manufacturer:

HM Machinery

Machine Type

Machine Category:

Brakes - Straight/Hand

Control:

Manual

Metalworking

Material Length:

4 ft (48 in+)

Mild Steel Capacity:

20 ga

Maximum Bend Length	53 in.
Maximum Material Capacity	20-Gauge Mild Steel
Maximum Opening (straight tooling)	1.5 in.
Maximum Box/Pan Height (segmented tooling)	2.75 in.
Maximum Folding Angle	135 Degrees (straight tooling), 95 Degrees (segmented tooling)
Approx. Shipping Dimensions	60 x 20 x 42 in.
Approx. Shipping Weight	275 lbs.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Limited

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

CALL FOR PRICE:

To further increase its versatility, contact us when purchasing to add these optional accessories:
- Manual Backgauge
- Rear Support Table
- Roller Shear

Custom Freight

$0.00

This product requires custom shipping. Proceed to Checkout AND log in to your existing account or create a new account. Complete the checkout process. AT THE BILLING OPTION SCREEN CHOOSE 'OTHER PAYMENT OPTIONS' - 'PHONE ORDERING' AND THEN PRESS 'SUBMIT MY ORDER'. Once you have placed the order please contact Sierra Victor so that they can review your order and provide you with a freight quote. You will be notified by Sierra Victor of the custom freight charges for your equipment. Upon receiving the quote please return to our store, log in to your account and enter the total amount of the shipping charges here and then proceed to checkout. You can then choose to pay for your order with a credit card or check.

Availability: In stock

Quality European Machinery

Discounted FREIGHT on the NEW HM Machines - Please call for discounted freight rate.

HM MACHINERY HM 1300 2n1 4 ft x 20 ga. Combo Brake

4 ft (48 in+), 20 ga

$2,100.00

Supplier: HM Machinery

Model: HM 1300 2n1

The HM Machinery 1300 2n1 Combo Brake includes 2 different interchangeable tooling sections that can be easily swapped.

Combo package includes Low Beam Straight Nose Bar for straight bends up to 135 degrees and Segmented Tall Nose Bar for box and pan and other complex bends.

Maximum Bend Length is 53 inches and Maximum Material Capacity is 20-Gauge Mild Steel.
