- Description
- The H3236A-DC band saw operates using a touch screen control mounted in a swing-away console. A 48” servo twin ball-screw bar-feed is standard. Jobs are created and stored for later recall. The patented Cut Watcher and Chip Auger are standard. Many optional features are available.
- Smart Saw Control Console w/ 9" Touch Screen
- Industrial IOT Ready - MTConnect Output
- 24" Roller Discharge Table
- Vise - Full Stroking Main & Feed
- Adjustable Clamping Force
- Carbide Blade Guides
- Lead In/Lead Out Roller Guides
- Guide Arm - Powered
- Passive "Cut Watcher" System
- Variable Blade Speed w/ Readout on Touch Screen
- Powered Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Vise - 3rd on Feed
- Chip/Swarf Removal System - Chip Auger
- Coolant System - Flood w/ Wash-Down Hose
- Two-Hand Operation Controls
- Broken Blade Function
- Out-of-Stock Function
- Automatic Blade Idle
- Blade Change Interlock
- Safety Guards
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
- Manufacturer
- Specifications
- Options/Accessories
- 0-120" Stroke Servo Twin Ball-Screw Bar-Feed w/ 3rd Vise
- Heavy-Duty Servo Feed
- Bar-Feed Filler Plates
- Top Clamp - Full Capacity Main & Feed Vise
- Top Clamp - Full Capacity Main Vise
- Top Clamp - Full Capacity Outboard Vise
- Vise - Outboard Powered on Discharge
- Servo Controlled Traverse (SCT) - Includes Active "Cut Watcher"
- Remote Diagnostics
- 2-5/8" Blade Option - HD Gear Box
- Laser Light System
- Shadow Light System
- Spray Mist Lubrication
- Pedestal Mounted Control Console
- Free-Standing Control Console
- 5' Discharge Table Extension
- 10' Discharge Table Extension
- 10' Powered Discharge Table Extension
- 5' Idle Roller Stock Table
- 10' Idle Roller Stock Table
- Custom Freight

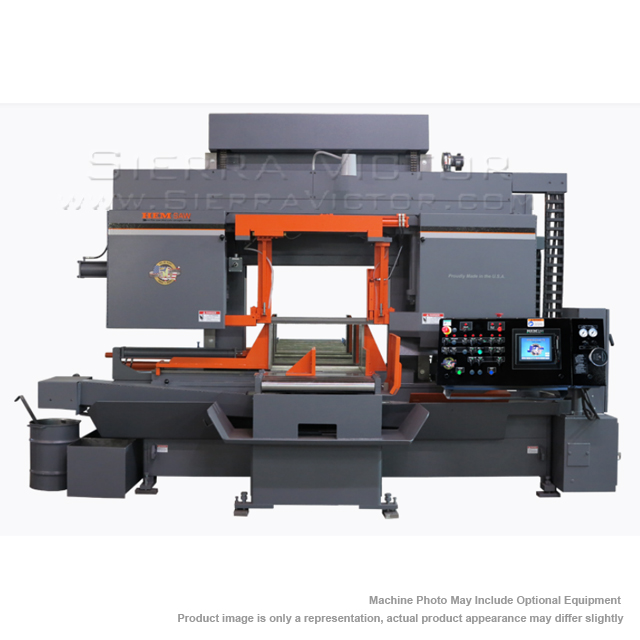

HE&M 32 inch Dual Column Bandsaw H3236A-DC
STANDARD EQUIPMENT:
ITEM: 32" Dual Column Bandsaw
MANUFACTURER: HE&M
MODEL: DUAL COLUMN SERIES
PART# H3236A-DC
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Dual Column
Metalworking
Saw Capacity:
32"+
Capacity |
36" W x 32" H |
Square Capacity |
32" (Square) |
Round Capacity |
32" (Diameter) |
Bar-feed |
0-48" (Stroke Servo Twin Ball-Screw - Multiple Index) |
Blade |
27’0" x 2" x .063" |
Operation |
Automatic |
Power Source |
Hydraulic |
Motor |
20 HP |
Electrics |
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine |
Hydraulic Motor |
5 HP |
Bundle Cut |
No |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
