- Description
- The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed.
- Easy View Console - Semi-Automatic Control
- 18" Discharge Support
- Vise - Adjustable Main
- Adjustable Clamping Force
- Hold Down Fixture
- Guide Arm - Manual Adjustment
- Variable Blade Speed w/ LED Readout
- Carbide Blade Guides
- Manual Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Coolant System - Flood w/ Wash-Down Hose
- Blade Brush
- Broken Blade Function
- Safety Guards
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
- 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
- Manufacturer
- Specifications
- Options/Accessories
- Top Clamp - Reduced Capacity Main Vise
- 24" Roller Load Table
- Full Width Discharge Plate
- Laser Light System
- Air Powered Blade Tension
- Light Clamping Pressure
- Spray Mist Lubrication
- 5' Idle Roller Stock Table
- 10' Idle Roller Stock Table
- Single-Phase Voltage
- Custom Freight

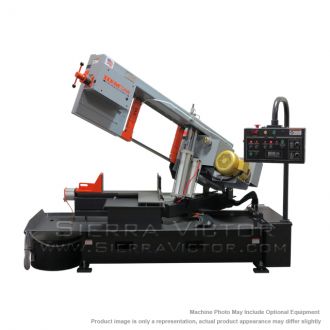

HE&M 22 inch Horizontal Miter Bandsaw CYCLONE M
STANDARD EQUIPMENT:
ITEM: 22" Horizontal Miter Bandsaw
MANUFACTURER: HE&M
MODEL: CYCLONE SERIES
PART# CYCLONE M
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Miter
Position:
Horizontal
Metalworking
Saw Capacity:
22"+
Capacity |
22" W x 16" H |
Blade |
16’0" x 1.25" x .042" |
Operation |
Semi Automatic |
Motor |
7.5 HP |
Electrical Motor Requirement |
220V/440V/3PH |
Power Source |
Air |
Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) |
85 PSI, 4-6 CFM |
Bundle Cut |
Yes |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
