- Description
- The Cyclone A-C multiple indexes with a 24” bar-feed, saves up to 99 jobs, sawing one job or multiple jobs of differing lengths and quantities in sequence. Each job includes job number, part length and quantity and can miter up to 45ᵒ in one direction cutting solids or shapes.

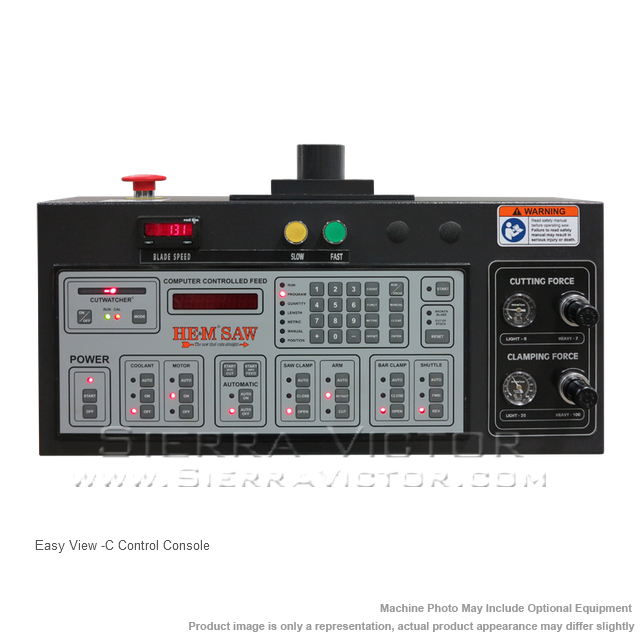

- Easy View Console - All Function Control
- Computer Controlled Feed System
- 18" Discharge Support
- Vise - Adjustable Main & Feed
- Adjustable Clamping Force
- 2 Hold Down Fixtures
- Vertical Alignment Bar on Bar-Feed
- Guide Arm - Manual Adjustment
- Passive "Cut Watcher" System
- Variable Blade Speed w/ LED Readout
- Carbide Blade Guides
- Manual Blade Tension
- Adjustable Feed Rate
- Adjustable Cutting Pressure
- Coolant System - Flood w/ Wash-Down Hose
- Blade Brush
- Broken Blade Function
- Out-of-Stock Function
- Safety Guards
- 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
- 85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
- Manufacturer
- Specifications
- Options/Accessories
- Top Clamp - Reduced Capacity Main Vise
- Top Clamp - Reduced Capacity Feed Vise
- Vise - 3rd on Feed
- Full Width Discharge Plate
- 60° Miter Capability (Manual Cut Only)
- Light Clamping Pressure
- Laser Light System
- Air Powered Blade Tension
- Spray Mist Lubrication
- Single-Phase Voltage
- 5' Idle Roller Stock Table
- 10' Idle Roller Stock Table
- Custom Freight

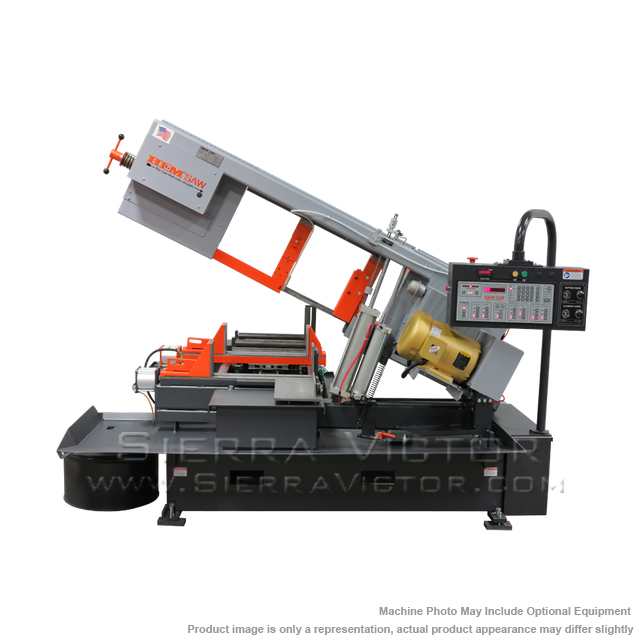

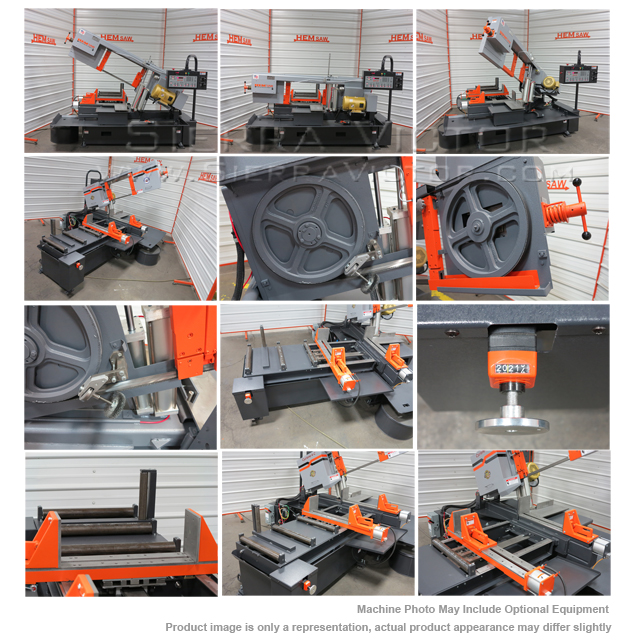

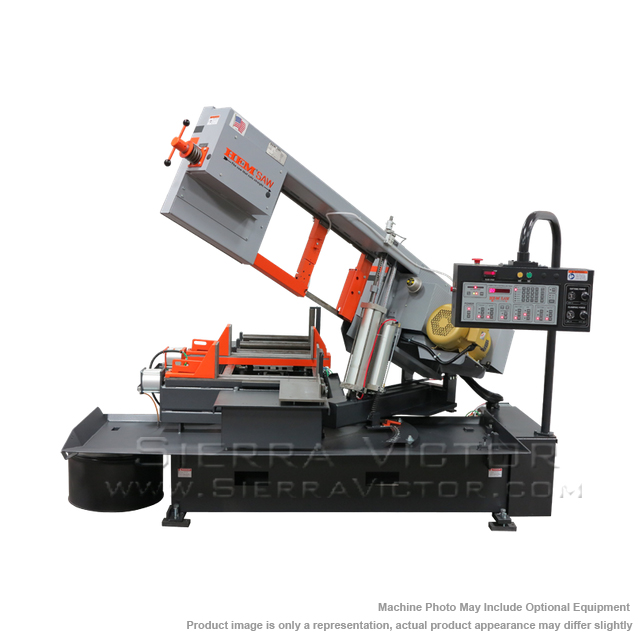

HE&M 22 x 16 inch Horizontal Miter Bandsaw CYCLONE A-C
ITEM: 22" x 16" Horizontal Miter Bandsaw
MANUFACTURER: HE&M
MODEL: CYCLONE SERIES
PART# CYCLONE A-C
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Miter
Position:
Horizontal
Metalworking
Saw Capacity:
22" x 16"
Capacity |
0-22" W x 0-16" H |
Bar-feed |
0-24" (Stroke Air - Multiple Index) |
Motor |
7.5 HP |
Hydraulic Motor |
N/A |
Electrical Motor Requirement |
220V/3PH or 440V/3PH (This is Not a Dual Voltage Machine) |
Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) |
85 PSI, 4-6 CFM |
Operation Type |
Automatic |
Power Source |
Air |
Blade Type |
Bandsaw |
Blade Size |
16' 0" L x 1.25" H x .042" |
Cantilever |
— |
Bandsaw Blade Speed |
N/A |
Bundle Cut? |
Yes |
Weight |
N/A |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
