- Description
- The ABS-105 is a benchtop band saw with the ability to cut miters up to 45ᵒ in one direction in the horizontal position. A two-speed motor powers a ¼” blade and the saw operates in semi-automatic mode or manual pull-down and has a hard-stop to cut multiple same-length parts.
- One-Way 45° Miter
- Vise - Manual
- Manual Head Lift
- Manual Miter
- Adjustable Light to Heavy Cutting Pressure
- Easy Blade Tensioning
- Emergency Stop
- Adjustable 19.6" Stop
- Dry Cutting
- 2-Speed Blade Speed
- 115V Electrical Motor Requirement
- 1.3 HP Motor - 8.9 Amps
- Manufacturer
- Specifications
- Options/Accessories
- Jobby Stand
- Custom Freight

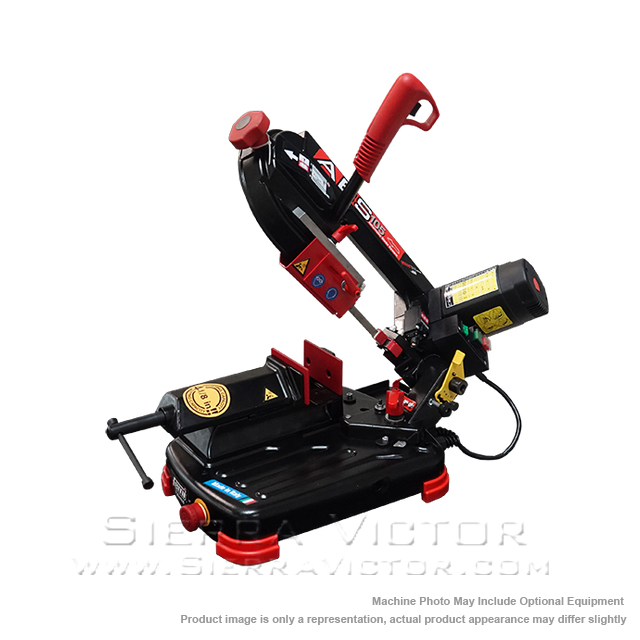

HE&M 4 inch Semi-Automatic Utility Bandsaw ABS-105
STANDARD EQUIPMENT:
ITEM: 4" Semi-Automatic Utility Bandsaw
MANUFACTURER: HE&M
MODEL: ABS-105
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Utility
Control:
Semi-Automatic
Metalworking
Saw Capacity:
4"+
Capacity |
3.9" W x 3.3" H |
Square Capacity |
3.3" (Square) |
Round Capacity |
4.1" (Diameter) |
Blade Size |
4' 4" L x .5" H x .025" |
Operation |
Semi-Automatic |
Power Source |
Electric |
Motor |
1.3 HP |
Electrics |
115V Electrical Motor Requirement |
Bundle Cut |
No |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
