- Description
- The 260 is a double-mitering band saw cutting 45° in both directions, up to 60° left miter, includes an adjustable hard-stop to cut multiple same-length parts, and has a built-in flood coolant system. The control is connected with a 40” umbilical cord with two blade speeds.

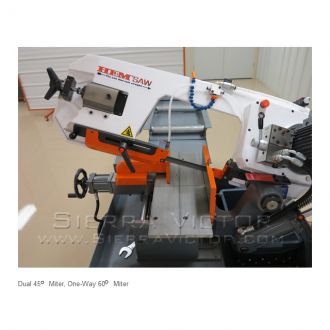

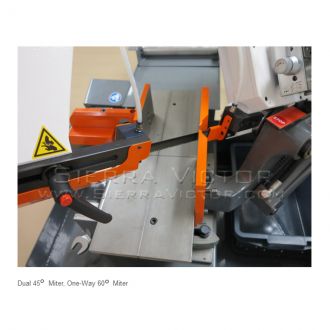

- Dual 45° Miter
- One-Way 60° Miter

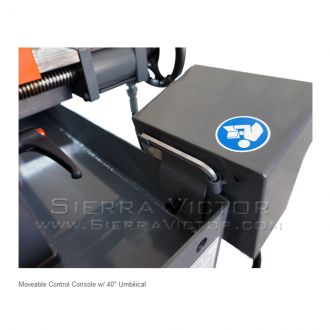

- Control Console - Moveable w/ 40" Umbilical
- Patented Hydraulic System
- Adjustable Feed Rate & Cutting Pressure

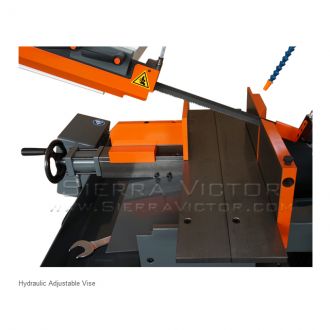

- Vise - Hydraulic Adjustable
- Rugged 3/16" Steel Base
- Miter Scale
- Heavy-Duty Sealed Pivot Bearing Point
- Full Capacity Cutting Surface

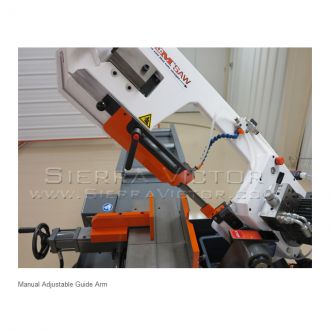

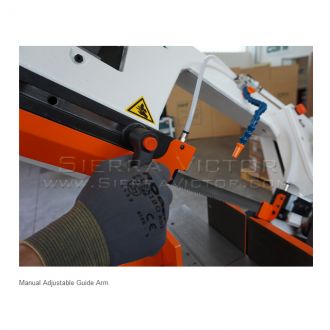

- Guide Arm - Manual Adjustment

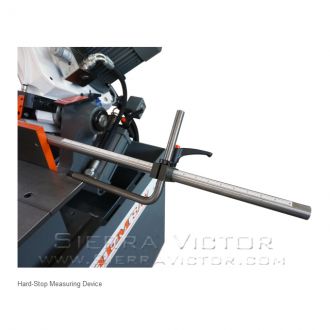

- Hard-Stop Measuring Device

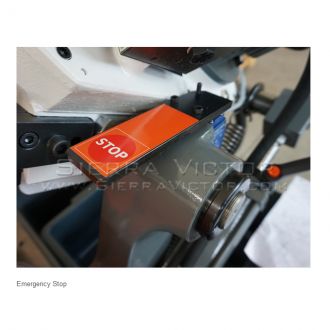

- Emergency Stop

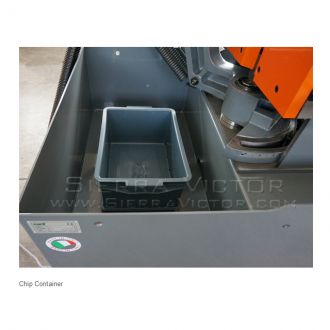

- Large Chip Container

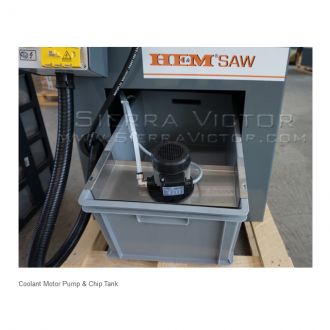

- Coolant System - Flood
- 2-Speed Blade Speed
- 220V/3PH Electrical Motor Requirement - 6.8 Amps
- Manufacturer
- Specifications
- Options/Accessories

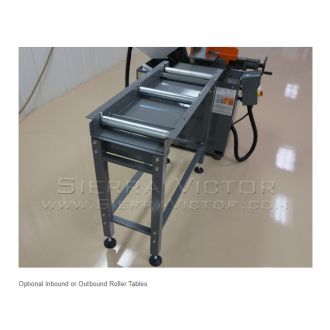

- Inbound or Outbound Roller Tables
- Roller Table Extension
- Custom Freight

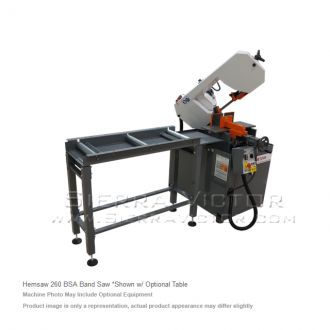

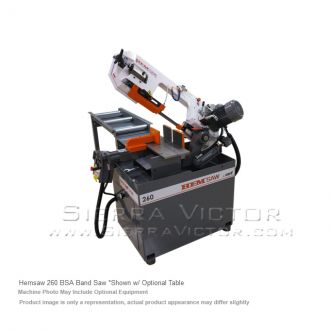

HE&M 8.7 inch Semi-Automatic Double Miter Bandsaw
STANDARD EQUIPMENT:
ITEM: 8.7" Semi-Automatic Double Miter Bandsaw
MANUFACTURER: HE&M
MODEL: 260BSA
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Dual Miter
Control:
Semi-Automatic
Metalworking
Saw Capacity:
8"+
Rectangular Capacity |
10.2" W x 5.9" H |
Square Capacity |
5.9" (Square) |
Round Capacity |
8.7" (Diameter) |
Bundle Cut |
No |
Power Source |
Electric |
Blade |
8' 0" L x 1" H x .035" |
Operation Type |
Semi-Automatic |
Motor |
1.8 HP |
Electrical Motor Requirement |
220V/3PH - 6.8 Amps |
Weight |
750 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
