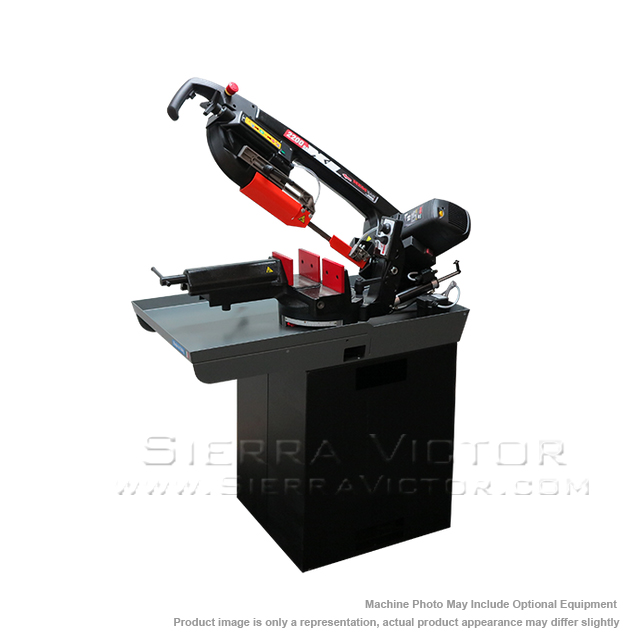

- The 2200DA-XL band saw comes mounted on a base and includes a 4-gallon cutting fluid system. It will cut miter angles up to 60° in one direction, has automatic arm down feed, a variable–speed motor, and ¾” wide blade. A hard-stop is included for cutting multiple same-length parts.
- One-Way 60° Miter

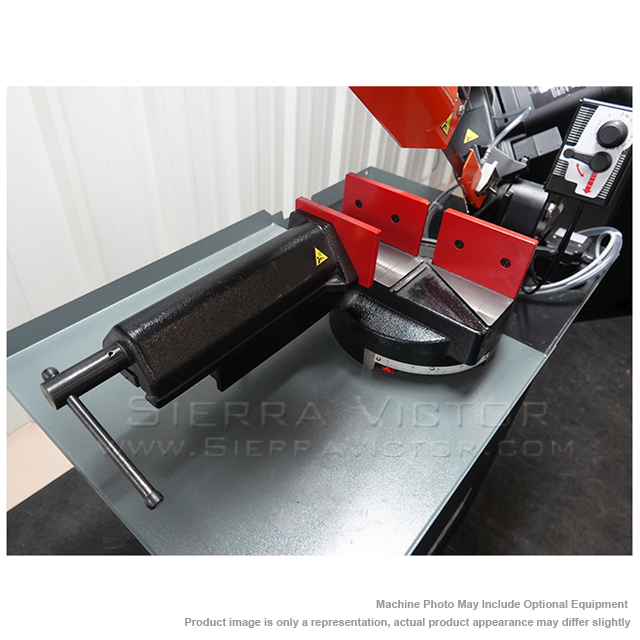

- Vise - Manual Quick-Locking

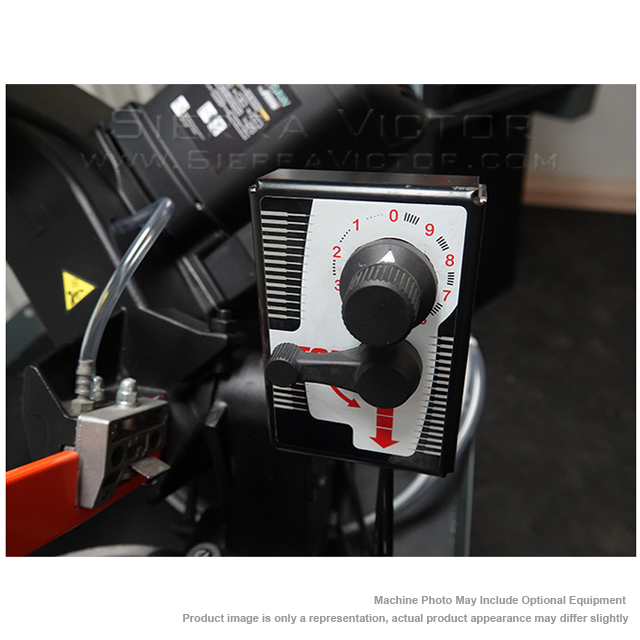

- Controlled Hydraulic Assist Arm Down Feed
- Manual Arm Miter

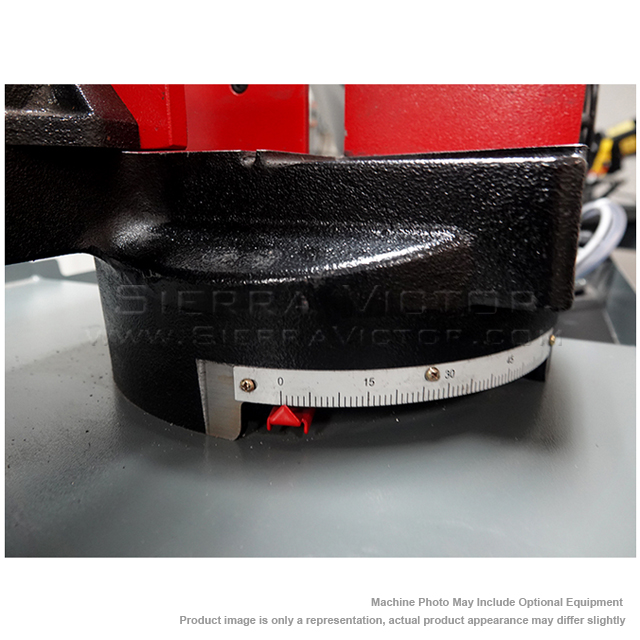

- Easy to Read Arm Miter Gauge

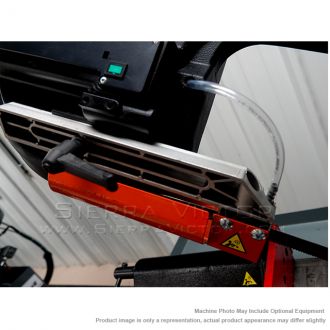

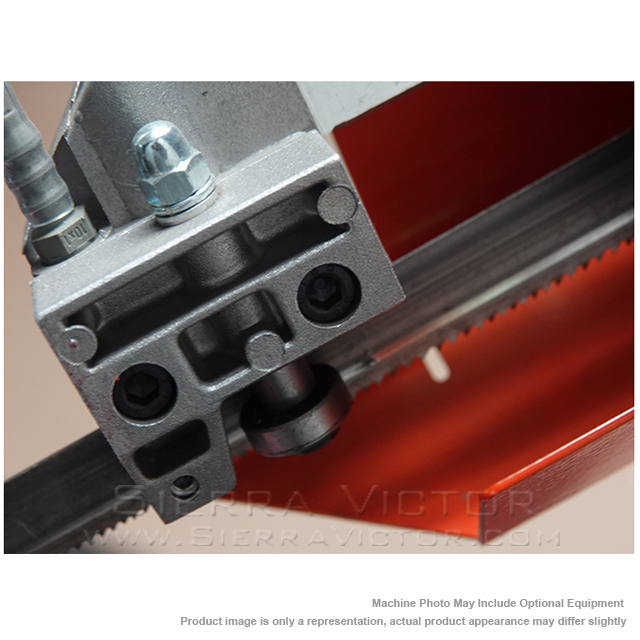

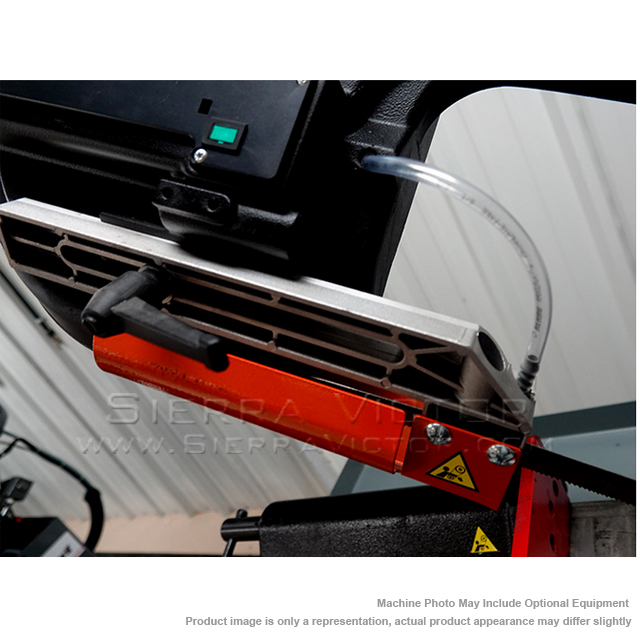

- Adjustable Blade Guide
- Blade Tension w/ Light Indicator
- Adjustable 19.6" Stop
- Coolant System - 4 Gallon Flood
- Price Includes Base

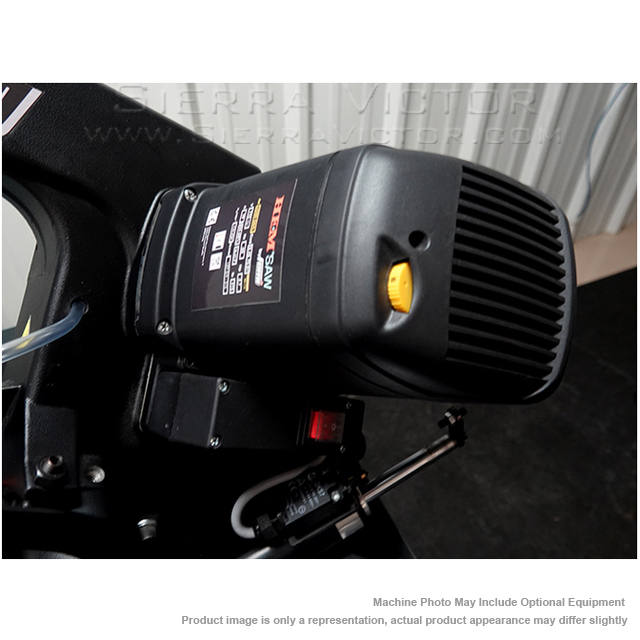

- 120V Single Phase - Variable Speed Motor
- Manufacturer
- Specifications
- Custom Freight
HE&M 5.4 inch Utility Bandsaw 2200DA-XL
STANDARD EQUIPMENT:
ITEM: 5.4" Utility Bandsaw
MANUFACTURER: HE&M
MODEL: 2200DA-XL
Manufacturer:
HE&M
Machine Type
Machine Category:
Bandsaws
Machine Sub-Category:
Utility
Metalworking
Saw Capacity:
6"+
Rectangular Capacity |
5.4" W x 7.4" H |
Square Capacity |
5.4" (Square) |
Round Capacity |
6.9" (Diameter) |
Blade |
7’0-1/4" x .75" x .035" |
Power Source |
Electric |
Motor |
2.7 HP |
Operation |
Semi Automatic |
Motor |
Variable Speed Motor (120V Single) |
Bundle Cut |
No |
Weight |
310 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
