- Description
- Taiwan Machine
- ISO 9001 certified
- NC-control for bending angle adjustment
- LED degree indicator with automatic stop programming, to get as true reading of bending degree.
- Up to 50 jobs memory; each job program contains 9 steps
- Counter roller holder comes standard with quick adjustment
- This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
- 1-1/2 HP motor, 220VAC, Single Phase
- Quick tooling changes
- With deluxe stand
- One year warranty for parts
- Manufacturer
- Specifications
- Options/Accessories
- Each Die Set includes: 2 rolls, 1 former, and 1 ring
- Video

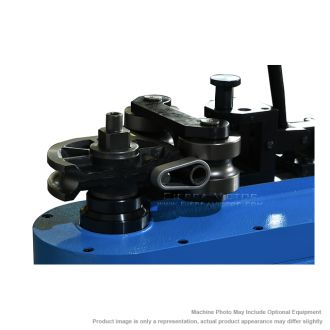

GMC 2 in. Hydraulic Rotary Draw Bender DB-60A
ITEM: 2" Hydraulic Rotary Draw Bender
MANUFACTURER: GMC
MODEL: DB-60A
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Benders - Tube & Pipe
Power Source:
Hydraulic
Metalworking
Bending Capacity:
2"
Capacity |
Minimum CLR |
1/2" |
Minimum OD |
1/4" |
|
Solid Rod, mild steel |
1" |
|
Round Tube, mild steel (wall thickness) |
2” (.125”) |
|
Round Pipe, mild steel, schedule 40 |
1-1/2" |
|
Round Tube, SS steel (wall thickness) |
1-1/2”(.125”) |
|
Round Pipe, SS steel, schedule 40 |
1-1/4" |
|
Aluminum round Tube (wall thickness) |
2” (3/16”) |
|
Maximum centerline Radius |
6-1/2” CRL |
|
LED programming |
50 job memory |
|
Main Motor |
1.5HP, 220V,1phase |
|
Machine Dimensions (LxWxH) |
27 x 9 x 51 in. |
|
Weight |
327 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM |
PRICE
|
DB-60A-1T |
1” Tube die set |
$CALL |
DB-60A-114T |
1-1/4” Tube die set |
$CALL |
DB-60A-112T |
1-1/2” Tube die set |
$CALL |
DB-60A-2T |
2” Tube die set |
$CALL |
DB-60A-1P |
1” Pipe die set |
$CALL |
DB-60A-114P |
1-1/4” Pipe die set |
$CALL |
DB-60A-112P |
1-1/2” Pipe die set |
$CALL |
