- Description
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Comes with one 10’ straight finger installed
- One set of assorted fingers 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs (boxed)
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
- *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
- *Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

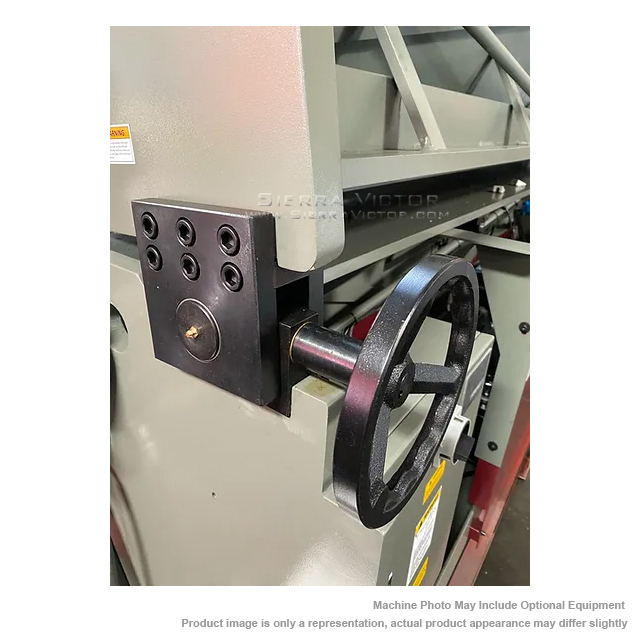

- 26" manual back gauge with one side handwheel operation

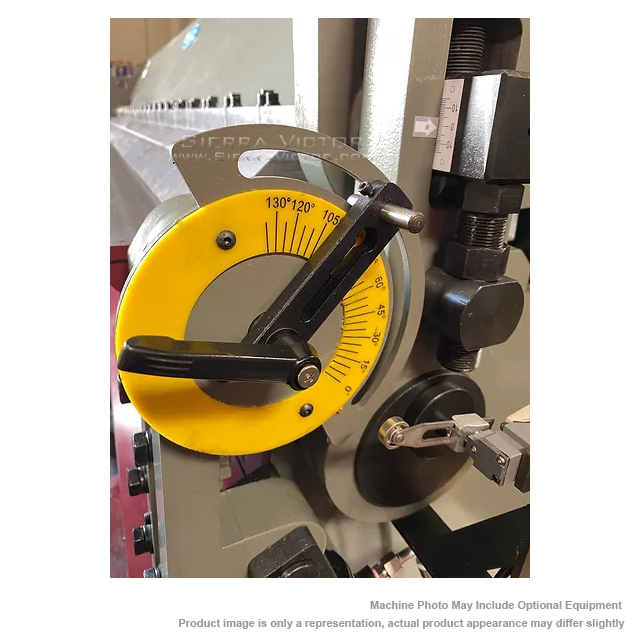

- Angle set up dial

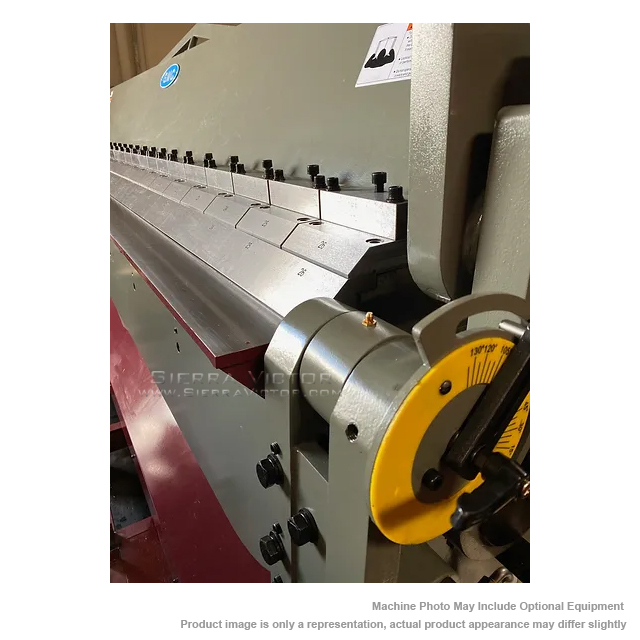

- Hydraulic clamping system

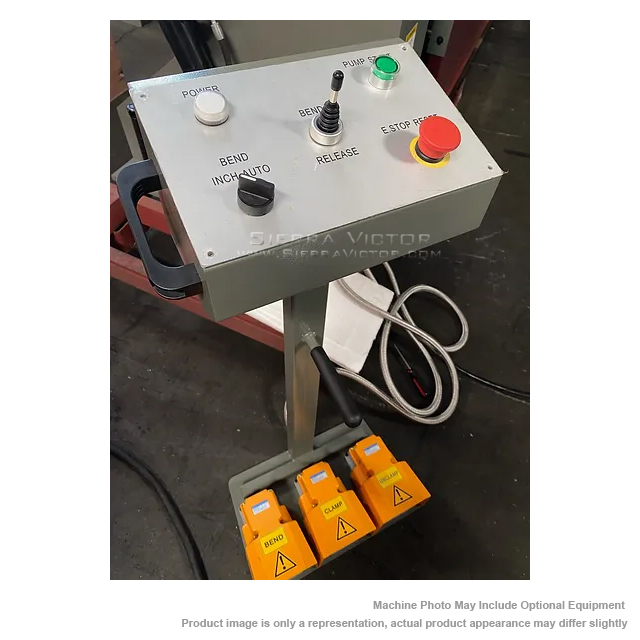

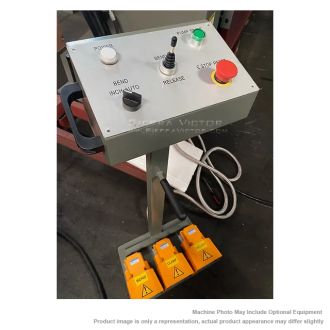

- Foot pedal control for hydraulic clamping and auto mode
- Manufacturer
- Specifications
- Options/Accessories
- One set of assorted fingers 3"/6pcs, 4"/4pcs, 5"/10pcs, 6"/6pcs extra - $2,995.00
- Safety fence for enclosure of the front side of the machine………... $1,150.00
- Safety light curtain …………………………………………………. $5,950.00
- 3" replacement finger ……………………………………………… $295.00
- 4" replacement finger ……………………………………………… $295.00
- 5" or 6" replacement finger ……………………………………….. $395.00

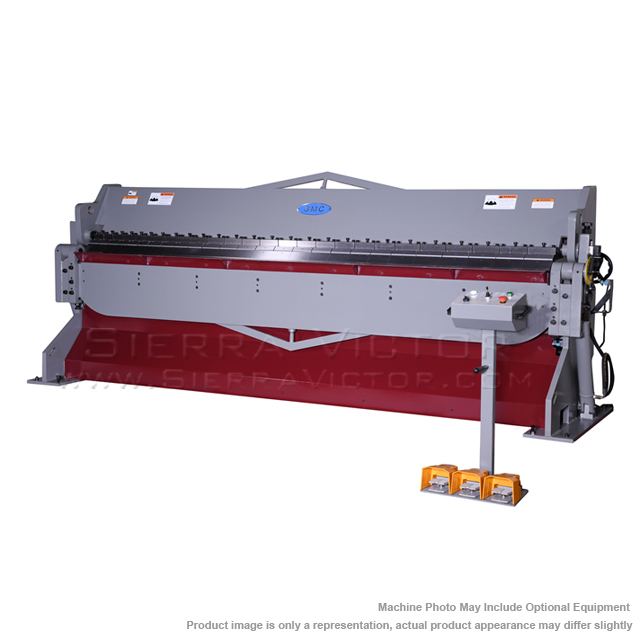

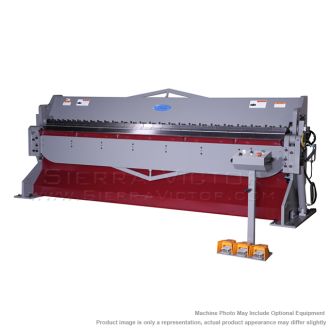

GMC 10 ft x 14 gauge Hydraulic Straight Apron Brake HSB-1014
STANDARD ITEMS:
ITEM: 10 ft x 14 gauge Hydraulic Straight Apron Brake
MANUFACTURER: GMC
MODEL: HSB-1014
Manufacturer:
GMC Machine Tools
Machine Type
Machine Category:
Brakes - Straight/Hand
Power Source:
Hydraulic
Material Type:
Metal
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
16 ga
Bending Capacity |
Mild Steel (hot roll) 60K PSI |
10 ft x 14 ga |
Stainless Steel tensile 85K PSI |
10 ft x 16 ga |
|
Soft Aluminum tensile 28K PSI |
10 ft x 10 ga |
|
Minimum material thickness |
26 ga |
|
Open hem max thickness x 10 ft |
22 ga |
|
Close hem max thickness x 10 ft |
28 ga |
|
Straight Finger Length |
10 ft x 1 in. |
|
Bending Degree |
135° |
|
Max. box and pan depth with Optional sort of fingers |
4 in. |
|
Large beam opening |
3 in. |
|
Manual back gauge |
26 in. |
|
Hydraulic Oil |
Shell #68 or equivalent |
|
Oil tank Gal. |
17 Gal |
|
Main motor |
5 HP, 220/440v, 3 Phase |
|
Amperage Draw |
220v/20A, 440v/10A |
|
Machine weight |
6,850 lbs. |
|
Shipping weight |
6,950 lbs. |
|
Machine dimensions LWH |
142 x 46 x 66 in. |
|
Shipping dimensions LWH |
153 x 41 x 67 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
